Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 31-45942 Pm Mini Wiring Manual Appelez-nous -
1 49-60152 Manual-use & Care Appelez-nous -
6 WR12X10342 Handle Soft Touch Insert Appelez-nous -
11 WR38X10227 Recess Trim Flat Wh Appelez-nous -
11 WR38X10245 Trim Recess Wh Appelez-nous -
12 WR02X10649 Stop Door Wh Appelez-nous -
14 WR24X10065 Gasket Door Fz Wh Appelez-nous -
15 WR02X10638 Cam Closure Fz Wh Appelez-nous -
23 WR71X10355 Module Shelf Fz Fixed Appelez-nous -
31 WR17X10810 Grille Recess Wh Appelez-nous -
36 WR01F01784 Solenoid Asm   (Replaces: WR62X10020) Special Order $ 80.09

45 WR2X8818 Retainer Recess Door Appelez-nous -
46 WR02X10970 Pad Actuator Wh Appelez-nous -
56 WG03A03944 Light Dispenser   (Replaces: WR02X10675) In-Stock Immediately $ 60.67

58 WR17X11081 Housing Shield Disp Wh Appelez-nous -
61 WR2X9561 Socket Lamp E12 Appelez-nous -
62 WR01L01914 Door Recess Asm   (Replaces: WR17X3093) Special Order $ 58.69

63 WG03A00047 Spring Recess Door   (Replaces: WR02X10585) In-Stock Immediately $ 3.57

67 WR01L00935 Crank Door Recess   (Replaces: WR17X10706) Special Order $ 11.44

69 WR17X10890 Funnel Ice Disp Wh Appelez-nous -
72 WR23X10171 Switch Appelez-nous -
74 WR02X10584 Spring Funnel Appelez-nous -
80 WG03A00026 Union Connector   (Replaces: WR02X10471) Special Order $ 15.72

90 WG03F00046 Board Asm Disp   (Replaces: WR55X10031) Special Order $ 194.65

91 WR55X10137 Control Disp Asm Wh Appelez-nous -
122 WR71X10359 Module Support Fz Appelez-nous -
123 WR71X10358 Module Support Fz Appelez-nous -
124 WR21X10024 Basket Wire Tiltout Fz Appelez-nous -
125 WR21X10025 Basket Wire Tiltout Fz Appelez-nous -
152 WR01A01241 Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038) Special Order $ 3.57

156 WR13X10130 Hinge Tiltout Fz Lh Appelez-nous -
157 WR13X10131 Hinge Tiltout Fz Rh Appelez-nous -
900 WR78X10525 Door Foam Asm Fz Wh Appelez-nous -
903 WR01X10208 Thimble Door Btm Fz Wh Appelez-nous -
904 WR1X2134 Scr 10-32 Appelez-nous -
911 WR01X10207 Thimble Door Top Wh Appelez-nous -
1021 WR17X10959 Brace Handle Lower Fz Appelez-nous -
1022 WR17X4235 Cap Trim Btm Fz Wh Appelez-nous -
1024 WR17X10972 Trim Door Btm Fz Wh Appelez-nous -
1025 WR12X10457 Handle Asm Trim Fz Wh Appelez-nous -
1026 WR17X10991 Trim Door Side Fz Wh Appelez-nous -
1027 WR17X10974 Trim Door Top Fz Wh Appelez-nous -
1040 WR17X10232 Brace Handle Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

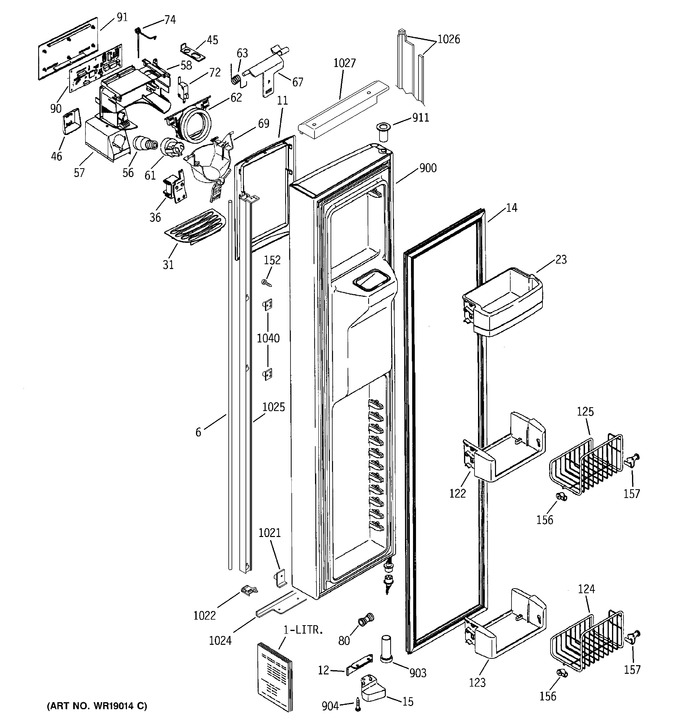

Diagram for GIG21IEMAFWW
