SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board

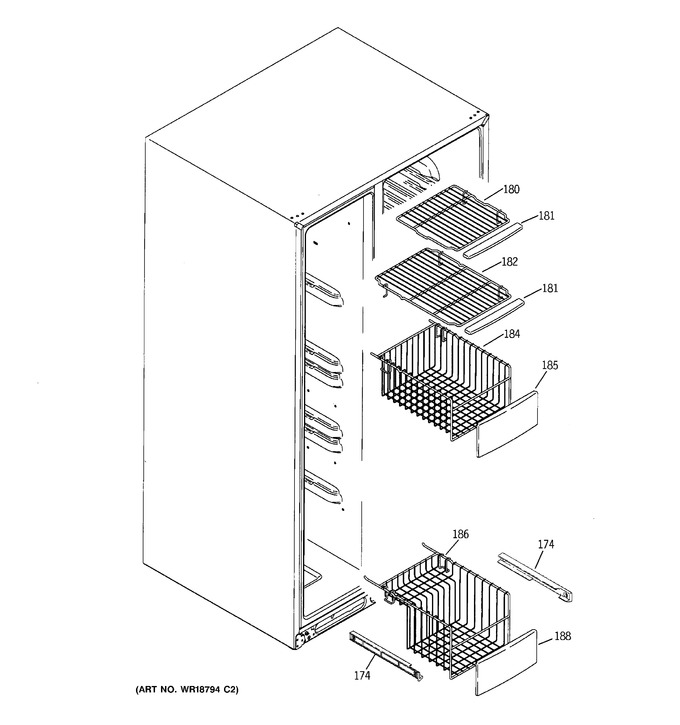

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
174	WR72X10061		Support Slide Basket Rh		Appelez-nous	-
174	WR72X10062		Support Slide Basket Lh		Appelez-nous	-
180	WR71X10295		Shelf Fixed Fz		Appelez-nous	-
181	WR38X10214		Trim Shelf Fz		Appelez-nous	-
182	WR71X10292		Shelf Slideout Fz		Appelez-nous	-
184	WR21X10045		Basket Wire Fz		Appelez-nous	-
185	WR21X10047		Handle Basket		Appelez-nous	-
186	WR21X10039		Basket Wire Fz		Appelez-nous	-
188	WR21X10048		Handle Basket		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
