SELECT A DIAGRAM

1 - Freezer Door

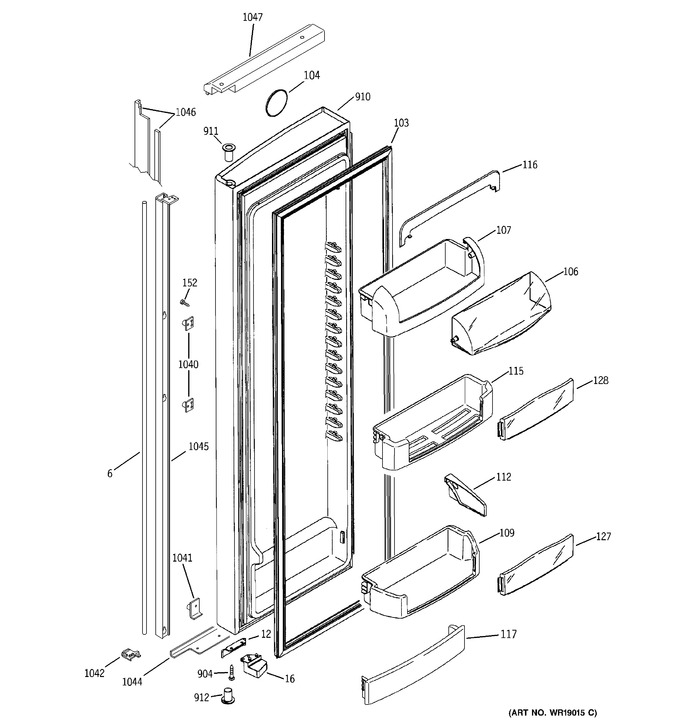

2 - Fresh Food Door


3 - Freezer Section


4 - Evaporator Instructions


5 - Freezer Shelves


6 - Ice Maker & Dispenser


7 - Fresh Food Section


8 - Fresh Food Shelves


9 - Sealed System & Mother Board


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
6	WR12X10342		Handle Soft Touch Insert		Appelez-nous	-
12	WR02X10649		Stop Door Wh		Appelez-nous	-
16	WR02X10637		Cam Closure Ff Wh		Appelez-nous	-
103	WR24X10064		Gasket Door Ff Wh		Appelez-nous	-
104	WR04X10108		Nameplate Ge		Appelez-nous	-
106	WR22X10022		Door Dairy Clear		Appelez-nous	-
107	WR22X10021		Compartment Dairy		Appelez-nous	-
109	WR71X10244		Module Shelf Ff		Appelez-nous	-
112	WR02X10639		Snugger		Appelez-nous	-
115	WR71X10331		Module Shelf Ff		Appelez-nous	-
116	WR22X10023		Trim Dairy Compartment		Appelez-nous	-
117	WR71X10330		Retainer Bar Ff		Appelez-nous	-
127	WR01L04630		Insert Module   (Replaces: WR71X10289)			Immediately	$ 61.39
128	WR01L00085		Module Shelf Insert   (Replaces: WR71X10380)			Immediately	$ 10.63
152	WR01A01241		Scr 8-18 Ab Fltr 5/8 S   (Replaces: WR01X10038)				$ 3.57
904	WR1X2134		Scr 10-32		Appelez-nous	-
910	WR78X10524		Door Foam Asm Ff Wh		Appelez-nous	-
911	WR01X10207		Thimble Door Top Wh		Appelez-nous	-
912	WR01X10206		Thimble Door Btm Wh		Appelez-nous	-
1040	WR17X10232		Brace Handle		Appelez-nous	-
1041	WR17X10960		Brace Handle Lower Ff		Appelez-nous	-
1042	WR17X4234		Cap Trim Btm Ff Wh		Appelez-nous	-
1044	WR17X10973		Trim Door Btm Ff Wh		Appelez-nous	-
1045	WR12X10458		Handle Asm Trim Ff Wh		Appelez-nous	-
1046	WR17X10992		Trim Door Side Ff Wh		Appelez-nous	-
1047	WR17X10975		Trim Door Top Ff Wh		Appelez-nous	-
