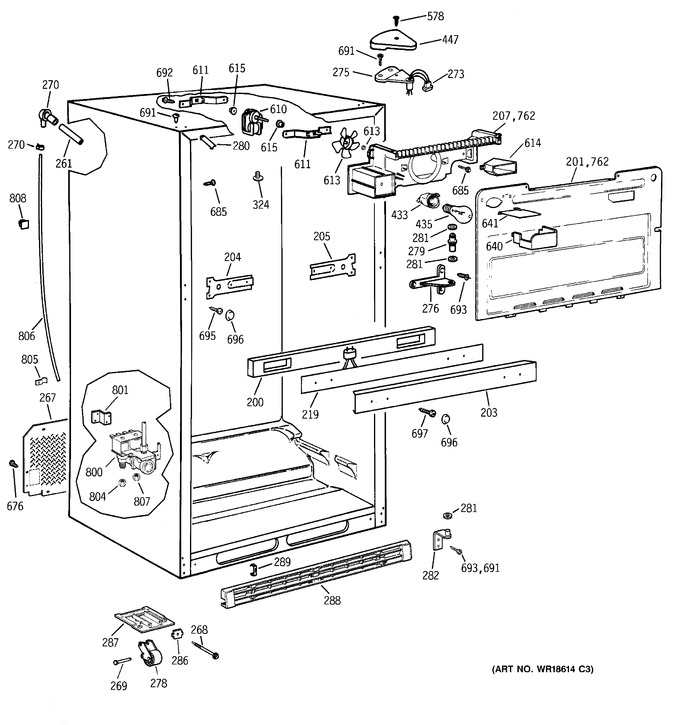

View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Freezer Door
2 - Dispenser
3 - Fresh Food Door
4 - Ice Bucket
5 - Cabinet Parts
6 - Shelf Parts
7 - Compartment Separator Parts
8 - Unit Parts
9 - Icemaker Wr30x10001
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 200 | WR14X352 | Foam Strip Mullion |
|
- | |||||
| 201 | WR17X2254 | Cover Evap Asm |
|
- | |||||
| 203 | WR17X10639 | Mullion Crosspiece Fin |
|
- | |||||
| 204 | WR2X7823 | Bracket Mullion Lh |
|
- | |||||
| 205 | WR2X7822 | Bracket Mullion Rh |
|
- | |||||
| 207 | WR17X3609 | Plenum |
|
- | |||||
| 219 | WR51X356 | Heater Mullion |
|
- | |||||
| 261 | WR2X6087 | Tube Water Fill |
|
- | |||||
| 267 | WR82X10046 | Cover Access Asm |
|
- | |||||
| 268 | WR1X1816 | Screw Mobility |
|
- | |||||
| 269 | WR1X1803 | Key Pivot |
|
- | |||||
| 270 | WR1X5223 | Clamp Hose |
|
- | |||||
| 270 | WR2X9153 | Grommet Water Fill |
|
- | |||||
| 273 | WR49X323 | Harness Door Fz |
|
- | |||||
| 275 | WR13X611 | Hinge Top Pin Asm |
|
- | |||||
| 276 | WR13X10076 | Hinge Center Asm Bq |
|
- | |||||
| 278 | WR2X8842 | Mobility Front Asm |
|
- | |||||
| 279 | WR13X770 | Pin Hinge Center |
|
- | |||||
| 280 | WR02X10460 | Cap Corner Oc Bq |
|
- | |||||
| 281 | WG03L08792 | Washer Hinge Brown (Replaces: WR01X10146) |
|
Immediately | $ 3.57 | ||||
| 282 | WR13X10078 | Hinge Btm & Pin Asm |
|
- | |||||
| 286 | WR1X1815 | Leveling Nut |
|
- | |||||
| 287 | WR2X9168 | Gusset |
|
- | |||||
| 288 | WR74X10044 | Grille Base Asm |
|
- | |||||
| 289 | WR2X7646 | Clip Base Grille |
|
- | |||||
| 324 | WR2X7069 | Plug Button Lg Wh |
|
- | |||||
| 433 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 447 | WR02X10468 | Cover Hinge |
|
- | |||||
| 578 | WZ02X0503 | Scr 8-32 Ma Tr 13/32 |
|
- | |||||
| 610 | GEFM | Motor Evap Fan (Replaces: WR60X190) |
|
Immediately | $ 106.65 | ||||
| 611 | WR2X7664 | Bracket Evap Fan |
|
- | |||||
| 613 | WR2X3198 | Ring Compression |
|
- | |||||
| 613 | WR60X123 | Blade Evap Fan |
|
- | |||||
| 614 | WR2X7780 | Duct Disp. Air |
|
- | |||||
| 615 | WR2X7391 | Grommet Evap Fan |
|
- | |||||
| 640 | WR2X9017 | Shield Light Fz |
|
- | |||||
| 641 | WR2X8816 | Heat Shield |
|
- | |||||
| 676 | WZ04X0263 | Scr 10-16 Abh Ws 1/2s |
|
- | |||||
| 685 | WR1X1804 | Scr 8-18 Ab Hxw 3/4 Wh |
|
- | |||||
| 691 | WR01X10169 | Scr 12-24tt Bht .700 Sca |
|
- | |||||
| 692 | WZ04X0416 | Screw |
|
- | |||||
| 693 | WR01X10171 | Scr 12-24 Tt Oht .009sca |
|
- | |||||
| 695 | WR01X10060 | Scr 12-24tt Bht .700 Sc |
|
- | |||||
| 696 | WR02X10458 | Cover Screw |
|
- | |||||
| 697 | WR01X10170 | Scr 12-24tt Bht .900 Sc |
|
- | |||||
| 762 | WR14X313 | Foam Strip |
|
- | |||||
| 800 | WR57X119 | Water Valve Asm |
|
- | |||||
| 801 | WR2X9484 | Brkt Valve Water |
|
- | |||||
| 804 | WG03A00093 | Nut Sleeve 1/4 (Replaces: WR57X57) |
|
$ 11.44 | |||||
| 805 | WR2X3736 | Clamp Tube |
|
- | |||||
| 806 | WG04F01219 | Water Line 1/4 (Replaces: WR17X1948) |
|
Immediately | $ 22.87 | ||||
| 807 | WR2X4048 | Nut Sleeve 5/16" |
|
- | |||||
| 808 | WR2X4039 | Adhesive Clip |
|
- |
