View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM
1 - Freezer Door
2 - Dispenser
3 - Fresh Food Door
4 - Ice Bucket
5 - Cabinet Parts
6 - Shelf Parts
7 - Compartment Separator Parts
8 - Unit Parts
9 - Icemaker Wr30x10001
SELECT A DIAGRAM
New Model Search:

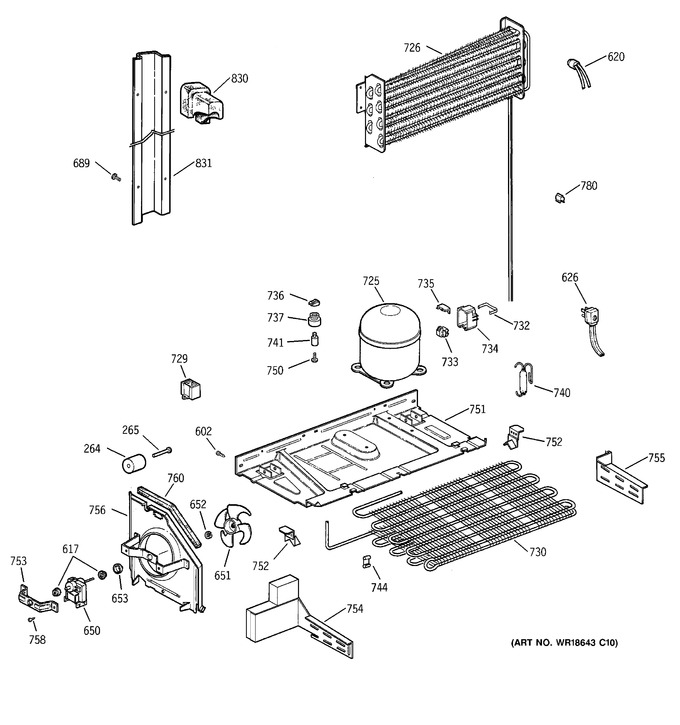

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 264 | WG03A00503 | Wheel Mobility (Replaces: WR02X10137) |
|
$ 17.15 | |||||
| 265 | WG03A00340 | Axle Wheel (Replaces: WR01X10039) |
|
$ 8.58 | |||||
| 602 | WR1X1591 | Scr 1/4-14 X 3/4 |
|
- | |||||
| 617 | WG03F00305 | Grommet Cond Fan (Replaces: WR02X10098) |
|
Immediately | $ 6.52 | ||||
| 620 | WR50X131 | Thermostat Def |
|
- | |||||
| 626 | WR23X108 | Power Cord |
|
- | |||||
| 626 | WR1X5278 | Clamp Cable |
|
- | |||||
| 650 | WR60X10020 | Motor Cond. Fan |
|
- | |||||
| 651 | WR60X10034 | Blade Cond Fan Asm |
|
- | |||||
| 652 | WR02X10323 | Ring Compression |
|
- | |||||
| 653 | WR01F00744 | Cap Dust (Replaces: WR02X10322) |
|
$ 37.17 | |||||
| 689 | WZ05X0246 | Scr 8-32 Spec Drill Pt |
|
- | |||||
| 725 | WR87X475 | Compressor & Tubes Asm |
|
- | |||||
| 726 | WR85X10005 | Low Side Asm |
|
- | |||||
| 729 | WR01F02043 | Capacitor (Replaces: WR62X79) |
|
Immediately | $ 15.45 | ||||
| 730 | WR84X10010 | Cond Asm Final Recip |
|
- | |||||
| 732 | WR2X7226 | Clamp-cover |
|
- | |||||
| 733 | IC102 | Relay (ptcr) (Replaces: WR7X240) |
|
Immediately | $ 16.14 | ||||
| 734 | WR2X7834 | Cover Relay |
|
- | |||||
| 735 | WR8X168 | Overload |
|
- | |||||
| 736 | WR2X8203 | Clip Compressor Mount |
|
- | |||||
| 737 | WR2X7238 | Grommet Comp Mtg |
|
- | |||||
| 740 | WG03A03157 | Dryer Bifurcated Xh9 (Replaces: WR86X96) |
|
Immediately | $ 138.06 | ||||
| 741 | WR1X1779 | Stud Mtg Compr |
|
- | |||||
| 744 | WR2X9209 | Clip Cond (dl) |
|
- | |||||
| 750 | WR1X1786 | Scr 10-32 Tr T 1/2 |
|
- | |||||
| 751 | WR17X10512 | Baseplate High Side |
|
- | |||||
| 752 | WR17X10317 | Support High Side |
|
- | |||||
| 753 | WR02X10321 | Bracket Evap Fan |
|
- | |||||
| 754 | WR17X10316 | Baffle Asm Lh |
|
- | |||||
| 755 | WR17X10319 | Baffle Cond Rh |
|
- | |||||
| 756 | WR17X10425 | Cond Fan Hsg&bracket Asm |
|
- | |||||
| 758 | WD2X323 | Screw 8-32 X 3/8 Sph |
|
- | |||||
| 760 | WR14X10008 | Foam Strip Se Adh |
|
- | |||||
| 780 | WR2X9501 | Clip Tube |
|
- | |||||
| 830 | WR82X360 | Foam Plug S.l. |
|
- | |||||
| 831 | WR17X10543 | Cover Suction Line |
|
- |
