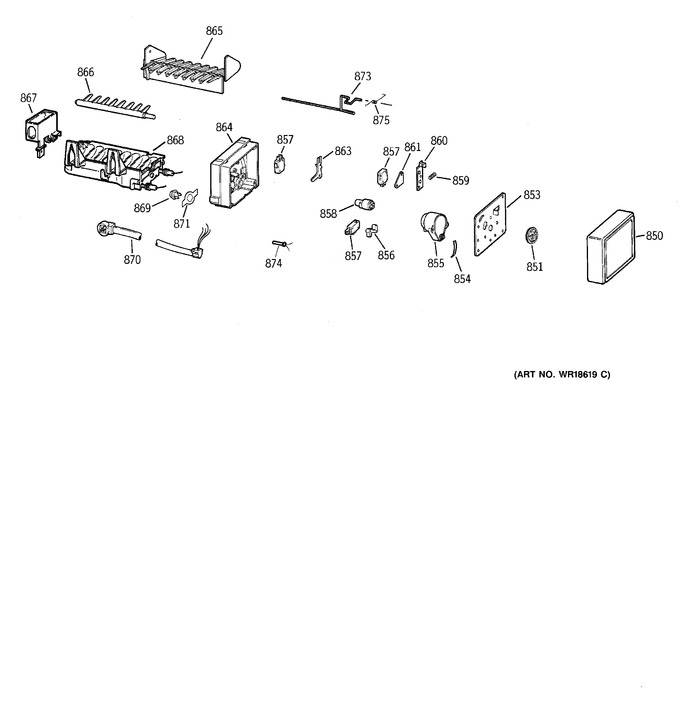

6 - Shelf Parts
7 - Compartment Separator Parts
8 - Unit Parts
9 - Icemaker Wr30x10001
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 850 | WR29X193 | Cover Im |
|
- | |||||
| 851 | WR29X5110 | Gear |
|
- | |||||
| 853 | WR29X5111 | Plate Mounting |
|
- | |||||
| 854 | WR29X10002 | Spring Beam |
|
- | |||||
| 855 | WG03F05150 | Motor (Replaces: WR29X10001) |
|
Immediately | $ 211.36 | ||||
| 856 | WR29X5118 | Spacer Holding Switch |
|
- | |||||
| 857 | WR29X5171 | Switch Im |
|
- | |||||
| 858 | WR29X5119 | Cam |
|
- | |||||
| 859 | WR29X5115 | Spring |
|
- | |||||
| 860 | WR29X5114 | Plate Valve Switch |
|
- | |||||
| 861 | WR29X5117 | Insulator |
|
- | |||||
| 863 | WR29X5121 | Arm Lever |
|
- | |||||
| 864 | WR29X183 | Housing |
|
- | |||||
| 865 | WR29X10011 | Stripper Ice |
|
- | |||||
| 866 | WR29X5126 | Ejector |
|
- | |||||
| 867 | WR29X10012 | Bearing & Inlet |
|
- | |||||
| 868 | WR29X204 | Mold/heater Asm |
|
- | |||||
| 869 | WG03F02311 | Thermostat (Replaces: WR29X157) |
|
$ 57.24 | |||||
| 870 | WR29X186 | Wire Harness |
|
- | |||||
| 871 | WR29X158 | Clamp Thermostat |
|
- | |||||
| 873 | WR29X10013 | Arm Shut Off |
|
- | |||||
| 874 | WR29X185 | Thermal Cut-off |
|
- | |||||
| 875 | WR29X5130 | Spring Shut Off Arm |
|
- |
