SELECT A DIAGRAM

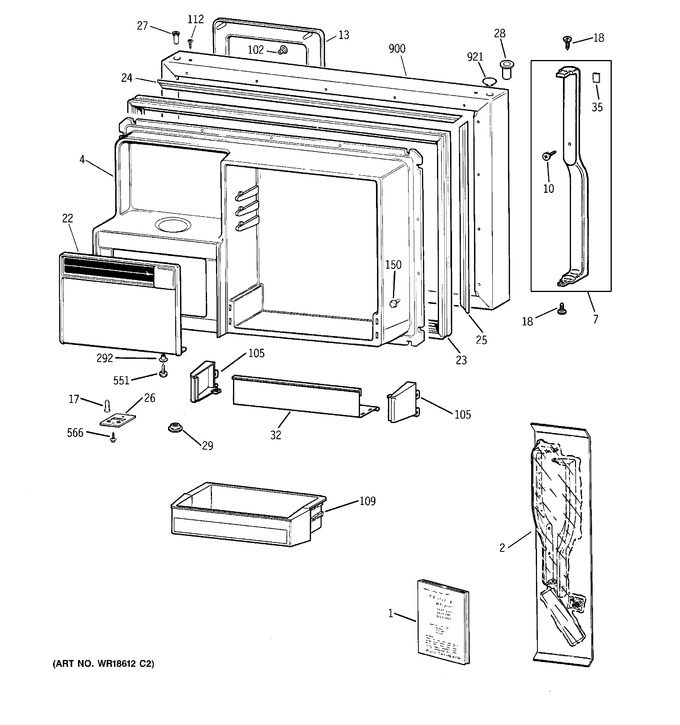

1 - Freezer Door


2 - Dispenser


3 - Fresh Food Door


4 - Ice Bucket


5 - Cabinet Parts


6 - Shelf Parts


7 - Compartment Separator Parts


8 - Unit Parts


9 - Icemaker Wr30x10001


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	49-60012		Pm Guide Owners		Appelez-nous	-
1	31-51233		Pm Mini Manual Wiring		Appelez-nous	-
2	WR12X10368		Pk Handle Large Asm		Appelez-nous	-
4	WR77X683		Door Inner Fz Dp		Appelez-nous	-
7	WR12X10369		Handle Asm Fz		Appelez-nous	-
10	WR1X2084		Screw		Appelez-nous	-
13	WR38X10189		Trim Recess Fz		Appelez-nous	-
17	WR2X9476		Thimble Door Disp Wh		Appelez-nous	-
18	WR1X1726		Scr 10-16 Ab 3/4 Ss		Appelez-nous	-
22	WR17X10332		Cover&insert Asm Recess		Appelez-nous	-
23	WR24X438		Gasket Door Fz Wh		Appelez-nous	-
24	WR17X2136		Retainer Strip H		Appelez-nous	-
25	WR17X2135		Retainer Strip V		Appelez-nous	-
26	WR2X7681		Stop Door		Appelez-nous	-
27	WR2X7781		Thimble Door Disp Wh		Appelez-nous	-
28	WR02X10111		Thimble Door Plastic		Appelez-nous	-
29	WR02X10462		Plug Button Foam Bq		Appelez-nous	-
32	WR71X10134		Shelf Fronts Fz		Appelez-nous	-
35	WR04X10075		Lens Nameplate		Appelez-nous	-
102	WR2X4990		Fastener Tubular		Appelez-nous	-
105	WR2X8699		Cap Shelf Front Lh		Appelez-nous	-
105	WR2X8700		Cap Shelf Front Rh		Appelez-nous	-
109	WR71X10087		Shelf Module Asm		Appelez-nous	-
112	WR02X10459		Plug Door Rvsbl Bq		Appelez-nous	-
150	WR1X1791		Scr 8-15 Spec		Appelez-nous	-
180	WR1X1966		Screw 6-32 Pl Ihw 3/8		Appelez-nous	-
292	WR1X1326		Grommet Scr		Appelez-nous	-
551	WZ04X0244		Scr 8-18 Ab Rndw 5/8 Ss		Appelez-nous	-
566	WR1X1728		Screw		Appelez-nous	-
900	WR78X10315		Door Foam Asm Fz Dp		Appelez-nous	-
921	WR02X10461		Plug Button Thimble Bq		Appelez-nous	-
1458	WB17X5073		Term Blk Asm-1 Pin(1458)		Appelez-nous	-
