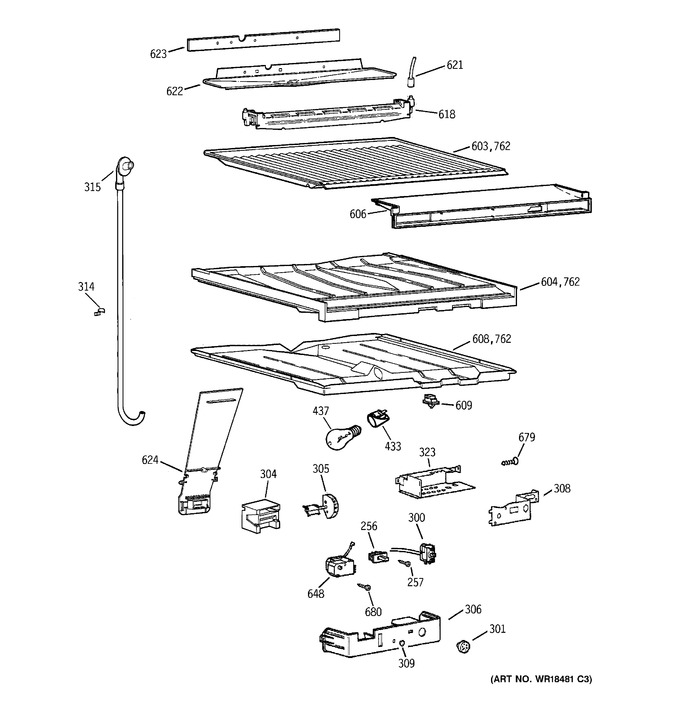

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
256	WR23X309		Switch Power Saver		Appelez-nous	-
257	WR1X1762		Scr 6-32 Ma Hxw 3/8		Appelez-nous	-
300	WG03L00275		Sleeve Vinyl   (Replaces: WR2X8344)				$ 30.98
301	WR2X8692		Knob Temp Cont		Appelez-nous	-
304	WR02X10469		Nozzle Foam		Appelez-nous	-
305	WR2X9298		Shaft/knob Damper		Appelez-nous	-
306	WR17X3196		Housing Control		Appelez-nous	-
308	WR2X7768		Bracket Control Hsg		Appelez-nous	-
309	WR2X7652		Plug Button		Appelez-nous	-
314	WR2X8503		Clamp Tube		Appelez-nous	-
315	WR02X10134		Tube Drain Asm		Appelez-nous	-
323	WR2X7767		Brkt Control Back		Appelez-nous	-
433	WR01F01775		Socket & Terminal Asm   (Replaces: WR2X9391)				$ 7.51
437	60A		Lamp 60w Appl		Appelez-nous	-
603	WR17X2138		Liner Btm Fz		Appelez-nous	-
604	WR17X2764		Insul Divider		Appelez-nous	-
606	WR17X2380		Front Liner Fz		Appelez-nous	-
608	WR17X10030		Liner Top Ff		Appelez-nous	-
609	WR23X193		Switch Light Wh		Appelez-nous	-
618	WR51X466		Def Htr Fuse Kit				$ 199.89
621	WR2X4495		Connector W/lead		Appelez-nous	-
622	WR17X2160		Trough Drain				$ 74.98
623	WR14X348		Gasket Trough		Appelez-nous	-
624	WR17X3934		Cover Ff Supply		Appelez-nous	-
648	WR9X520		Control Defrost		Appelez-nous	-
679	WZ06X0133		Screw Brkt. Evap. Fan		Appelez-nous	-
680	WR01X10123		Scr 6-19 Hi/lo Hxw 1/2 S		Appelez-nous	-
762	WR14X313		Foam Strip		Appelez-nous	-
