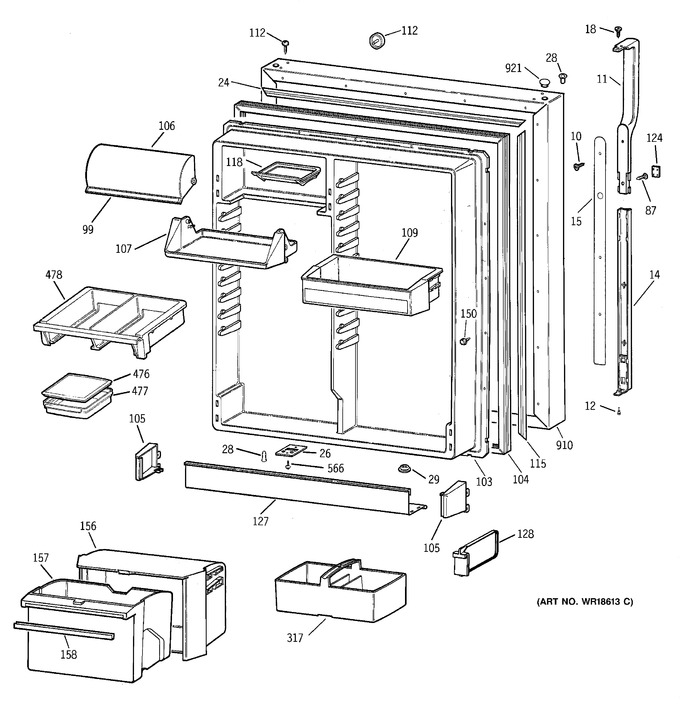

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 10 | WR1X2084 | Screw |
|
- | |||||
| 11 | WR12X10362 | Handle Door Asm Ff |
|
- | |||||
| 12 | WR01X10036 | Scr 10-14 Pl Pnp 3/4 Szn |
|
- | |||||
| 14 | WR12X10370 | Tail & Bracket Asm |
|
- | |||||
| 15 | WR12X10221 | Trim Handle Ff |
|
- | |||||
| 18 | WR1X1726 | Scr 10-16 Ab 3/4 Ss |
|
- | |||||
| 24 | WR17X2136 | Retainer Strip H |
|
- | |||||
| 26 | WR2X7681 | Stop Door |
|
- | |||||
| 28 | WR02X10111 | Thimble Door Plastic |
|
- | |||||
| 29 | WR02X10462 | Plug Button Foam Bq |
|
- | |||||
| 87 | WZ04X0241 | Scr 8-15 Ab Tr 1/2 Ss |
|
- | |||||
| 99 | WR38X10106 | Trim Bright Dairy Door |
|
- | |||||
| 103 | WR77X605 | Door Inner Ff |
|
- | |||||
| 104 | WR24X437 | Gasket Door Ff Wh |
|
- | |||||
| 105 | WR2X8699 | Cap Shelf Front Lh |
|
- | |||||
| 105 | WR2X8700 | Cap Shelf Front Rh |
|
- | |||||
| 106 | WR22X514 | Door Dairy (no Trim) |
|
- | |||||
| 107 | WR22X471 | Extension Dairy |
|
- | |||||
| 109 | WR71X10087 | Shelf Module Asm |
|
- | |||||
| 112 | WR02X10459 | Plug Door Rvsbl Bq |
|
- | |||||
| 115 | WR17X2137 | Retainer Strip V |
|
- | |||||
| 118 | WR19X5003 | Butter Dish |
|
- | |||||
| 124 | WR12X10321 | Plug Button Handle Bisqu |
|
- | |||||
| 127 | WR71X10084 | Shelf Front Ff Full |
|
- | |||||
| 128 | WR2X7971 | Snugger Module |
|
- | |||||
| 150 | WR1X1791 | Scr 8-15 Spec |
|
- | |||||
| 156 | WR32X1321 | Yoke Quick Store |
|
- | |||||
| 157 | WR32X1015 | Bin Quick Store |
|
- | |||||
| 158 | WR38X10136 | Trim Bright |
|
- | |||||
| 317 | WR02X10133 | Caddy Condiment |
|
- | |||||
| 476 | WR2X8520 | Lid Dish Snack |
|
- | |||||
| 477 | WR17X3327 | Dish Snack Tray Small |
|
- | |||||
| 478 | WR71X2316 | Module Quick Serve |
|
- | |||||
| 566 | WR1X1728 | Screw |
|
- | |||||
| 910 | WR78X10314 | Door Foam Asm Ff Dp |
|
- | |||||
| 921 | WR02X10461 | Plug Button Thimble Bq |
|
- |
