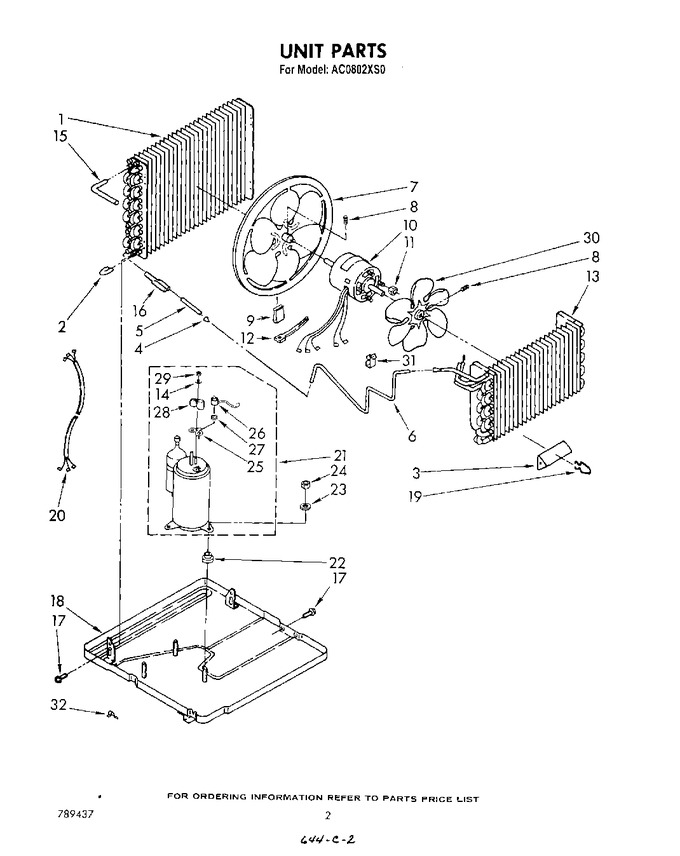

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1155786		Condenser		Appelez-nous	-
2	708532		Bend, Return (13)		Appelez-nous	-
3	996773		Anticipator, Temperature		Appelez-nous	-
4	49599		Strainer, Tube		Appelez-nous	-
5	484230		Tube, Outlet (includes Illus. 4)		Appelez-nous	-
6	1155784		Tube, Restrictor (31.5 Length)		Appelez-nous	-
7	997904		Blade, Fan (condenser)		Appelez-nous	-
8	595085		Setscrew, 5/16-24 X 1/4		Appelez-nous	-
9	876034		Clip, Balancing		Appelez-nous	-
10	951575		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex (4)   (Replaces: 488130)				$ 6.59
12	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
13	951586		Evaporator		Appelez-nous	-
14	950037		Gasket, Nut		Appelez-nous	-
15	1155760		Tube, 90~ Connect		Appelez-nous	-
16	947364		Tube, Flow Divider		Appelez-nous	-
17	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
17	488481		Screw, S.m.no.10 X 1/2		Appelez-nous	-
18	951570		Base		Appelez-nous	-
19	475577		Clip, Anticipator		Appelez-nous	-
20	484136		Harness, Wiring (compressor Service)		Appelez-nous	-
21	4317916		Compressor   (Replaces: 876923)		Appelez-nous	-
22	950212		Grommet (3)		Appelez-nous	-
23	489108		Washer (3)		Appelez-nous	-
24	858122		Locknut (3)		Appelez-nous	-
25	WP950035		Gasket, Terminal Cover   (Replaces: 950035)				$ 78.01
26	WP1161170		Overload   (Replaces: 951494)				$ 84.72
27	950032		Spring, Overload		Appelez-nous	-
28	WP950036		Cover, Terminal   (Replaces: 950213)				$ 9.83
29	WP950027		Nut, Terminal Cover   (Replaces: 950027)				$ 5.20
30	947533		Blade, Fan (evaporator)		Appelez-nous	-
31	852451		Clamp, Cable		Appelez-nous	-
32	855930		Clamp, Tube		Appelez-nous	-
