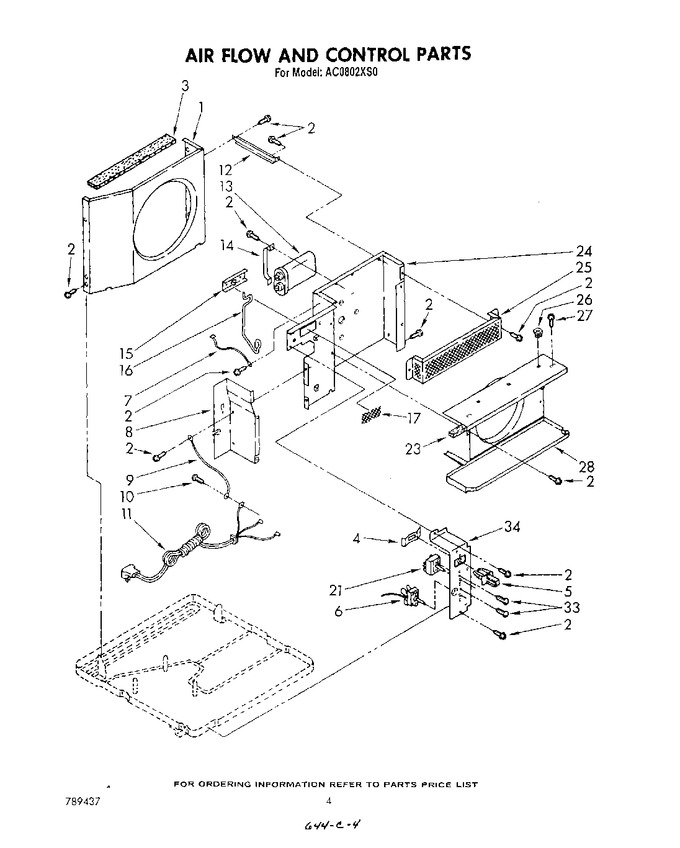

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856037		Shroud, Condenser		Appelez-nous	-
2	488481		Screw, Repair		Appelez-nous	-
2	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	WP854334		Seal, Condenser   (Replaces: 859600)				$ 12.55
4	858765		Retainer, Exhaust Door		Appelez-nous	-
5	953066		Actuator, Exhaust Door		Appelez-nous	-
6	949431		Control, Tempetature		Appelez-nous	-
7	857568		Wire, Ground		Appelez-nous	-
8	994560		Extension, Dividing Wall		Appelez-nous	-
9	856094		Wire, Ground		Appelez-nous	-
10	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
11	647216		Cord, Appliance		Appelez-nous	-
12	1155100		Support, Unit (2)		Appelez-nous	-
13	1155592		Capacitor, Running		Appelez-nous	-
14	856105		Bracket, Capacitor		Appelez-nous	-
15	644206		Door, Exhaust		Appelez-nous	-
16	856042		Arm, Exhaust Door		Appelez-nous	-
17	856929		Screen, Exhaust Door		Appelez-nous	-
21	950283		Switch, Rotary		Appelez-nous	-
23	948220		Insulation, Evaporator Cover		Appelez-nous	-
24	951968		Dividing Wall		Appelez-nous	-
25	856912		Guard, Evaporator Impeller		Appelez-nous	-
26	487808		Fastener, Snap		Appelez-nous	-
27	WP488729		Screw, Sems Sm No.8 X 1/2 (2)   (Replaces: 487910)			Immediately	$ 7.45
28	948219		Shroud Assembly, Evaporator (includes Item 23)		Appelez-nous	-
33	488734		Screw, 6-32 X .175 (2)		Appelez-nous	-
34	996966		Panel, Control		Appelez-nous	-
