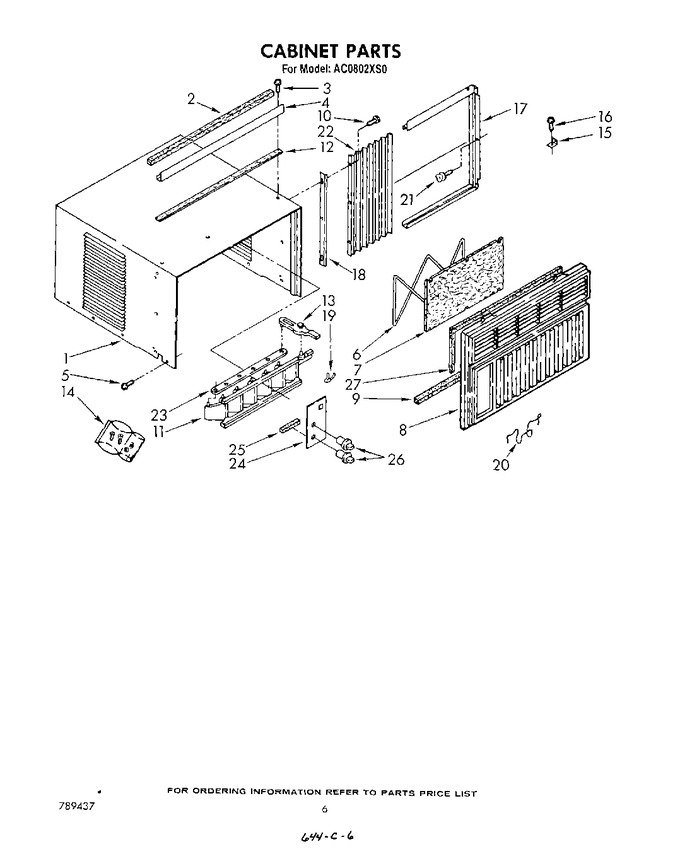

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	856686		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, 10 X 1/2 (3)   (Replaces: 488720)			Immediately	$ 7.08
4	993786		Channel, Top		Appelez-nous	-
5	WP489128		Screw, 8-32 X 3/8 (8)   (Replaces: 488875)				$ 10.26
6	646963		Retainer, Filter		Appelez-nous	-
7	855246		Filter, Air		Appelez-nous	-
8	1155841		Front, Cabinet		Appelez-nous	-
9	852923		Seal, Front		Appelez-nous	-
10	488730		Screw, No.8 X 7/16 (6)		Appelez-nous	-
11	641481		Louver, Vertical		Appelez-nous	-
12	856989		Strip, Seal		Appelez-nous	-
13	645887		Handle, Louver		Appelez-nous	-
14	950286		Bag, Accessory		Appelez-nous	-
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	855573		Housing, Curtain (left Side (includes No.22))		Appelez-nous	-
17	855572		Housing, Curtain (right Side)		Appelez-nous	-
18	644224		Retainer, Curtain (2)		Appelez-nous	-
19	641484		Clip, Handle				$ 150.14
20	949634		Clip, Cabinet Front (2)		Appelez-nous	-
21	475581		Screw, Thumb (2)		Appelez-nous	-
22	947160		Curtain (2)		Appelez-nous	-
23	641482		Link,		Appelez-nous	-
24	1155424		Plate, Escutcheon		Appelez-nous	-
25	470036		Spacer, Escutcheon		Appelez-nous	-
26	947264		Knob, Control (2)		Appelez-nous	-
27	645883		Seal, Front (top And Sides)		Appelez-nous	-
	LIT1155736		Sheet, Tech And Wiring Diagram		Appelez-nous	-
	LIT789437		List, Repair Parts		Appelez-nous	-
	LIT1155767		Guide, Energy		Appelez-nous	-
	LIT1155970		Guide, Use And Care		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
