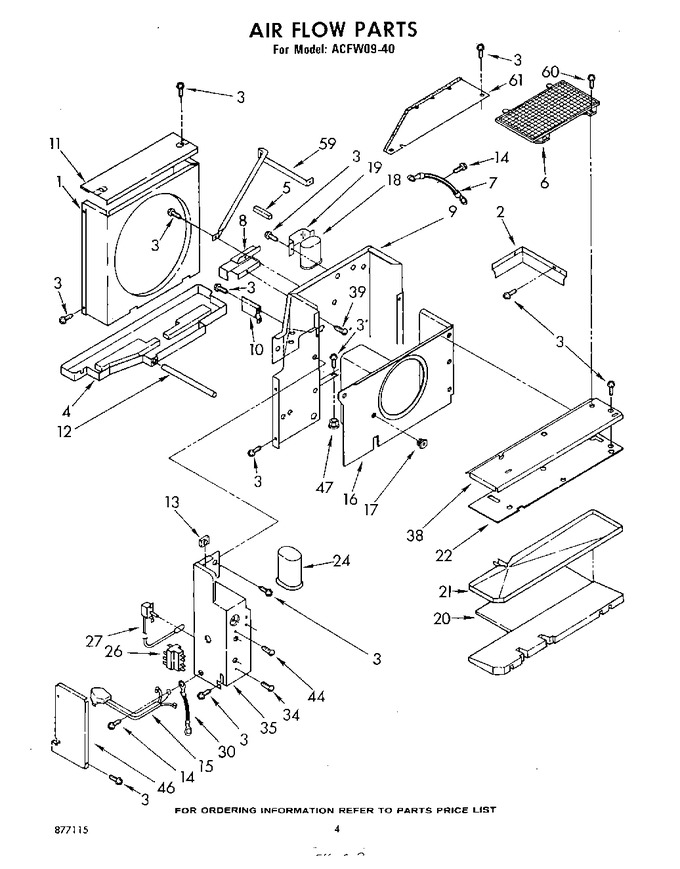

03 - Airflow


04 - Accessory Kit


05 - Accessory Kit Parts


06 - Accessory Kit Parts


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	853356		Shroud		Appelez-nous	-
2	852317		Channel, Wiring		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
3	488481		Screw, Repair		Appelez-nous	-
4	853391		Pan, Condensate		Appelez-nous	-
5	WP854334		Seal (2)   (Replaces: 854681)				$ 12.55
6	997949		Guard, Evaporator Impeller		Appelez-nous	-
7	998010		Ground		Appelez-nous	-
8	998009		Bracket, Capacitor Shield		Appelez-nous	-
9	947417		Wall		Appelez-nous	-
10	853329		Baffle		Appelez-nous	-
11	853390		Cover, Shroud (condenser)		Appelez-nous	-
12	465777		Tube, Condensate		Appelez-nous	-
13	647865		Grommet		Appelez-nous	-
14	WPW10141604		Screw, 8 X 3/8   (Replaces: 487871)				$ 7.97
15	997694		Cable		Appelez-nous	-
16	852875		Housing, Blower Wheel		Appelez-nous	-
17	487808		Fastener, Snap (2)		Appelez-nous	-
18	948208		Capacitor, Compressor Running		Appelez-nous	-
19	852992		Bracket (upper)		Appelez-nous	-
19	475844		Bracket (lower)		Appelez-nous	-
20	853269		Insulation, Condensate Pan		Appelez-nous	-
21	853268		Pan, Evaporator Condensate		Appelez-nous	-
22	948410		Insulation, Evaporator Cover		Appelez-nous	-
24	996504		Capacitor, Fan		Appelez-nous	-
26	947654		Switch, Pushbutton		Appelez-nous	-
27	852543		Control, Temperature		Appelez-nous	-
30	857634		Wire, Ground		Appelez-nous	-
34	488735		Screw, 6-20 X .362		Appelez-nous	-
35	947942		Box, Control		Appelez-nous	-
38	856957		Cover, Evaporator		Appelez-nous	-
39	WP488729		Screw, 8 X 3/8   (Replaces: 488979)			Immediately	$ 7.45
44	488734		Screw, 6-32 X .175		Appelez-nous	-
46	852994		Wall, Dividing L.s.		Appelez-nous	-
47	649620		Clip, Speed		Appelez-nous	-
59	852318		Support, Unit		Appelez-nous	-
60	WP488729		Screw, 8 X 1/2   (Replaces: 487910)			Immediately	$ 7.45
61	947943		Cover, Discharge Assembly		Appelez-nous	-
