01 - Cabinet And Front
02 - Unit , Lit/optional
03 - Airflow
04 - Accessory Kit
05 - Accessory Kit Parts

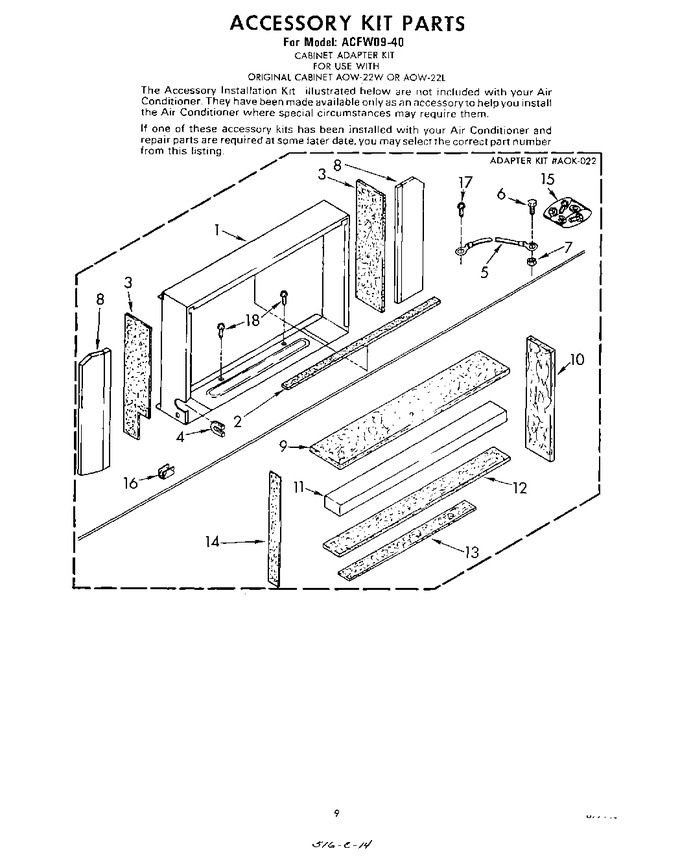

06 - Accessory Kit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 947432 | Insulation, Top |
|
- | |||||
| 3 | 947433 | Insulation, Cabinet Extension (r.s.) |
|
- | |||||
| 3 | 947431 | Insulation, Cabinet Extension (l.s.) |
|
- | |||||
| 4 | 647849 | Grommet, Appliance Cable |
|
- | |||||
| 5 | 857017 | Ground Wire (cabinet) |
|
- | |||||
| 6 | 488853 | Screw, 8-32 X 3/8 |
|
- | |||||
| 7 | WP486255 | Nut, Hex 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 8 | 948161 | Spacer Assembly, Rear (r.s.) |
|
- | |||||
| 8 | 948162 | Spacer Assembly, Rear (l.s.) |
|
- | |||||
| 9 | 947436 | Insulation, Cabinet (front Top) |
|
- | |||||
| 10 | 947437 | Insulation, Cabinet (2) (front Sides) |
|
- | |||||
| 11 | 947434 | Stop |
|
- | |||||
| 12 | 947427 | Seal, Cabinet Bottom |
|
- | |||||
| 13 | WP854334 | Seal, Condenser Cover Top (Replaces: 948115) |
|
$ 12.55 | |||||
| 14 | 947438 | Seal, Unit Side (2) |
|
- | |||||
| 15 | 947744 | Bag, Accessory |
|
- | |||||
| 16 | 947960 | Clip (12) |
|
- | |||||
| 17 | 488854 | Screw, 8-32 X 3/8 |
|
- | |||||
| 18 | 488624 | Screw, 8 X 3/8 |
|
- |
