01 - Cabinet And Front
02 - Unit , Lit/optional
03 - Airflow
04 - Accessory Kit

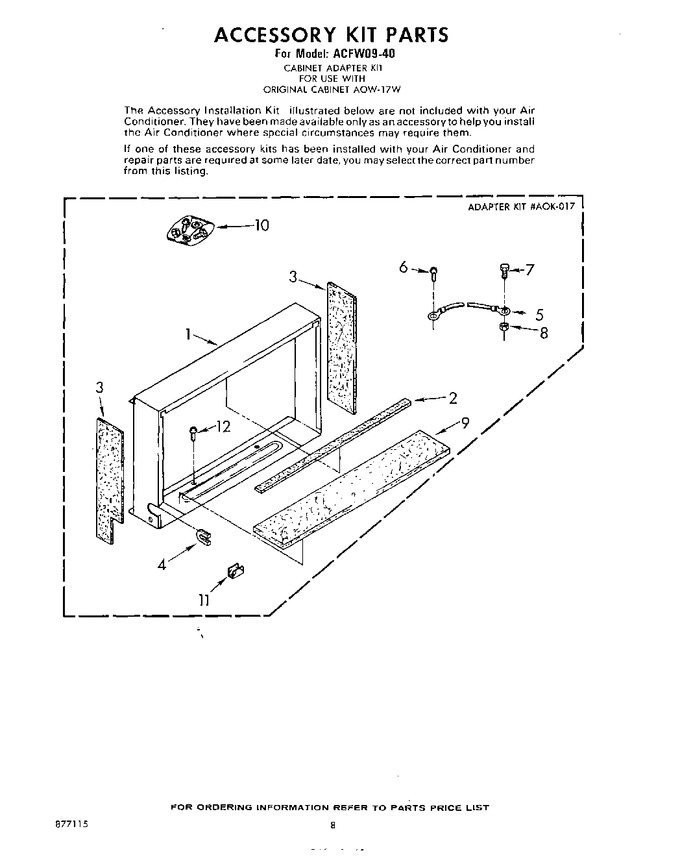

05 - Accessory Kit Parts
06 - Accessory Kit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 2 | 947444 | Insulation, Top |
|
- | |||||
| 3 | 947443 | Insulation, Cabinet Extension (l.s.) |
|
- | |||||
| 3 | 947445 | Insulation, Cabinet Extension (r.s.) |
|
- | |||||
| 4 | 647849 | Grommet, Appliance Cable |
|
- | |||||
| 5 | 857017 | Ground Wire (cabinet) |
|
- | |||||
| 6 | 488854 | Screw, 8-32 X 3/8 |
|
- | |||||
| 7 | 488853 | Screw, 8-32 X 3/8 |
|
- | |||||
| 8 | WP486255 | Nut, Hex 8-32 (Replaces: 486529) |
|
$ 5.82 | |||||
| 9 | 947427 | Seal, Cabinet Bottom |
|
- | |||||
| 10 | 947744 | Bag, Accessory |
|
- | |||||
| 11 | 947960 | Clip (12) |
|
- |
