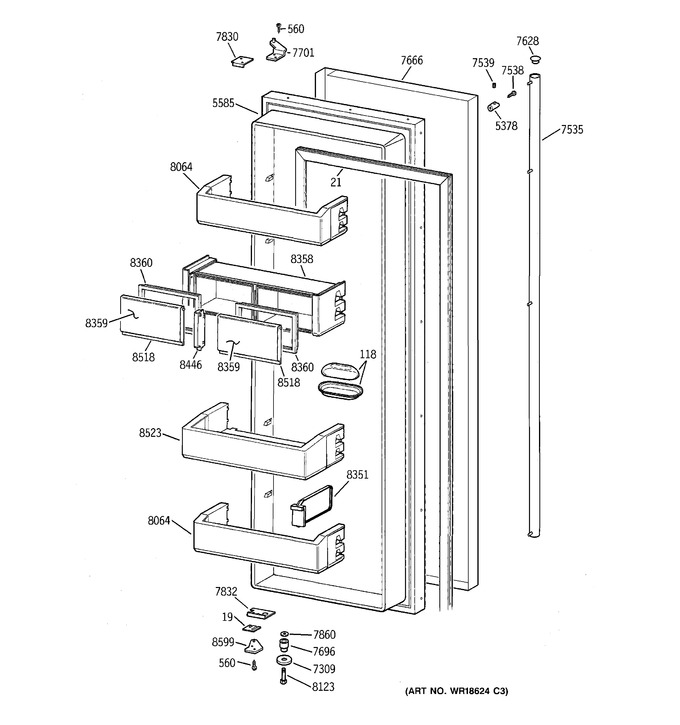

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Section


5 - Ice Bucket Assembly


6 - Fresh Food Section


7 - Fresh Food Section


8 - Unit Parts


9 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
19	WR2X8589		Shim .060		Appelez-nous	-
19	WR2X8590		Shim .030		Appelez-nous	-
21	WR24X551		Gasket Door Ff White		Appelez-nous	-
118	WR19X35		Dish Butter Asm		Appelez-nous	-
560	WR1X1845		Bolt Hinge		Appelez-nous	-
5378	WG03F00574		Stand-off Ss   (Replaces: WR02X10165)				$ 112.62
5585	WR78X8838		Ff O. Door 48"		Appelez-nous	-
7309	WR1X2165		Washer Hinge Bolt Large		Appelez-nous	-
7535	WR12X10068		Handle Tubular Ss		Appelez-nous	-
7538	WR01X10057		Screw #10-32x3/4 Cr Tr H		Appelez-nous	-
7539	WR01X10026		Screw Set #10-32		Appelez-nous	-
7628	WR02X10166		Handle Plug Ss		Appelez-nous	-
7666	WR17X10379		Ff Wrap Asm Ss		Appelez-nous	-
7696	WR1X1836		Bushing		Appelez-nous	-
7701	WR13X633		Hinge Top Ff		Appelez-nous	-
7830	WR2X8585		Shim Hinge Top Ff		Appelez-nous	-
7832	WR2X8586		Shim Hinge Btm Ff		Appelez-nous	-
7860	WR1X1835		Washer		Appelez-nous	-
8064	WR71X8064		Bin Ff		Appelez-nous	-
8123	WR1X2164		Hinge Bolt Shoulder		Appelez-nous	-
8351	WR2X9400		Divider Module		Appelez-nous	-
8358	WR71X2682		Dairy Module		Appelez-nous	-
8359	WR22X516		Door Dairy		Appelez-nous	-
8360	WR22X517		Frame Dairy Door		Appelez-nous	-
8446	WR2X9401		Divider Dairy/util.42/48		Appelez-nous	-
8518	WR38X2244		Trim Dairy Door		Appelez-nous	-
8523	WR71X2680		Bin Deep Ff		Appelez-nous	-
8599	WR13X766		Hinge Door Btm. F.f.		Appelez-nous	-
