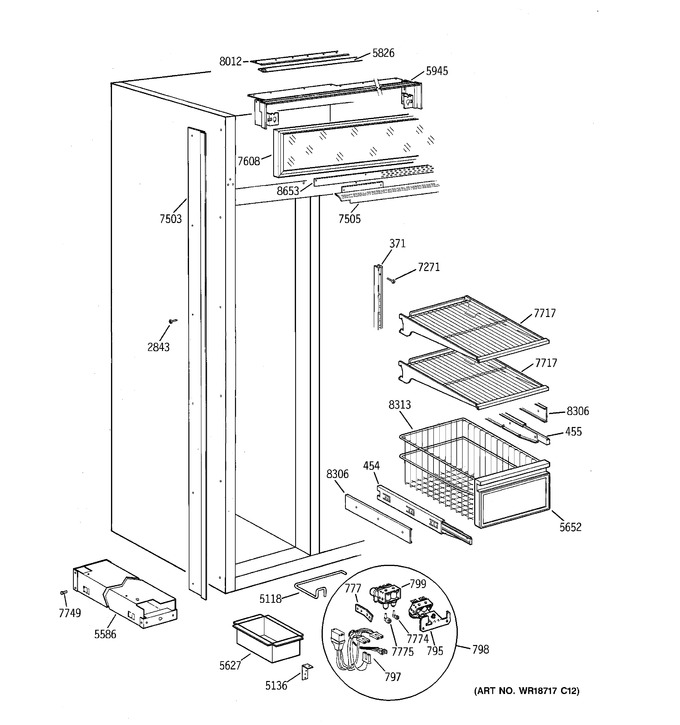

SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Section


5 - Ice Bucket Assembly


6 - Fresh Food Section


7 - Fresh Food Section


8 - Unit Parts


9 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
371	WR17X3300		Shelf Track Fz		Appelez-nous	-
454	WR72X284		Slide Frz Asm L.h.		Appelez-nous	-
455	WR72X285		Slide Frz Asm R.h.		Appelez-nous	-
777	WR02X10370		Bracket Water Valve		Appelez-nous	-
795	WG03F00683		Water Valve Asm   (Replaces: WR57X10023)				$ 105.46
797	WR23X10108		Harness		Appelez-nous	-
798	WR57X10026		Bracket & Valve Asm		Appelez-nous	-
799	WG03F00684		Water Valve Asm   (Replaces: WR57X10024)				$ 115.25
2843	WR1X5657		Screw-slide		Appelez-nous	-
5118	WR02X10426		Copper Tube		Appelez-nous	-
5136	WR02X10425		Bracket Water Valve		Appelez-nous	-
5586	WR13X670		Base Asm (lh)		Appelez-nous	-
5627	WR2X8604		Cover Water Valve		Appelez-nous	-
5652	WR71X2669		Frz Basket Front Asm		Appelez-nous	-
5826	WR2X9487		Vent Top Gasket Front		Appelez-nous	-
5945	WR74X10027		Vent Top Frame Asm Ss 48		Appelez-nous	-
7271	WR1X5635		Screw Shelf Track		Appelez-nous	-
7503	WR17X10151		Trim Case Fz Side Ss		Appelez-nous	-
7505	WR17X10164		Wire Guard Ss 48		Appelez-nous	-
7608	WR74X10026		Panel Frame Asm Ss 48		Appelez-nous	-
7717	WR71X2428		Shelf Fz		Appelez-nous	-
7749	WR1X1838		Bolt Adj Hinge		Appelez-nous	-
7774	WR02X10445		Elbow Plug In 1/4"		Appelez-nous	-
7775	WR02X10446		Elbow Plug In 5/16"		Appelez-nous	-
8012	WR49X360		Gasket Vent Kit		Appelez-nous	-
8306	WR72X268		Slide Fz		Appelez-nous	-
8313	WR21X206		Fz Basket Rear 48"		Appelez-nous	-
8653	WR2X9427		Vent Guard 48"		Appelez-nous	-
