SELECT A DIAGRAM

1 - Freezer Door


2 - Fresh Food Door


3 - Freezer Section


4 - Freezer Section


5 - Ice Bucket Assembly

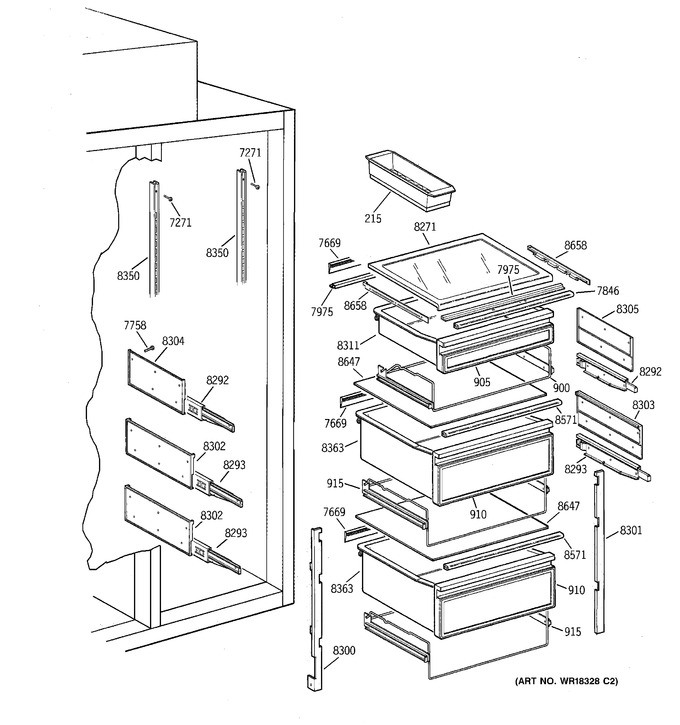

6 - Fresh Food Section


7 - Fresh Food Section


8 - Unit Parts


9 - Icemaker Wr30x0327


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
215	WR32X1435		Bucket Egg		Appelez-nous	-
900	WR72X264		Snack Pan Support Asm		Appelez-nous	-
905	WR71X2664		Snack Pan Front Asm		Appelez-nous	-
910	WR71X2667		Veg Pan Front Asm		Appelez-nous	-
915	WR72X267		Veg Pan Support Asm		Appelez-nous	-
7271	WR1X5635		Screw Shelf Track		Appelez-nous	-
7669	WR14X446		Seal Snack Pan Rear		Appelez-nous	-
7758	WR1X1840		Screw Slide Mtg.		Appelez-nous	-
7846	WR14X448		Seal Snack Pan Front		Appelez-nous	-
7975	WR17X3440		Bar Support		Appelez-nous	-
8271	WR32X1551		Snack Pan Cover		Appelez-nous	-
8292	WR72X269		Slide Full Ext 10		Appelez-nous	-
8293	WR72X270		Slide Full Ext 12		Appelez-nous	-
8300	WR17X4142		Pict Window Lt		Appelez-nous	-
8301	WR17X4143		Pict Window Rt		Appelez-nous	-
8302	WR2X9408		Veg Pan Cover Sppt Lt		Appelez-nous	-
8303	WR2X9407		Veg Pan Cover Sppt Rt		Appelez-nous	-
8304	WR2X9406		Snack Pan Cover Sppt Lt		Appelez-nous	-
8305	WR2X9405		Snack Pan Cover Sppt Rt		Appelez-nous	-
8311	WR32X1566		Snack Pan Rear 48"		Appelez-nous	-
8350	WR17X4140		Track Shelf Ff		Appelez-nous	-
8363	WR32X1567		Veg Pan Rear 48"		Appelez-nous	-
8571	WR14X485		Seal Veg Pan Front		Appelez-nous	-
8647	WR32X1552		Veg Pan Glass 48"		Appelez-nous	-
8658	WR2X9404		Pan Cover Retainer		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
