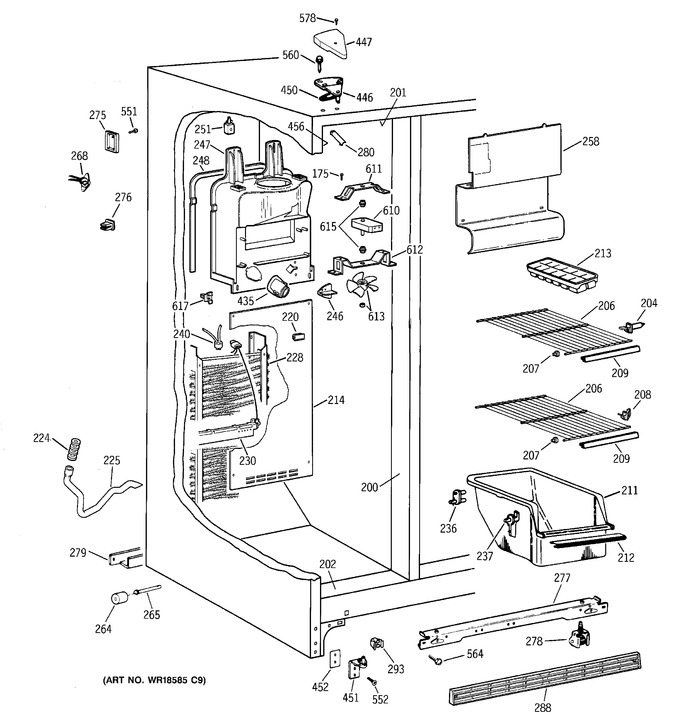

2 - Freezer Section
3 - Fresh Food Section
4 - Fresh Food Shelves
5 - Unit Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 175 | WR01X10035 | Scr 8-18 Ab Ihw 5/8 S |
|
- | |||||
| 200 | WR40X1741 | Breaker Strip R/s Fz |
|
- | |||||
| 201 | WR40X1742 | Breaker Strip Top Fz |
|
- | |||||
| 202 | WR40X1743 | Breaker Strip Btm Fz |
|
- | |||||
| 204 | WR2X9217 | Support Fz Shelf |
|
- | |||||
| 206 | WR01F03328 | Shelf Fz (Replaces: WR71X1888) |
|
$ 72.77 | |||||
| 207 | WR2X4676 | Grommet Shelf |
|
- | |||||
| 208 | WG03F00998 | Support Shelf (Replaces: WR2X4674) |
|
$ 4.20 | |||||
| 209 | WR38X2217 | Trim Shelf Wire |
|
- | |||||
| 211 | WR21X188 | Basket White |
|
- | |||||
| 212 | WR17X4036 | Trim Handle Basket Fz |
|
- | |||||
| 213 | WR30X311 | Tray Ice |
|
- | |||||
| 214 | WR17X3919 | Cover Evap |
|
- | |||||
| 214 | WR01X10064 | Clip Evap Cover |
|
- | |||||
| 214 | WR14X455 | Gasket Cover Evap |
|
- | |||||
| 220 | WR2X9002 | Plug Liner Fz |
|
- | |||||
| 224 | WR2X8657 | Grommet Drain Tube |
|
- | |||||
| 225 | WR1X5042 | Clamp Hose |
|
- | |||||
| 225 | WR02X10395 | Tube Drain |
|
- | |||||
| 228 | WR85X282 | Low Side Asm |
|
- | |||||
| 230 | WG03F00773 | Heater & Bracket Asm (Replaces: WR51X10032) |
|
Immediately | $ 145.62 | ||||
| 230 | WG03F00312 | Heater Harness Def Asm (Replaces: WR51X10031) |
|
Immediately | $ 111.99 | ||||
| 236 | WR2X4548 | Support Basket-rear |
|
- | |||||
| 237 | WR2X7036 | Support Basket-front |
|
- | |||||
| 240 | WG03F02118 | Thermostat Def (Replaces: WR50X122) |
|
Immediately | $ 38.96 | ||||
| 246 | WR02X10102 | Plug Hole Evap Orifice |
|
- | |||||
| 247 | WR17X10226 | Orifice Evap Fan |
|
- | |||||
| 248 | WR14X493 | Foam Strip |
|
- | |||||
| 251 | WR2X2880 | Support Twist |
|
- | |||||
| 258 | WR17X10212 | Cover Fan |
|
- | |||||
| 264 | WG03A00502 | Wheel Only Mobility (Replaces: WR2X3594) |
|
$ 17.24 | |||||
| 265 | WR2X3595 | Axle Wheel Front |
|
- | |||||
| 265 | WR2X4742 | Axle Wheel Rear |
|
- | |||||
| 268 | WR23X312 | Im Receptacle |
|
- | |||||
| 275 | WR2X9004 | Cover Im Receptacle |
|
- | |||||
| 276 | WR1X1510 | Grommet Scr |
|
- | |||||
| 277 | WR17X3117 | Rail Mach Mtg Frt |
|
- | |||||
| 278 | WR2X4858 | Wheel Asm Frt |
|
- | |||||
| 279 | WR17X10448 | Rail Mach Mtg Rear |
|
- | |||||
| 280 | WR2X8518 | Cap Corner Oc (wh) |
|
- | |||||
| 288 | WR74X215 | Grille Base Bk |
|
- | |||||
| 293 | WR2X7080 | Clip-o. Case-end Cap |
|
- | |||||
| 435 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 446 | WR13X647 | Hinge Top Asm |
|
- | |||||
| 447 | WG03L01134 | Hinge Cover Wh (Replaces: WR2X8262) |
|
$ 32.55 | |||||
| 450 | WR2X4194 | Shim Hinge Top |
|
- | |||||
| 451 | WG03L00144 | Hinge Btm Pin & Cam Asm (Replaces: WR13X10020) |
|
Immediately | $ 72.68 | ||||
| 452 | WR2X4497 | Shim Hinge Btm .031 |
|
- | |||||
| 456 | WR40X1747 | Breaker Strip L/s Fz |
|
- | |||||
| 551 | WZ04X0244 | Scr 8-18 Ab Rndw 5/8 Ss |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 560 | WR1X2140 | Screw |
|
- | |||||
| 564 | WR1X1194 | Scr 1/4 14 Ba Hx 3/4 Sn |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- | |||||
| 610 | WR60X10007 | Motor Evap Fan |
|
- | |||||
| 611 | WR02X10100 | Bracket Evap Fan |
|
- | |||||
| 612 | WR02X10101 | Bracket Evap Fan |
|
- | |||||
| 613 | WR2X3198 | Ring Compression |
|
- | |||||
| 613 | WR60X10011 | Blade Evap Fan |
|
- | |||||
| 615 | WG03F00305 | Grommet Evap Fan (Replaces: WR02X10098) |
|
Immediately | $ 6.52 | ||||
| 617 | WR2X8349 | Grommet Scr Closed |
|
- |
