SELECT A DIAGRAM

1 - Doors


2 - Freezer Section


3 - Fresh Food Section


4 - Fresh Food Shelves


5 - Unit Parts

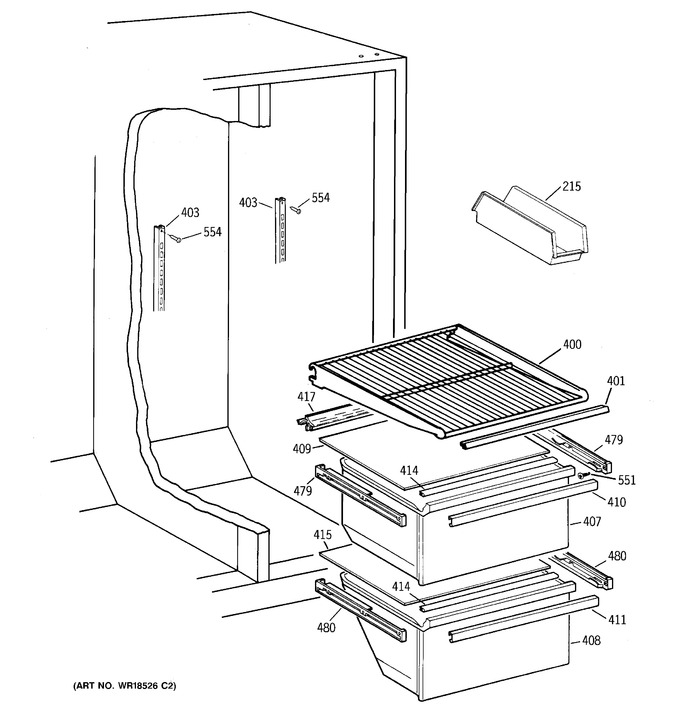

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
215	WR32X897		Bucket Utility Wh		Appelez-nous	-
400	WR71X2348		Shelf Cant Wire		Appelez-nous	-
401	WR38X2220		Trim Shelf Wire		Appelez-nous	-
407	WR32X1045		Pan Upper		Appelez-nous	-
408	WR32X1169		Pan Lower		Appelez-nous	-
409	WR32X1340		Cover Pan Glass		Appelez-nous	-
410	WR17X4044		Handle Veg Pan		Appelez-nous	-
411	WR17X4045		Handle Veg Pan		Appelez-nous	-
414	WR14X444		Gasket Pan Cover Frt		Appelez-nous	-
415	WR32X1105		Cover Pan Glass		Appelez-nous	-
417	WR14X10031		Gasket Shield Lower		Appelez-nous	-
479	WR72X10009		Slide Pan Upper Rh		Appelez-nous	-
479	WR72X10010		Slide Pan Upper Lh		Appelez-nous	-
480	WR72X10008		Slide Pan Lower Lh		Appelez-nous	-
480	WR72X10007		Slide Pan Lower Rh		Appelez-nous	-
551	WZ04X0244		Scr 8-18 Ab Rndw 5/8 Ss		Appelez-nous	-
554	WR1X2141		Scr 10-24 Tr Hxw I S		Appelez-nous	-
