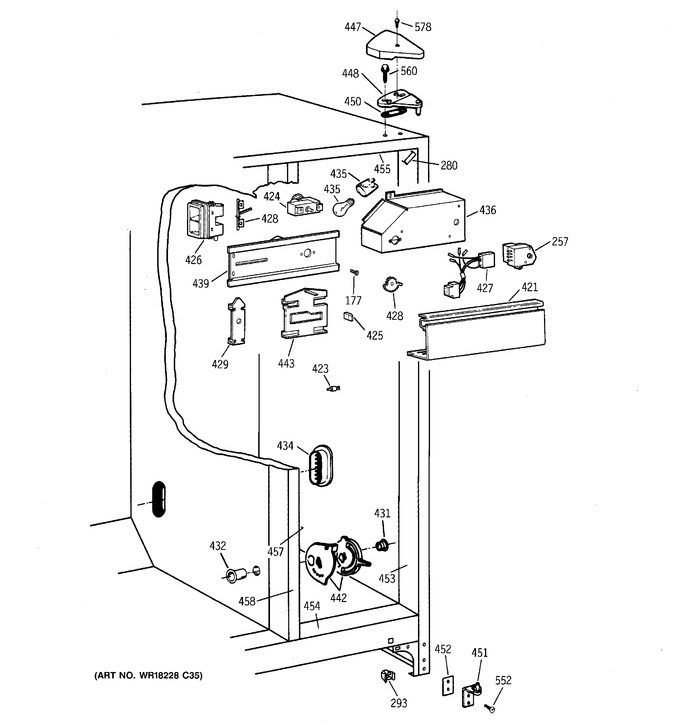

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 177 | WR1X5034 | Screw 8-18 A Hx 1/2 S |
|
- | |||||
| 257 | WG04F00202 | Control Defrost (Replaces: WR9X489) |
|
Immediately | $ 76.65 | ||||
| 280 | WR2X8518 | Cap Corner Oc (wh) |
|
- | |||||
| 293 | WR2X7080 | Clip-o. Case-end Cap |
|
- | |||||
| 421 | WR17X10225 | Shield Light Ff |
|
- | |||||
| 423 | WR02X10050 | Grommet Suppt Lt Shield |
|
- | |||||
| 424 | WR9X570 | Control Temp |
|
- | |||||
| 425 | WR2X8398 | Knob Control |
|
- | |||||
| 426 | WR2X8514 | Housing Nozzle |
|
- | |||||
| 426 | WR2X8425 | Insul Foam Nozzle |
|
- | |||||
| 427 | WR23X316 | Harness Cont Module |
|
- | |||||
| 428 | WR2X8513 | Gear Control Temp |
|
- | |||||
| 428 | WR2X8582 | Control Damper |
|
- | |||||
| 429 | WR2X8516 | Slide Damper |
|
- | |||||
| 431 | WR2X9299 | Cap Mullion Duct |
|
- | |||||
| 432 | WR2X8654 | Duct Mullion |
|
- | |||||
| 434 | WR2X9431 | Duct Air Return Asm Ff |
|
- | |||||
| 435 | STD372402 | Lamp 40 W |
|
- | |||||
| 435 | WR01F01775 | Socket & Terminal Asm (Replaces: WR2X9391) |
|
$ 7.51 | |||||
| 436 | WR2X7736 | Bracket Control Mod |
|
- | |||||
| 439 | WR17X2922 | Channel Control |
|
- | |||||
| 442 | WR2X9355 | Cover Meat Pan Duct |
|
- | |||||
| 443 | WR2X8570 | Rack Control Temp |
|
- | |||||
| 447 | WG03L01134 | Hinge Cover Wh (Replaces: WR2X8262) |
|
$ 32.55 | |||||
| 448 | WR13X646 | Hinge Top Asm |
|
- | |||||
| 450 | WR2X4194 | Shim Hinge Top |
|
- | |||||
| 451 | WG03L00144 | Hinge Btm Pin & Cam Asm (Replaces: WR13X10020) |
|
Immediately | $ 72.68 | ||||
| 452 | WR2X4497 | Shim Hinge Btm .031 |
|
- | |||||
| 453 | WR40X1757 | Breaker Strip R/s Ff |
|
- | |||||
| 454 | WR40X1758 | Breaker Strip Btm Ff |
|
- | |||||
| 455 | WR40X1759 | Breaker Strip Top Ff |
|
- | |||||
| 457 | WR40X1748 | Breaker Strip L/s Ff |
|
- | |||||
| 458 | WR02X10334 | Clip Mullion Btm |
|
- | |||||
| 458 | WR2X9376 | Bracket Mullion Top |
|
- | |||||
| 458 | WR40X1749 | Mullion Wh |
|
- | |||||
| 552 | WR01X10034 | Scr 12-24 Tt Ih .975 S |
|
- | |||||
| 560 | WR1X2140 | Screw |
|
- | |||||
| 578 | WZ02X0464 | Screw 8-32 X 3/8 |
|
- |
