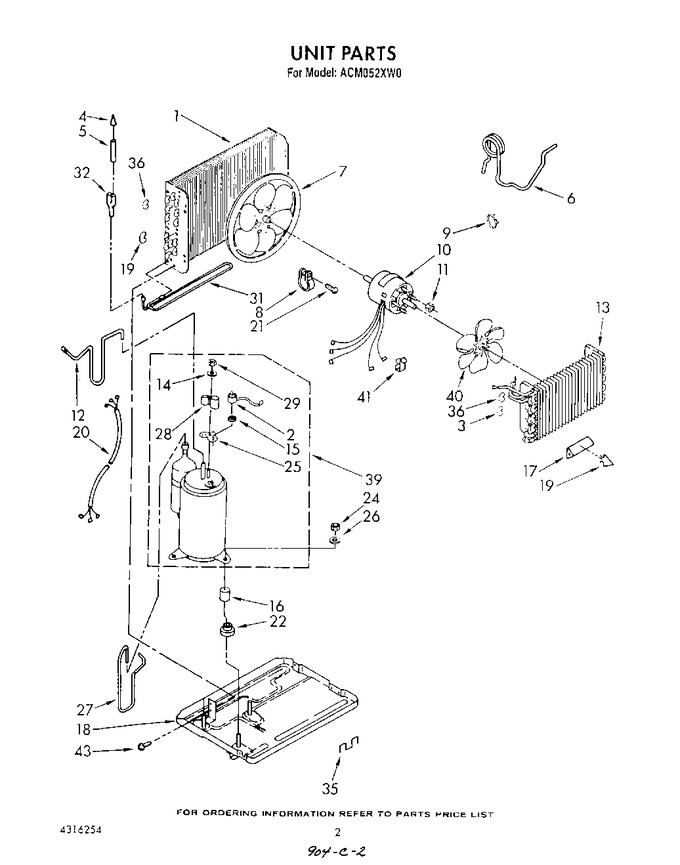

02 - Unit
03 - Air Flow And Control
04 - Cabinet
05 - Lit/optional
06 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1155940 | Condenser |
|
- | |||||
| 2 | WP1161170 | Overload (Replaces: 1156449) |
|
$ 84.72 | |||||
| 3 | 708531 | Bend, Return Evaporator (3) Condenser (13) |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 950825 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 1157814 | Tube, Restrictor |
|
- | |||||
| 7 | 1158524 | Blade, Fan |
|
- | |||||
| 8 | 1158502 | Clamp, Fan |
|
- | |||||
| 9 | 1156028 | Clip, Tube |
|
- | |||||
| 10 | 1158156 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 1158307 | Tube, Discharge |
|
- | |||||
| 13 | 1157726 | Evaporator |
|
- | |||||
| 14 | 950037 | Gasket |
|
- | |||||
| 15 | 1155568 | Spring, Overload |
|
- | |||||
| 16 | 858148 | Sleeve (3) |
|
- | |||||
| 17 | 996773 | Anticipator, Temperature |
|
- | |||||
| 18 | 950013 | Base |
|
- | |||||
| 19 | 475577 | Clip, Anticipator |
|
- | |||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | WP489069 | Screw (Replaces: 489292) |
|
Immediately | $ 7.56 | ||||
| 22 | 475041 | Grommet (3) |
|
- | |||||
| 24 | 1156715 | Locknut (3) |
|
$ 9.68 | |||||
| 25 | 1155570 | Gasket, Terminal Cover |
|
- | |||||
| 26 | 489108 | Washer (3) |
|
- | |||||
| 27 | 1158754 | Tube, Suction |
|
- | |||||
| 28 | 1155569 | Cover, Terminal |
|
- | |||||
| 29 | 950037 | Nut Hex 5 - 8 Mm. |
|
- | |||||
| 31 | 1155622 | Tube, Condenser Extension |
|
- | |||||
| 32 | 947364 | Tube, Flow Divider |
|
- | |||||
| 35 | 949634 | Clip, Mtg (2) (cabinet-front) |
|
- | |||||
| 36 | 708532 | Bend, Return Evaporator (7) Condenser (4) |
|
- | |||||
| 39 | 1156439 | Compressor Assembly |
|
- | |||||
| 40 | 1156594 | Fan, Evaporator |
|
- | |||||
| 41 | 852451 | Clamp, Wiring |
|
- | |||||
| 43 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| LIT1158756 | Tech Sheet |
|
- | ||||||
| LIT4316254 | List, Repair Parts |
|
- | ||||||
| LIT1158929 | Guide, Use And Care |
|
- | ||||||
| LIT1158928 | Instructions, Installation |
|
- |
