View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

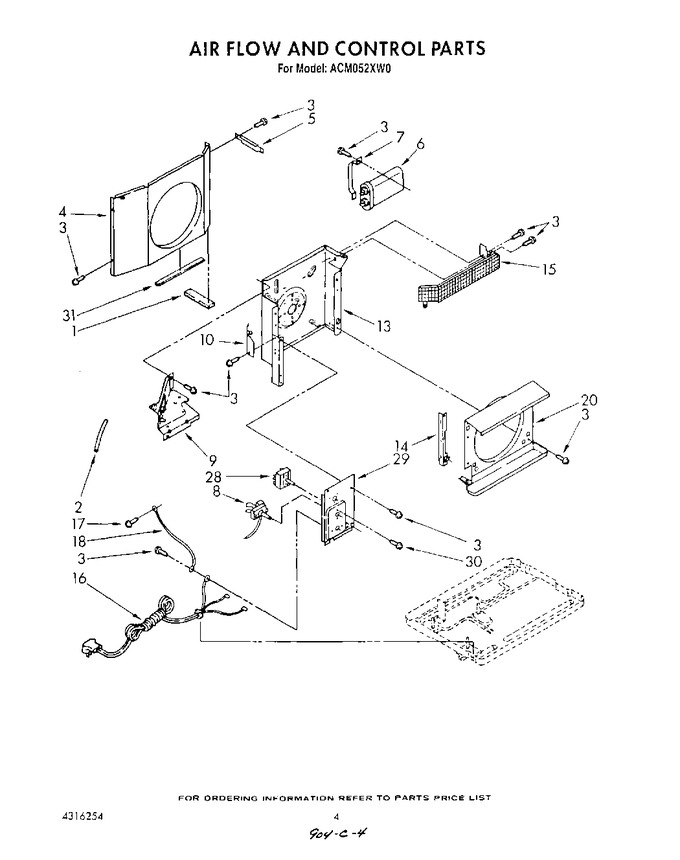

02 - Unit
03 - Air Flow And Control
04 - Cabinet
05 - Lit/optional
06 - Installation
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 646870 | Seal, Condensate |
|
- | |||||
| 2 | 212643 | Sealer, Tube (Replaces: 859934) |
|
Immediately | $ 86.78 | ||||
| 3 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 4 | 646297 | Shroud, Condenser |
|
- | |||||
| 5 | 649879 | Support, Unit |
|
- | |||||
| 6 | 952078 | Capacitor, Running |
|
- | |||||
| 7 | 856105 | Bracket, Capacitor |
|
- | |||||
| 8 | 950403 | Control, Temperature |
|
- | |||||
| 9 | 646773 | Extension, Dividing Wall |
|
- | |||||
| 10 | 859890 | Plate, Dividing Wall |
|
- | |||||
| 13 | 996770 | Wall, Dividing |
|
- | |||||
| 14 | 855502 | Bracket, Evaporator |
|
- | |||||
| 15 | 1158469 | Insulation, Motor |
|
- | |||||
| 16 | 647216 | Cord, Appliance |
|
- | |||||
| 17 | WPW10141604 | Screw, St (Replaces: 487871) |
|
$ 7.97 | |||||
| 18 | 856094 | Wire, Ground |
|
- | |||||
| 20 | 996748 | Shroud, Evaporator |
|
- | |||||
| 28 | 950524 | Switch, Rotary |
|
- | |||||
| 29 | 950400 | Panel, Control |
|
- | |||||
| 30 | 488734 | Screw, 6-32 01.175 |
|
- | |||||
| 31 | WP854334 | Seal, Conden01te (Replaces: 852063) |
|
$ 12.55 |
