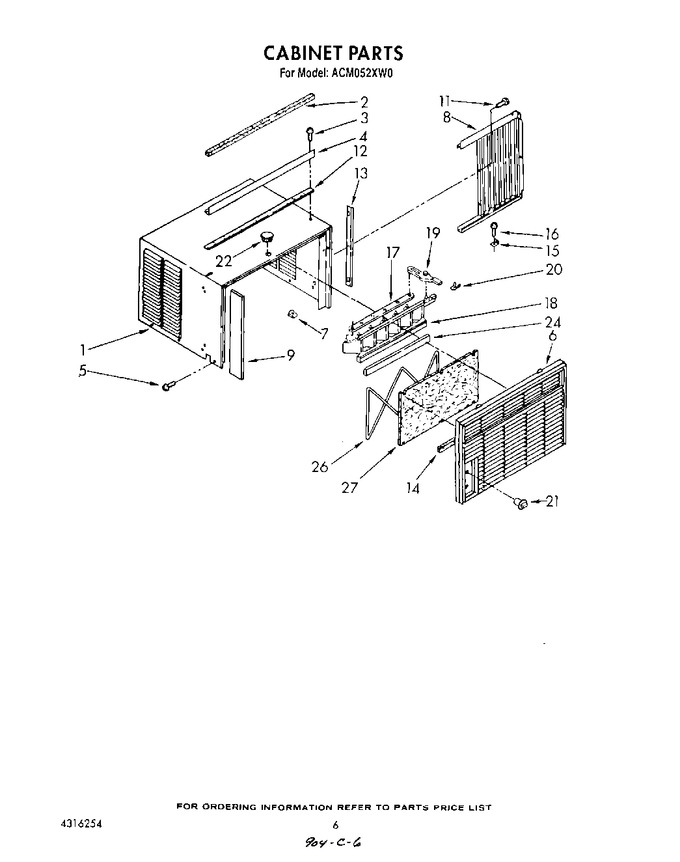

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1157276		Cabinet		Appelez-nous	-
2	469877		Gasket, Meeting Rail		Appelez-nous	-
3	WP308685		Screw, (2)   (Replaces: 488720)			Immediately	$ 7.08
4	993849		Channel, Top		Appelez-nous	-
5	WP489128		Screw, St 8-32 X 3/8 (6)   (Replaces: 488875)				$ 10.26
6	950408		Front, Cabinet Assembly		Appelez-nous	-
7	1158294		Clip		Appelez-nous	-
8	646154		Curtain (r.s.)		Appelez-nous	-
8	646158		Curtain (l.s.)		Appelez-nous	-
9	950169		Insulation, Side		Appelez-nous	-
11	488730		Screw No.8 X 7/16 (2)		Appelez-nous	-
12	856990		Seal, Strip		Appelez-nous	-
13	646160		Retainer, Curtain		Appelez-nous	-
14	WP854334		Seal, Cabinet Front   (Replaces: 949090)				$ 12.55
15	644228		Bracket, Window		Appelez-nous	-
16	488255		Screw, 8 X 3/4		Appelez-nous	-
17	645684		Link, Louver (2)		Appelez-nous	-
18	1158325		Louver, Vertical		Appelez-nous	-
19	645683		Handle, Louver (2)		Appelez-nous	-
20	641484		Spring, Detent (1)				$ 150.14
21	951156		Knob, Control		Appelez-nous	-
22	1157126		Cover, Hole		Appelez-nous	-
24	855238		Seal, Vertical Louver		Appelez-nous	-
26	646963		Retainer, Filter		Appelez-nous	-
27	646962		Filter		Appelez-nous	-
