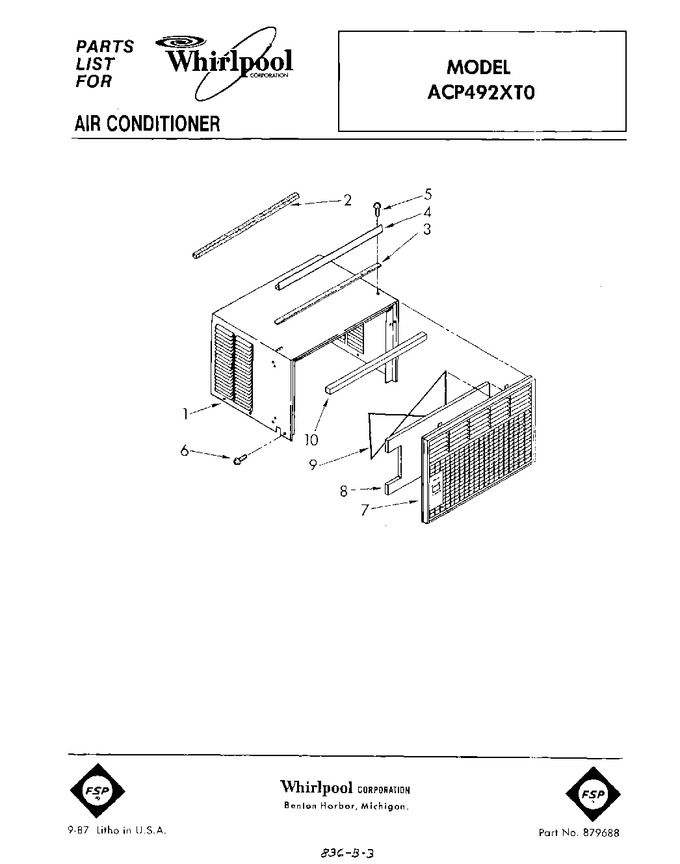

01 - Cabinet
02 - Unit , Literature
03 - Air Flow And Control
04 - Optional
05 - Accessory Kit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 857903 | Cabinet |
|
- | |||||
| 2 | 857777 | Seal, Rear Cabinet Flange |
|
- | |||||
| 3 | 856990 | Seal, Top Mtg. Channel |
|
- | |||||
| 4 | 646985 | Channel, Top Mtg. |
|
- | |||||
| 5 | 488506 | Screw, Sm No.10 X 3/4 (2) |
|
- | |||||
| 6 | WP489128 | Screw, St 8-32 X 3/8 (7) (Replaces: 488875) |
|
$ 10.26 | |||||
| 7 | 950306 | Front, Cabinet |
|
- | |||||
| 8 | 854925 | Filter, Air |
|
- | |||||
| 9 | 646963 | Retainer, Filter |
|
- | |||||
| 10 | WP854334 | Seal, Front (Replaces: 853581) |
|
$ 12.55 |
