SELECT A DIAGRAM

01 - Cabinet


02 - Unit , Literature


03 - Air Flow And Control


04 - Optional


05 - Accessory Kit

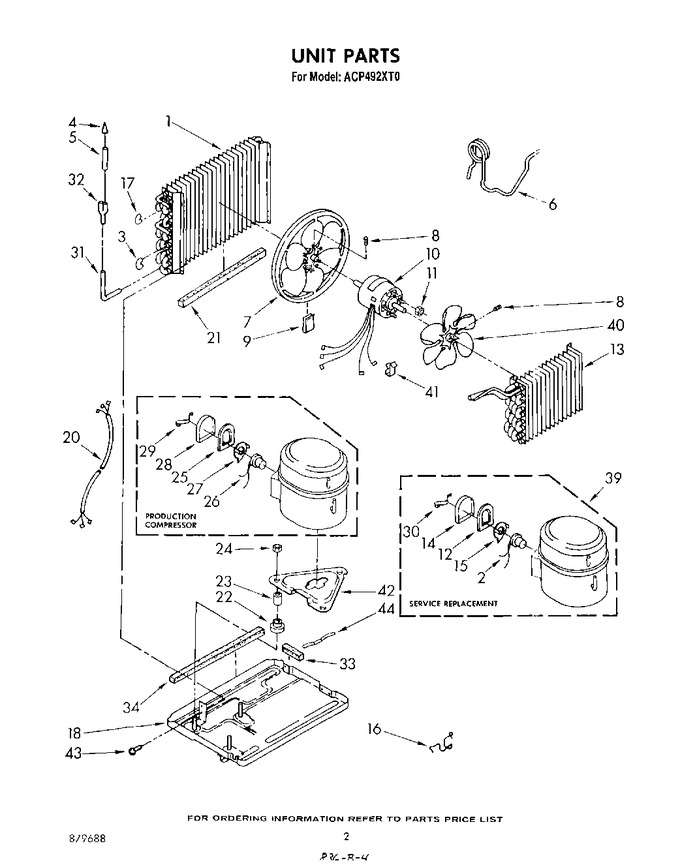

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	1155727		Condenser		Appelez-nous	-
2	798479		Overload		Appelez-nous	-
3	708532		Bend, Return (4)		Appelez-nous	-
4	49599		Strainer		Appelez-nous	-
5	484230		Tube & Strainer (includes Illus. 4)		Appelez-nous	-
6	950961		Tube, Restrictor (length 40.0``)		Appelez-nous	-
7	1155859		Blade, Fan		Appelez-nous	-
8	595085		Setscrew, 5/16 X 1/4		Appelez-nous	-
9	485334		Clip, Balancing		Appelez-nous	-
10	1156161		Motor, Fan		Appelez-nous	-
11	WP488130		Nut, Hex 8-32 (4)   (Replaces: 488130)				$ 6.59
12	643296		Gasket, Cover		Appelez-nous	-
13	950243		Evaporator		Appelez-nous	-
14	643297		Cover, Terminal		Appelez-nous	-
15	643298		Spring, Overload		Appelez-nous	-
16	949634		Clip, Cabinet Front Mtg. (8)		Appelez-nous	-
17	708531		Bend, Return (13)		Appelez-nous	-
18	950323		Base				$ 30.30
20	484136		Harness, Wiring		Appelez-nous	-
21	WP854334		Seal, Condensate (condenser Bottom)   (Replaces: 852063)				$ 12.55
22	646499		Grommet (3)		Appelez-nous	-
23	949990		Sleeve (3)		Appelez-nous	-
24	858121		Locknut (3)		Appelez-nous	-
25	643296		Gasket, Terminal Cover		Appelez-nous	-
26	949996		Overload		Appelez-nous	-
27	949997		Spring, Overload		Appelez-nous	-
28	949999		Cover, Terminal		Appelez-nous	-
29	950005		Retainer, Terminal Cover		Appelez-nous	-
30	643299		Retainer, Cover		Appelez-nous	-
31	1155519		Tube, 90~ Connect		Appelez-nous	-
32	947364		Tube, Flow Divider		Appelez-nous	-
33	646870		Seal, Condensate (condenser Bottom)		Appelez-nous	-
34	854841		Seal, Strip (base Rear Flange)		Appelez-nous	-
39	819075		Compressor Assembly		Appelez-nous	-
40	1155558		Fan, Blade Evaporator		Appelez-nous	-
41	852451		Clamp, Wiring		Appelez-nous	-
42	949975		Plate, Mounting Compressor		Appelez-nous	-
43	488481		Screw, Repair		Appelez-nous	-
43	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
44	643179		Spring, Mounting		Appelez-nous	-
	LIT879688		List, Repair Parts		Appelez-nous	-
	LIT1156486		Guide, Energy		Appelez-nous	-
	LIT950354		Guide, Use And Care		Appelez-nous	-
	LIT1950501		Sheet, Tech And Wiring Diagram		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
