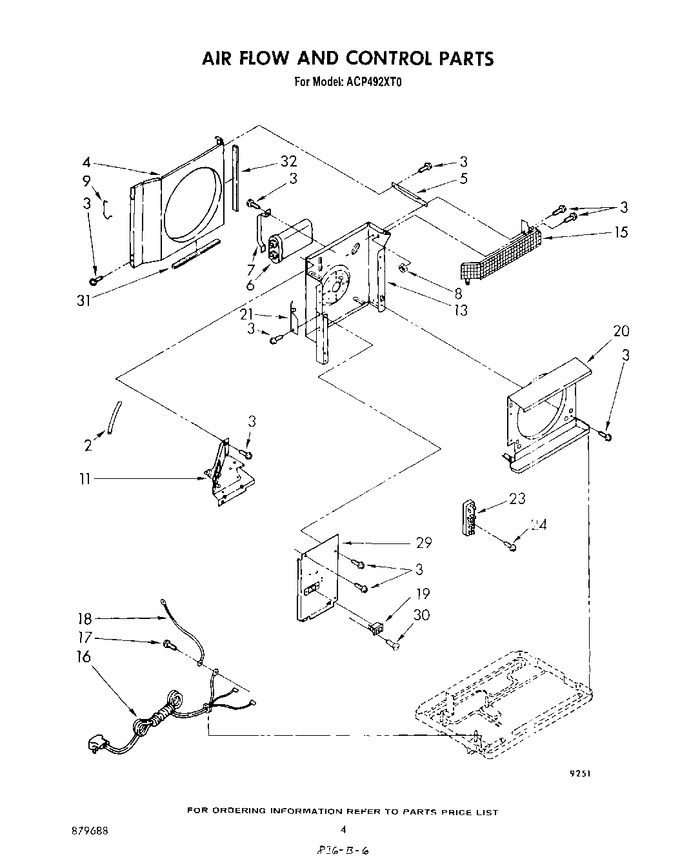

SELECT A DIAGRAM

01 - Cabinet


02 - Unit , Literature


03 - Air Flow And Control


04 - Optional


05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
2	212643		Sealer, Tube   (Replaces: 859934)			Immediately	$ 86.78
3	488481		Screw, Repair		Appelez-nous	-
3	WP489069		Screw, 8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
4	646297		Shroud, Condenser		Appelez-nous	-
5	649879		Support, Unit		Appelez-nous	-
6	999760		Capacitor, Running		Appelez-nous	-
7	856105		Bracket, Capacitor		Appelez-nous	-
8	486288		Nut, Speed No.8a		Appelez-nous	-
9	477442		Clip, Shroud		Appelez-nous	-
11	646774		Extension, Dividing Wall		Appelez-nous	-
13	859822		Wall, Dividing		Appelez-nous	-
15	996685		Guard, Evaporator Impeller		Appelez-nous	-
16	647216		Cord, Appliance		Appelez-nous	-
17	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
18	856094		Wire, Ground		Appelez-nous	-
19	649384		Switch, Rocker		Appelez-nous	-
20	646123		Shroud, Evaporator		Appelez-nous	-
21	859890		Plate, Dividing Wall		Appelez-nous	-
23	855634		Board, Terminal		Appelez-nous	-
24	488966		Screw, S.m.no.6 X 3/8		Appelez-nous	-
29	648969		Panel, Control		Appelez-nous	-
30	488734		Screw, 6-32 X .175		Appelez-nous	-
31	859931		Seal, Condenser		Appelez-nous	-
32	857923		Seal, Condenser (r.s.)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
