SELECT A DIAGRAM

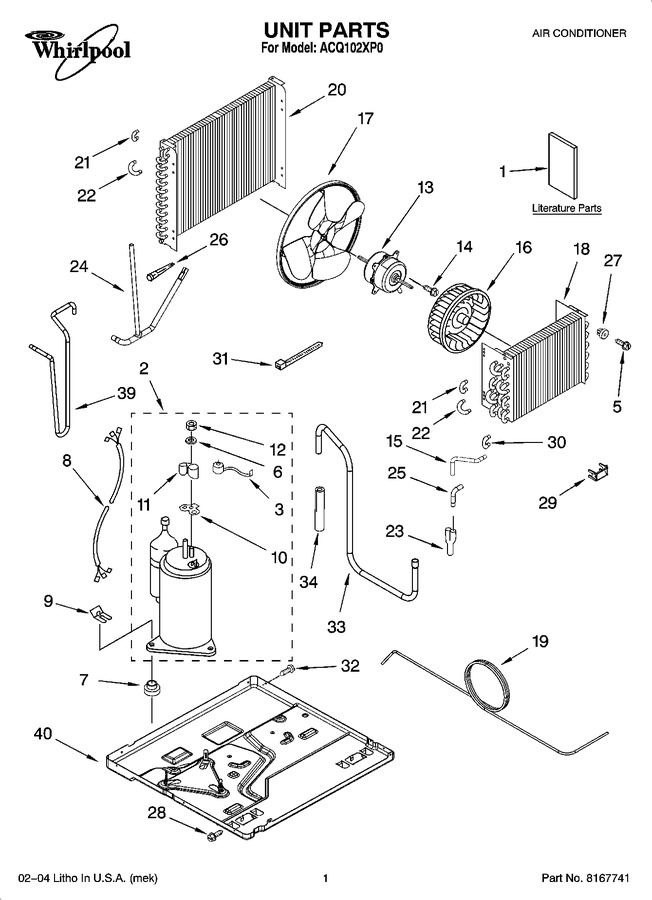

01 - Unit Parts


02 - Air Flow And Control Parts


03 - Cabinet Parts


04 - Optional Parts (not Included)


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	LIT1185264		Literature Parts (wiring Diagram)		Appelez-nous	-
1	LIT1187360		Use & Care Guide		Appelez-nous	-
1	LIT1187701		Energy Guide		Appelez-nous	-
2	1187209		Compressor		Appelez-nous	-
3	1186660		Overload		Appelez-nous	-
5	WP489463		Screw   (Replaces: 8533969)				$ 7.43
6	1182120		Gasket		Appelez-nous	-
7	950212		Grommet		Appelez-nous	-
8	1187606		Wiring Harness, Compressor		Appelez-nous	-
9	8011446		Clip, Compressor		Appelez-nous	-
10	1182118		Gasket, Terminal Cover		Appelez-nous	-
11	1184748		Cover, Terminal		Appelez-nous	-
12	W10833054		Nut, Hex   (Replaces: 1186128)		Appelez-nous	-
13	1187170		Motor, Fan				$ 181.22
14	WPW10109200		Screw   (Replaces: 8533943)			Immediately	$ 7.92
15	1187735		Tube, Feeder		Appelez-nous	-
16	1187144		Wheel, Blower		Appelez-nous	-
17	1187142		Blade, Fan		Appelez-nous	-
18	1187128		Evaporator		Appelez-nous	-
19	1187590		Tube, Restrictor		Appelez-nous	-
20	1187125		Condenser		Appelez-nous	-
21	8031223		Bend, Return Evaporator (9) Condenser (14)		Appelez-nous	-
22	8031222		Bend, Return		Appelez-nous	-
23	1187534		Tube, Flow Divider		Appelez-nous	-
24	1187613		Tube, Outlet		Appelez-nous	-
25	1187740		Tube, Feeder		Appelez-nous	-
26	WP1162526		Strainer, Tube   (Replaces: 1162526)				$ 75.98
27	1187495		Grommet, Screw		Appelez-nous	-
28	488624		Screw		Appelez-nous	-
29	1185337		Clip, Anticipator		Appelez-nous	-
30	1187580		Bend, Return		Appelez-nous	-
31	WPW10339879		Tie, Cable   (Replaces: 857547)				$ 7.47
32	WP488729		Screw   (Replaces: 487910)			Immediately	$ 7.45
33	1187694		Tube, Suction (includes Item 34)		Appelez-nous	-
34	1187635		Seal, Suction Tube		Appelez-nous	-
39	1187752		Tube, Discharge		Appelez-nous	-
40	1187127		Base		Appelez-nous	-
