Diagram # Part Number Description Series Availability Ships Price Add to Cart
1 WP489069 Screw   (Replaces: 1157158) In-Stock Immediately $ 7.56

2 WP3196557 Screw   (Replaces: 1168744) In-Stock Immediately $ 7.16

3 WP1186509 Capacitor, Running   (Replaces: 1187476) Special Order $ 219.99

4 489392 Screw   (Replaces: 3400638) Special Order $ 12.62

5 WP489478 Screw,   (Replaces: 8533835) Special Order $ 7.36

6 1187690 Seal, Control Box Appelez-nous -
7 1187146 Hood, Air Housing Appelez-nous -
9 1187145 Housing, Top Appelez-nous -
14 1187124 Shroud, Condenser Appelez-nous -
17 1187147 Box, Control Appelez-nous -
19 1187173 Panel, Control Appelez-nous -
20 1187143 Housing, Air- Bottom Appelez-nous -
25 1159222 Screw Appelez-nous -
26 1187416 Cable, Appliance Appelez-nous -
27 1187375 Thermistor Appelez-nous -

    View Diagram in Separate Window     Print Icon   Print Part List

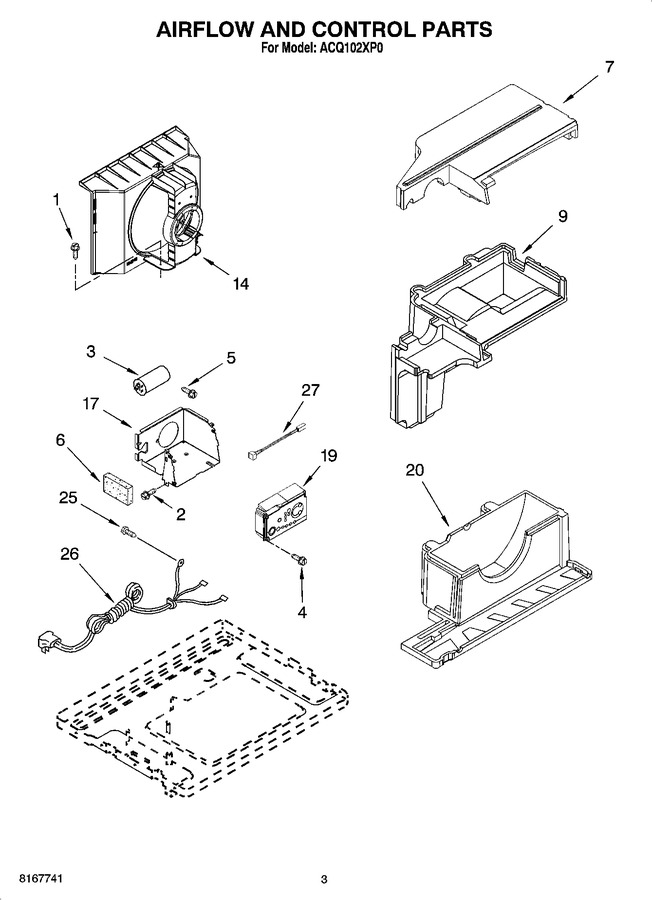

Diagram for ACQ102XP0
