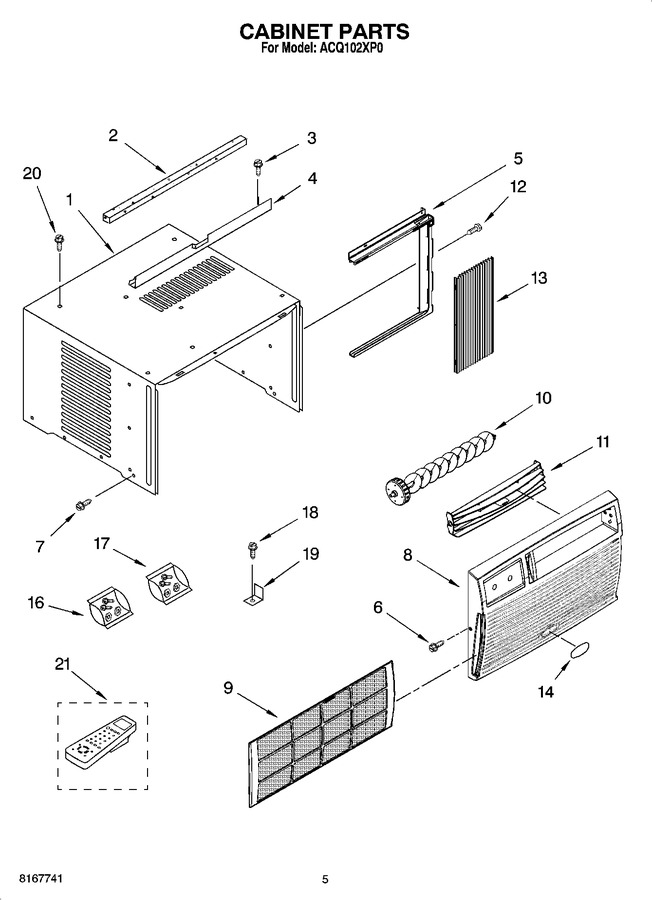

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 1187130 | Cabinet |
|
- | |||||
| 2 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 3 | WP3390631 | Screw, 10-12 X .375 (Replaces: 309112) |
|
$ 7.43 | |||||
| 4 | 1187139 | Channel, Top |
|
- | |||||
| 5 | 1187166 | Frame, Curtain (left Side) |
|
- | |||||
| 5 | 1187165 | Frame, Curtain (right Side) |
|
- | |||||
| 6 | WP3196557 | Screw (Replaces: 1168744) |
|
Immediately | $ 7.16 | ||||
| 7 | 488624 | Screw, 8-15 X .375 |
|
- | |||||
| 8 | 1187161 | Front |
|
- | |||||
| 9 | 1187133 | Filter |
|
$ 8.68 | |||||
| 10 | 1187138 | Louver, Vertical |
|
- | |||||
| 11 | 1187137 | Louver Horizontal |
|
- | |||||
| 12 | WP965173 | Screw, 8-18 X .375 (Replaces: 246132) |
|
Immediately | $ 10.68 | ||||
| 13 | 1187167 | Curtain |
|
- | |||||
| 14 | WP2213265 | Nameplate (Replaces: 1187169) |
|
Immediately | $ 83.86 | ||||
| 16 | 1187644 | Bag, Accessory |
|
- | |||||
| 17 | 1185948 | Bag, Accessory (for Curtains) |
|
- | |||||
| 18 | 488255 | Screw, Wood 8-15 X .750 |
|
- | |||||
| 19 | 644228 | Bracket, Window Lock |
|
- | |||||
| 20 | WP9740848 | Screw (Replaces: 9740848) |
|
Immediately | $ 7.72 | ||||
| 21 | 1186156 | Control, Remote |
|
- |
