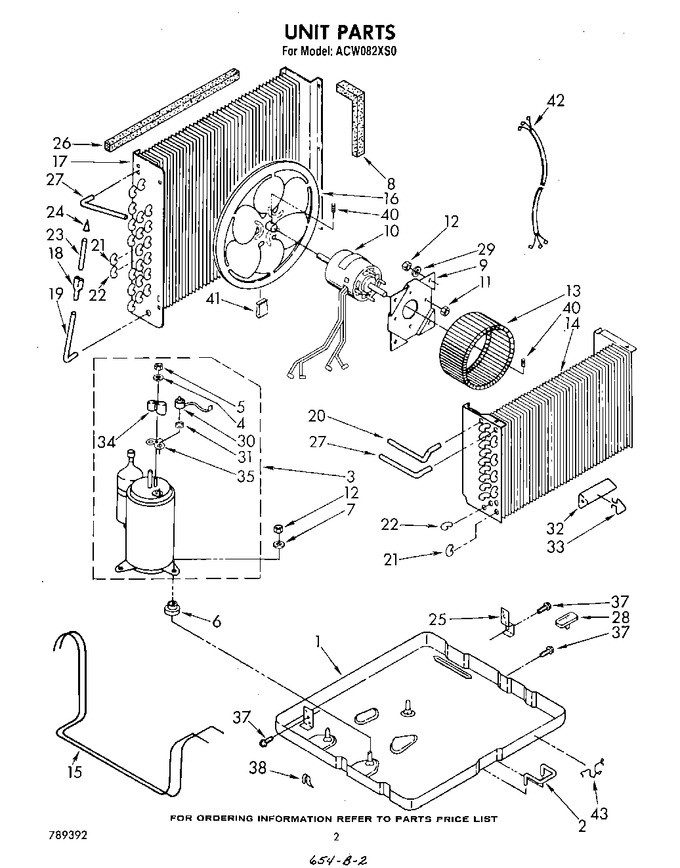

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 951481 | Base |
|
- | |||||
| 2 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 3 | 813535 | Compressor |
|
- | |||||
| 4 | 950037 | Gasket, Nut |
|
- | |||||
| 5 | WP950027 | Nut, Hex (Replaces: 950027) |
|
$ 5.20 | |||||
| 6 | WP950021 | Grommet (3) (Replaces: 950021) |
|
$ 78.99 | |||||
| 7 | 489108 | Washer (3) |
|
- | |||||
| 8 | 649610 | Seal, Condenser |
|
- | |||||
| 9 | 998024 | Plate, Fan Motor |
|
- | |||||
| 10 | 949054 | Motor, Fan |
|
- | |||||
| 11 | WP488130 | Nut, Hex Keps 8-32 (4) (Replaces: 488130) |
|
$ 6.59 | |||||
| 12 | 858122 | Nut, Lock |
|
- | |||||
| 13 | 859495 | Wheel, Blower |
|
- | |||||
| 14 | 951669 | Evaporator |
|
- | |||||
| 15 | 951487 | Tube, Restrictor (length 25.5``) |
|
- | |||||
| 16 | 859496 | Blade, Fan |
|
- | |||||
| 17 | 951488 | Condenser |
|
- | |||||
| 18 | 947364 | Tube, Flow Divider |
|
- | |||||
| 19 | 950814 | Tube, Outlet |
|
- | |||||
| 20 | 852454 | Tube, Inlet |
|
- | |||||
| 21 | 855199 | Bend, Return Condenser (18) Evaporator (5) |
|
- | |||||
| 22 | 854624 | Bend, Return Condenser (4) Evaporator (10) |
|
- | |||||
| 23 | 484230 | Tube, Outlet (includes No.24) |
|
- | |||||
| 24 | 49599 | Strainer |
|
- | |||||
| 25 | 647824 | Condenser, Support (r.s.) |
|
- | |||||
| 26 | 649609 | Seal, Condenser |
|
- | |||||
| 27 | 647949 | Tube, Outlet |
|
- | |||||
| 28 | 647850 | Cup, Condensate |
|
- | |||||
| 29 | 470280 | Washer, Shim |
|
- | |||||
| 30 | WP1161170 | Overload (Replaces: 951494) |
|
$ 84.72 | |||||
| 31 | 950032 | Spring, Overload |
|
- | |||||
| 32 | 475573 | Anticipator, Temperature |
|
- | |||||
| 33 | 475577 | Clip, Anticipator |
|
- | |||||
| 34 | WP950036 | Cover, Terminal (Replaces: 950213) |
|
$ 9.83 | |||||
| 35 | WP950035 | Gasket, Cover (Replaces: 950035) |
|
$ 78.01 | |||||
| 37 | WP489069 | Screw, Sheet Metal No.8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 38 | 642684 | Clamp, Restrictor Tube |
|
- | |||||
| 40 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 41 | 876034 | Clip, Balancing |
|
- | |||||
| 42 | 484136 | Harness, Wiring |
|
- | |||||
| 43 | 949634 | Clip, Cabinet Front Mtg (2) |
|
- | |||||
| LIT951496 | Sheet, Tech And Wiring Diagram |
|
- | ||||||
| LIT1155971 | Guide, Use & Care Installation |
|
- | ||||||
| LIT789392 | List, Repair Parts |
|
- | ||||||
| LIT1155967 | Guide, Energy |
|
- |
