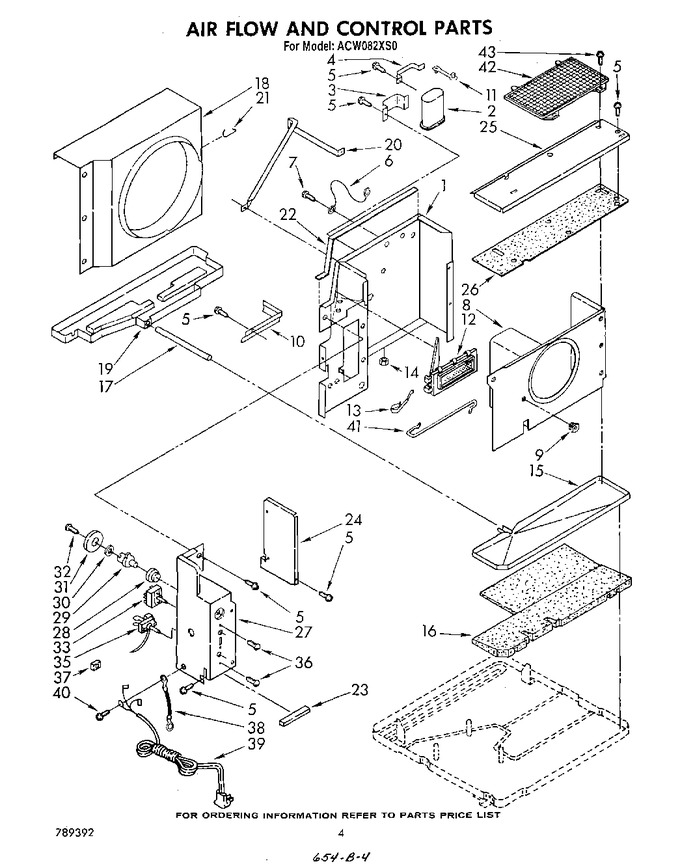

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	998003		Wall, Dividing		Appelez-nous	-
2	999773		Capacitor, Running		Appelez-nous	-
3	852992		Bracket, Running Capacitor		Appelez-nous	-
4	475844		Bracket, Running Capacitor		Appelez-nous	-
5	WP489069		Screw, S.m.no.8 X 1/2   (Replaces: 488480)			Immediately	$ 7.56
6	948285		Wire, Capacitor Ground		Appelez-nous	-
7	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
8	852875		Housing, Blower Wheel		Appelez-nous	-
9	487808		Fastener, Snap (2)		Appelez-nous	-
10	852317		Channel, Wiring		Appelez-nous	-
11	648791		Clamp, Cable		Appelez-nous	-
12	649720		Door, Exhaust		Appelez-nous	-
13	859369		Spring, Exhaust Door		Appelez-nous	-
14	853831		Clip, Speed		Appelez-nous	-
15	853268		Pan, Evaporator Condensate		Appelez-nous	-
16	853269		Insulation, Condensate Pan		Appelez-nous	-
17	49181		Tube, Condensate		Appelez-nous	-
18	647862		Shroud, Condenser		Appelez-nous	-
19	859238		Pan, Condenser Condensate		Appelez-nous	-
20	852318		Support, Unit		Appelez-nous	-
21	647873		Retainer, Shroud Cover (3)		Appelez-nous	-
22	WP854334		Seal, Dividing Wall (top)   (Replaces: 950155)				$ 12.55
23	WP854334		Seal, Control Box   (Replaces: 949379)				$ 12.55
24	852994		Wall, Dividing L.s.		Appelez-nous	-
25	856957		Cover, Evaporator		Appelez-nous	-
26	948410		Insulation, Evaporator Cover		Appelez-nous	-
27	994174		Box, Control		Appelez-nous	-
28	647879		Bushing, Control Shaft		Appelez-nous	-
29	852023		Shaft, Control		Appelez-nous	-
30	00647881		Washer, Spring   (Replaces: 647881)				$ 366.51
31	647882		Cam, Control		Appelez-nous	-
32	WP98165		Screw, 8-16 X 5/8   (Replaces: 489130)				$ 7.71
33	950523		Switch, Rotary		Appelez-nous	-
35	949431		Control, Tempetature		Appelez-nous	-
36	488734		Screw, Mach 6-32 X .175 (2)		Appelez-nous	-
37	647865		Grommet, Wiring		Appelez-nous	-
38	857634		Wire, Ground		Appelez-nous	-
39	648535		Cable, Appliance		Appelez-nous	-
40	WPW10141604		Screw, 8-32 X 3/8   (Replaces: 487871)				$ 7.97
41	859370		Wire, Control		Appelez-nous	-
42	997949		Guard, Blower Wheel		Appelez-nous	-
43	WP488729		Screw, Sems Sm No.8 X 1/2a (2)   (Replaces: 487910)			Immediately	$ 7.45
