View Diagram in Separate Window
Print Part List
SELECT A DIAGRAM

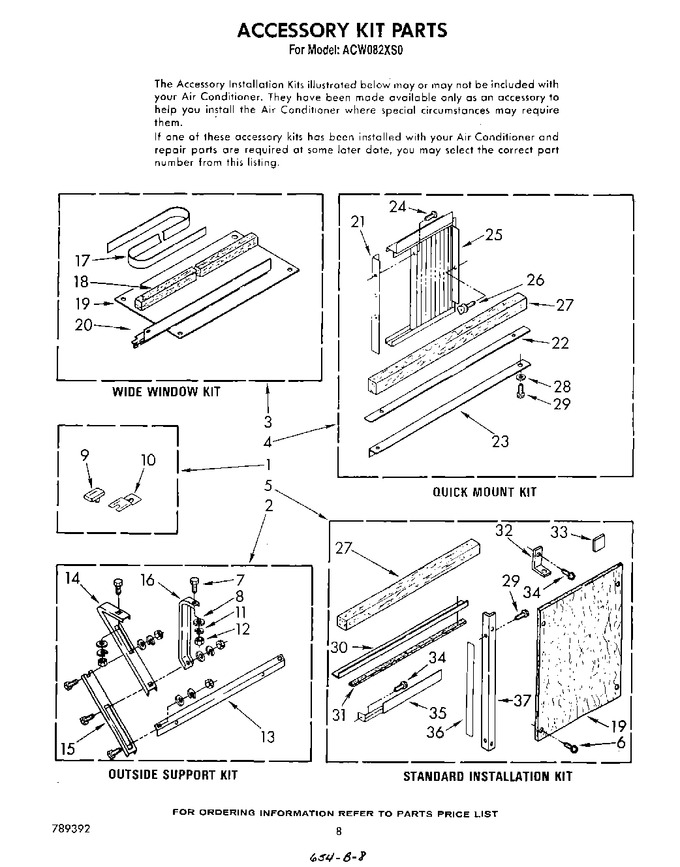

02 - Unit
03 - Air Flow And Control
04 - Front, Cabinet
05 - Lit/optional
06 - Accessory Kit
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 978929 | Kit, Condensate Cup |
|
- | |||||
| 2 | 485679 | Kit, Outside Support |
|
- | |||||
| 3 | 485676 | Kit, Wide Window |
|
- | |||||
| 4 | 485675 | Kit, Quick Mount |
|
- | |||||
| 5 | 485674 | Kit, Standard Installation |
|
- | |||||
| 6 | WP965173 | Screw, No.8 X 3/8 (6) (Replaces: 488017) |
|
Immediately | $ 10.68 | ||||
| 7 | 488750 | Bolt, 1/4-20 X 3/4 |
|
- | |||||
| 8 | 488808 | Washer |
|
- | |||||
| 9 | 647850 | Cup, Condensate |
|
- | |||||
| 10 | 995075 | Support, Cup |
|
- | |||||
| 11 | 486009 | Lockwasher |
|
- | |||||
| 12 | 486035 | Nut, 1/4-20 |
|
- | |||||
| 13 | 644281 | Bracket, Cabinet Support |
|
- | |||||
| 14 | 12035780 | Support, Cabinet (2) (Replaces: 644283) |
|
Immediately | $ 345.77 | ||||
| 15 | 00644284 | Extension, Support (2) (Replaces: 644284) |
|
$ 34.20 | |||||
| 16 | 644285 | Retainer, Support (2) |
|
- | |||||
| 17 | 855265 | Strip, Seal |
|
- | |||||
| 18 | 479158 | Gasket, Meeting Rail |
|
- | |||||
| 19 | 647835 | Board, Filler (2) |
|
- | |||||
| 20 | 485454 | Bracket, Mounting (r.s.) |
|
- | |||||
| 20 | 485455 | Bracket, Mounting (l.s.) |
|
- | |||||
| 21 | 644388 | Retainer, Curtain (2) |
|
- | |||||
| 22 | 477597 | Strip, Seal |
|
$ 6.29 | |||||
| 23 | 644387 | Channel, Bottom Mounting |
|
- | |||||
| 24 | 488730 | Screw, Sm No.8 X 7/16a (6) |
|
- | |||||
| 25 | 647841 | Curtain Housing Assembly, L.s. |
|
- | |||||
| 25 | 647840 | Curtain Housing Assembly, R.s. |
|
- | |||||
| 26 | 475581 | Thumbscrew (2) |
|
- | |||||
| 27 | 469877 | Seal, Meeting Rail |
|
- | |||||
| 28 | 488520 | Washer (2) |
|
- | |||||
| 29 | WP308685 | Screw, Sm No.10 X 1/2 (Replaces: 488720) |
|
Immediately | $ 7.08 | ||||
| 30 | 644380 | Channel, Top Mounting |
|
- | |||||
| 31 | 855265 | Seal |
|
- | |||||
| 32 | 644228 | Bracket, Window Lock |
|
- | |||||
| 33 | 995274 | Block, Spacer (4) |
|
- | |||||
| 34 | 488255 | Wood Screw, No.8 X 3/4 (5) |
|
- | |||||
| 35 | 645562 | Bracket, R.s. |
|
- | |||||
| 35 | 645563 | Bracket, L.s. |
|
- | |||||
| 36 | 856979 | Strip, Seal |
|
- | |||||
| 37 | 978930 | Instructions, Installation (kit, Condensate Cup) |
|
- | |||||
| 37 | 645564 | Angle, Side Mounting (2) |
|
- | |||||
| 37 | 485687 | Instructions, Installation (kit, Quick Mount) |
|
- | |||||
| 37 | 485688 | Instructions, Installation (kit, Wide Window) |
|
- | |||||
| 37 | 485707 | Instructions, Installation (kit, Outside Support) |
|
- | |||||
| 37 | 993380 | Instructions, Installation (kit, Standard Installation) |
|
- |
