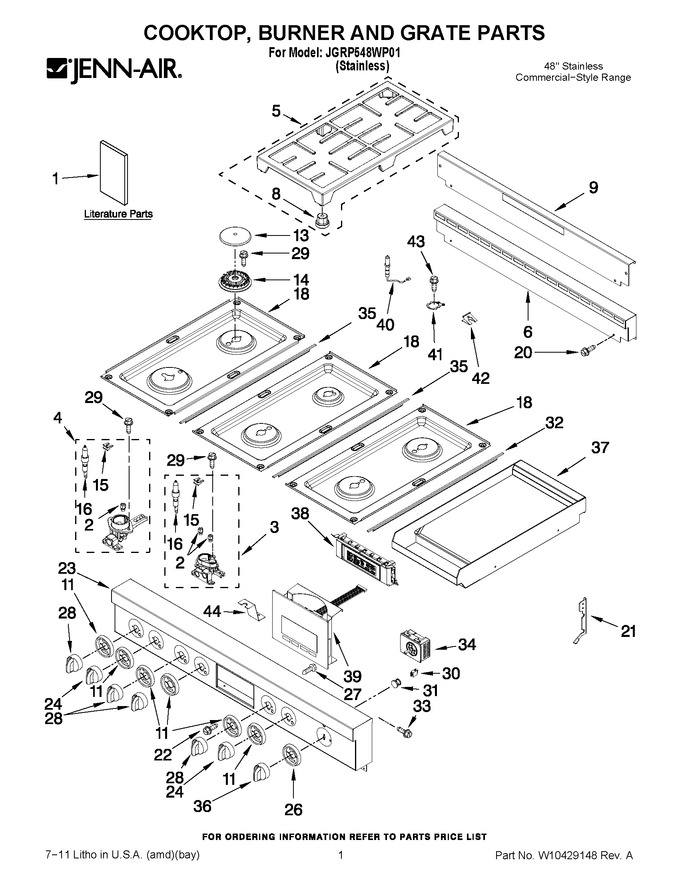

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10065852 | Safer Cooking Tips (french) |
|
- | |||||
| 1 | W10403310 | Tech Sheet (english) |
|
- | |||||
| 1 | W10403311 | Tech Sheet (french) |
|
- | |||||
| 1 | W10399389 | Use & Care Guide |
|
- | |||||
| 1 | W10394575 | Installation Instructions |
|
- | |||||
| 1 | 9762761 | Safer Cooking Tips (english) |
|
- | |||||
| 2 | W10791075 | Orifice (cr) (Replaces: W10282663) |
|
$ 93.31 | |||||
| 2 | W11051480 | Orifice (lr,cf,rr) (Replaces: W10364221) |
|
$ 81.62 | |||||
| 2 | W10819958 | Orifice (lf,rf - Low) (Replaces: W10256132) |
|
$ 87.99 | |||||
| 2 | W10340424 | Orifice (lf,rf - High) |
|
$ 84.30 | |||||
| 3 | WPW10364555 | Orifice Holder (dual-lf,rf) (Replaces: W10364555) |
|
$ 102.08 | |||||
| 4 | W10282659 | Orifice Holder (cr) |
|
$ 36.45 | |||||
| 4 | WPW10364556 | Orifice Holder (lr,cf,rr) (Replaces: W10364556) |
|
$ 92.15 | |||||
| 5 | W11344501 | Grate, Burner (Replaces: W10276551) |
|
Immediately | $ 196.45 | ||||
| 6 | W10323251 | Trim, Island |
|
$ 318.88 | |||||
| 8 | W10185266 | Rubber, Foot (Replaces: 8286695) |
|
Immediately | $ 13.92 | ||||
| 9 | W10323252 | Trim, Island Insert |
|
$ 187.05 | |||||
| 13 | WPW10256032 | Cap, Burner (lr,cf,rr) (Replaces: W10256032) |
|
Immediately | $ 79.54 | ||||
| 13 | WPW10364463 | Cap, Burner (cr) (Replaces: W10364463) |
|
Immediately | $ 50.27 | ||||
| 13 | WPW10256034 | Cap, Burner (lf,rf) (Replaces: W10256034) |
|
$ 124.37 | |||||
| 14 | WPW10256027 | Base, Burner (lr,cf,rr) (Replaces: W10256027) |
|
Immediately | $ 90.92 | ||||
| 14 | WPW10282515 | Base, Burner (cr) (Replaces: W10282515) |
|
Immediately | $ 134.88 | ||||
| 14 | W11106799 | Base, Burner (lf,rf) (Replaces: W10256029) |
|
Immediately | $ 87.49 | ||||
| 15 | W10256046 | Spring, Electrode |
|
$ 10.40 | |||||
| 16 | W10833887 | Electrode Lf,rf,lr,cf,rr (Replaces: W10256047) |
|
Immediately | $ 45.59 | ||||
| 18 | W10352966 | Cooktop (right) |
|
$ 288.39 | |||||
| 18 | W10352963 | Cooktop (center) |
|
$ 317.55 | |||||
| 18 | W10352969 | Cooktop (left) |
|
$ 302.18 | |||||
| 20 | W11233072 | Screw (Replaces: 7101P338-60) |
|
Immediately | $ 13.25 | ||||
| 21 | W10130759 | Bracket, Moving Console (right) |
|
$ 68.35 | |||||
| 21 | W10130760 | Bracket,moving Console (left) |
|
$ 68.35 | |||||
| 22 | WP74003976 | Screw (Replaces: 7101P500-60) |
|
$ 6.80 | |||||
| 23 | W10295787 | Assembly, Console |
|
- | |||||
| 24 | W10145568 | Knob, Control (dual-lf,rf) |
|
$ 47.63 | |||||
| 26 | W10145453 | Bezel, Griddle |
|
$ 72.38 | |||||
| 27 | W11676349 | Screw (Replaces: 8286921) |
|
Immediately | $ 13.28 | ||||
| 28 | W10145454 | Knob, Control |
|
$ 42.25 | |||||
| 29 | WP3177991 | Screw (Replaces: 3177991) |
|
Immediately | $ 6.80 | ||||
| 30 | W10116114 | Light, Indicator Housing |
|
Immediately | $ 84.21 | ||||
| 31 | W10294500 | Lens, Indicator Light |
|
$ 6.92 | |||||
| 32 | W10291193 | Trim, L-strip |
|
- | |||||
| 33 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 34 | WPW10116113 | Control, Griddle (Replaces: W10116113) |
|
$ 316.77 | |||||
| 35 | W10271524 | Trim, T-strip |
|
$ 191.11 | |||||
| 36 | W10145566 | Knob, Griddle |
|
Immediately | $ 46.49 | ||||
| 37 | W10625221 | Module, Griddle (Replaces: W10276498) |
|
$ 1,311.59 | |||||
| 38 | WPW10145531 | User Interface (Replaces: W10145531) |
|
Immediately | $ 280.13 | ||||
| 39 | W10344182 | Keypad Assembly |
|
- | |||||
| 40 | W10854967 | Electrode, Wire Cr (Replaces: 8286725) |
|
Immediately | $ 43.54 | ||||
| 41 | 8286930 | Gasket, Orifice Holder |
|
$ 86.16 | |||||
| 42 | 8286863 | Spring, Electrode Cr |
|
$ 69.23 | |||||
| 43 | W10491985 | Screw (Replaces: 3196160) |
|
Immediately | $ 6.80 | ||||
| 44 | 3801F946-51 | Bracket, Orifice Support |
|
- |
