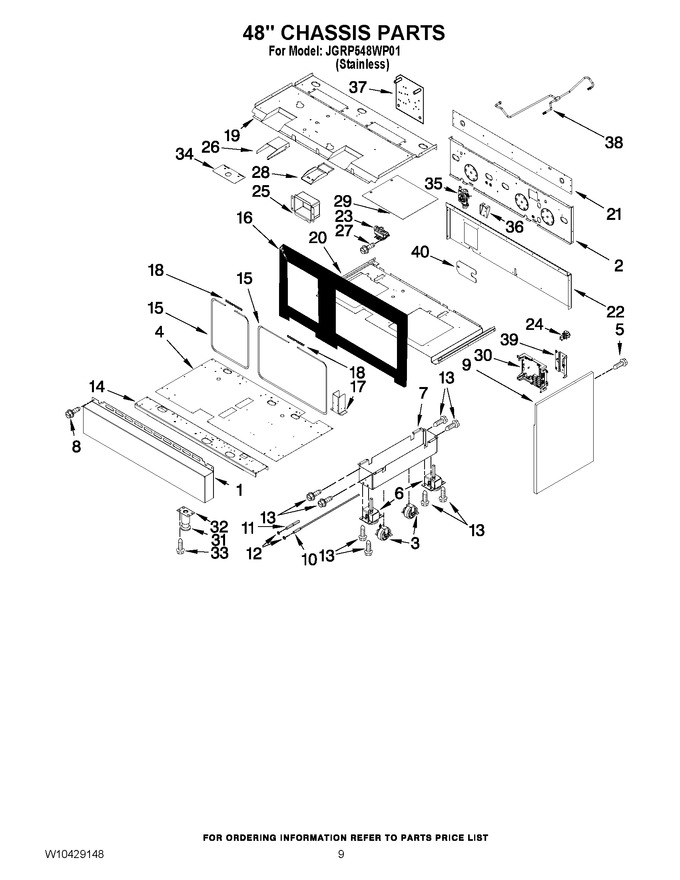

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WPW10145767 | Kickplate (Replaces: W10145767) |
|
$ 335.93 | |||||
| 2 | W10145354 | Back, Chassis |
|
- | |||||
| 3 | WPW10138054 | Roller, Assembly (Replaces: W10138054) |
|
$ 40.81 | |||||
| 4 | W10145378 | Duct, Bottom |
|
- | |||||
| 5 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 6 | W10859931 | Foot (Replaces: 9760860) |
|
$ 107.20 | |||||
| 7 | W10249333 | Base, Leveling Leg |
|
$ 263.00 | |||||
| 8 | WP3196557 | Screw (Replaces: 3196537) |
|
Immediately | $ 7.16 | ||||
| 9 | W10250466 | Panel, Side (right) |
|
$ 461.92 | |||||
| 9 | W11321067 | Panel, Side (left) (Replaces: W10250467) |
|
$ 395.43 | |||||
| 10 | W10115869 | Shaft, Long |
|
Immediately | $ 98.42 | ||||
| 11 | W10115793 | Shaft, Short |
|
$ 68.25 | |||||
| 12 | 489504 | E-ring |
|
$ 6.66 | |||||
| 13 | WPW10292297 | Screw (Replaces: W10292297) |
|
Immediately | $ 6.80 | ||||
| 14 | W10145375 | Support, Channel |
|
- | |||||
| 15 | W11675844 | Gasket, Front Frame (30``) (Replaces: W10160890) |
|
Immediately | $ 67.10 | ||||
| 15 | W10116039 | Gasket, Front Frame (18``) |
|
- | |||||
| 16 | W10160895 | Frame, Front |
|
- | |||||
| 17 | W10115819 | Column, Central |
|
- | |||||
| 18 | W10216520 | Retainer, Ss Gasket (18``) |
|
- | |||||
| 18 | W11368870 | Retainer, Ss Gasket (30``) (Replaces: W10157511) |
|
$ 22.42 | |||||
| 19 | W10145372 | Chassis, Top |
|
- | |||||
| 20 | W10145369 | Chassis, Bottom |
|
- | |||||
| 21 | W10321816 | Panel, Back Top |
|
- | |||||
| 22 | W10145390 | Panel, Back Bottom |
|
- | |||||
| 23 | W11239228 | Valve, Dual (Replaces: W10145680) |
|
Immediately | $ 303.26 | ||||
| 24 | W10311268 | Valve, Single |
|
Immediately | $ 332.65 | ||||
| 25 | W10308051 | Box, Broil |
|
- | |||||
| 26 | W10235557 | Drawer |
|
- | |||||
| 27 | WP90767 | Screw (Replaces: 7101P426-60) |
|
Immediately | $ 7.43 | ||||
| 28 | W10249337 | Support |
|
- | |||||
| 29 | W10239444 | Seal |
|
- | |||||
| 30 | W10888661 | Control (Replaces: W10335645) |
|
Immediately | $ 464.96 | ||||
| 31 | WP9759117 | Foot (Replaces: 9759117) |
|
$ 133.79 | |||||
| 32 | WP9759118 | Plate, Mounting Foot (Replaces: 9759118) |
|
$ 139.45 | |||||
| 33 | 3400518 | Screw |
|
$ 12.27 | |||||
| 34 | W10115855 | Holder, Strain Relief |
|
- | |||||
| 35 | W11193822 | Regulator, Pressure (Replaces: W10145584) |
|
Immediately | $ 267.81 | ||||
| 36 | W10308042 | Bracket, Pressure Regulator |
|
- | |||||
| 37 | WPW10331686 | Module, Spark (Replaces: 9758080) |
|
Immediately | $ 363.24 | ||||
| 38 | W10145704 | Tube, Valve Dual |
|
$ 199.05 | |||||
| 39 | W10145362 | Bracket, Board Dsi |
|
$ 73.20 | |||||
| 40 | W10145381 | Cover, Channel |
|
- |
