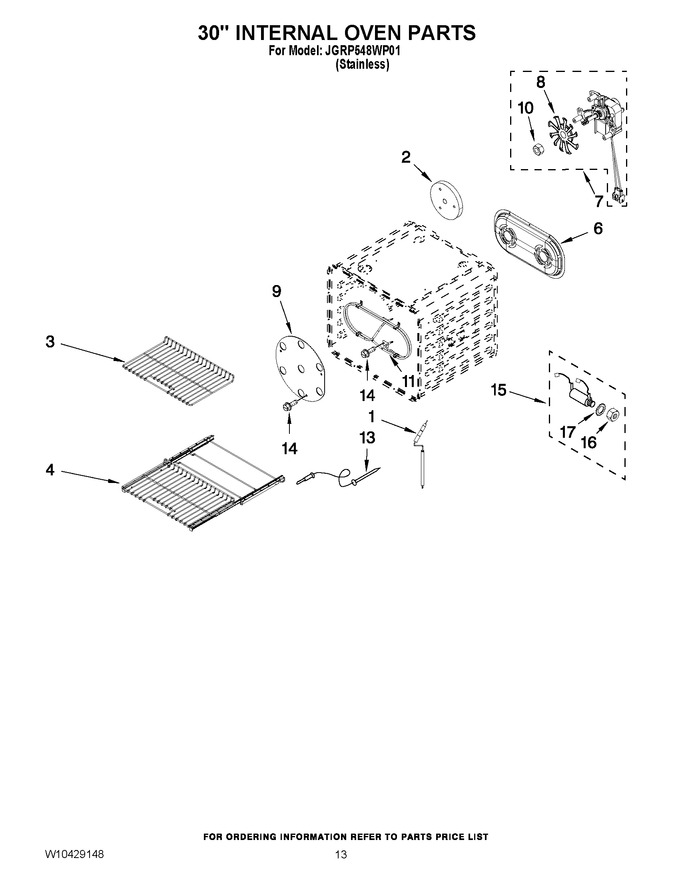

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11446096 | Electrode, Broil (Replaces: W10332287) |
|
Immediately | $ 75.62 | ||||
| 2 | W11688507 | Insulation, Convection Cover (Replaces: W10282821) |
|
Immediately | $ 24.39 | ||||
| 3 | W11550107 | Urso, Wire Rack (Replaces: W10284950) |
|
$ 105.40 | |||||
| 4 | W11186364 | Rack, Oven Sliding (Replaces: W10208155) |
|
$ 286.70 | |||||
| 6 | W10246060 | Baffle, Convection |
|
$ 167.44 | |||||
| 7 | W10794440 | Motor, Convection (Replaces: W10314406) |
|
Immediately | $ 299.07 | ||||
| 8 | W10758272 | Blade, Fan (Replaces: W10116351) |
|
Immediately | $ 7.12 | ||||
| 9 | W10261523 | Cover, Fan |
|
$ 70.07 | |||||
| 10 | WPW10116349 | Nut (Replaces: W10116349) |
|
$ 19.60 | |||||
| 11 | W11033310 | Element, Convection (Replaces: W10145949) |
|
$ 146.06 | |||||
| 13 | WP9755542 | Probe, Temperature (Replaces: 9755542) |
|
Immediately | $ 89.76 | ||||
| 14 | WP4449154 | Screw (Replaces: 4449154) |
|
$ 7.34 | |||||
| 15 | 8186589 | Jack, Meat Probe (Replaces: 9755543) |
|
$ 143.37 | |||||
| 16 | WP9755546 | Nut (Replaces: 9755546) |
|
$ 6.57 | |||||
| 17 | WP9755547 | Washer (Replaces: 9755547) |
|
$ 5.77 |
