SELECT A DIAGRAM
New Model Search:

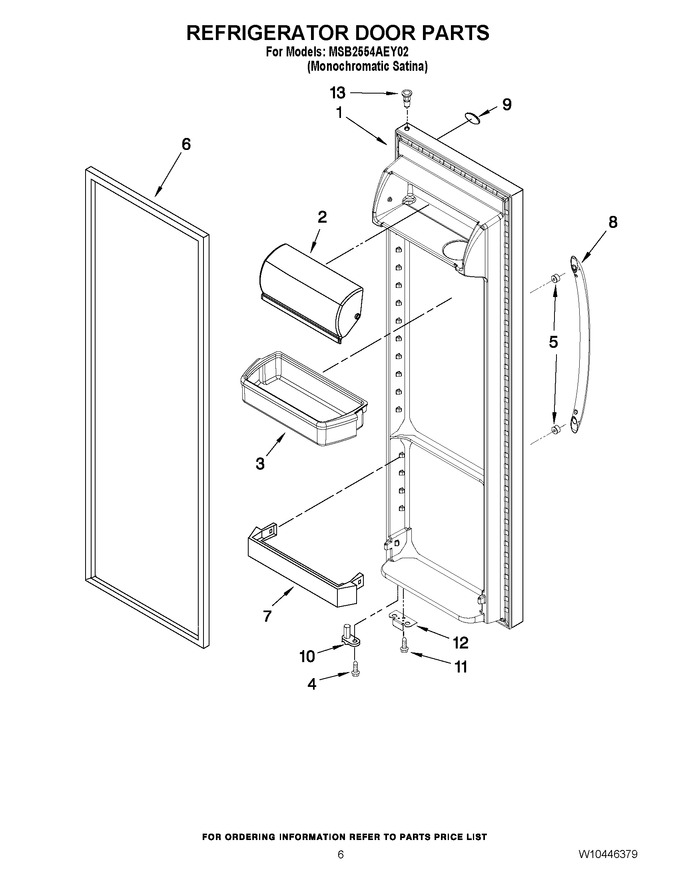

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10365662 | Refrigerator Door (includes Item No.6) (mono Satina) |
|
- | |||||
| 2 | WP2256101 | Compartment Door (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 3 | W10158506 | Shelf Bin (3) |
|
$ 109.63 | |||||
| 4 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 5 | WPW10170540 | Stud, Mounting (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 6 | WPW10136734 | Door Gasket, Magnetic (Replaces: 2327163) |
|
$ 301.85 | |||||
| 7 | WP2309941 | Trivet, Shelf (Replaces: 2309941) |
|
Immediately | $ 68.69 | ||||
| 8 | W11690159 | Handle (Replaces: 67006391) |
|
$ 156.38 | |||||
| 9 | WPW10170766 | Nameplate (Replaces: W10170766) |
|
Immediately | $ 63.45 | ||||
| 10 | WP2182179 | Door Closer Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 11 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | W10185570 | Bracket, Door Stop |
|
$ 11.59 | |||||
| 13 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 |
