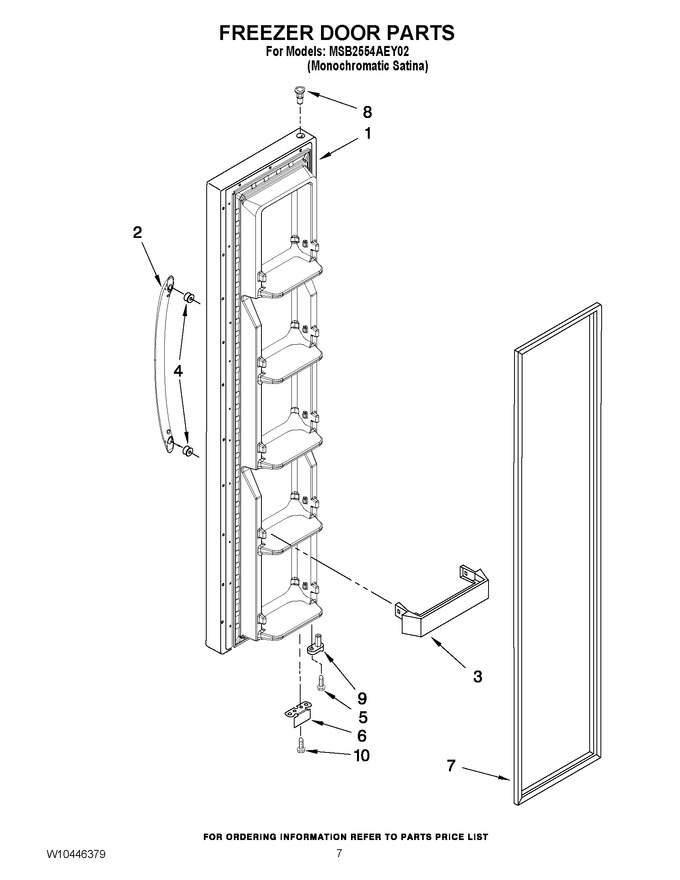

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | LW10365637 | Freezer Door (includes No.7 And Dispenser Front Parts) (mono Satina) (Replaces: W10365637) |
|
- | |||||
| 2 | W11690159 | Handle (Replaces: 67006391) |
|
$ 156.38 | |||||
| 3 | WP2309718 | Door Trim (6) (Replaces: 2309718) |
|
$ 55.34 | |||||
| 4 | WPW10170540 | Stud (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 5 | WP3400012 | Screw (Replaces: 3400012) |
|
$ 7.43 | |||||
| 6 | W10185566 | Bracket, Door Stop |
|
- | |||||
| 7 | W10136735 | Door Gasket, Magnetic (Replaces: 2327164) |
|
$ 283.96 | |||||
| 8 | WP2182181 | Thimble-top (Replaces: 2308091) |
|
$ 7.34 | |||||
| 9 | WP2182179 | Door Closer Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 | ||||
| 10 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 |
