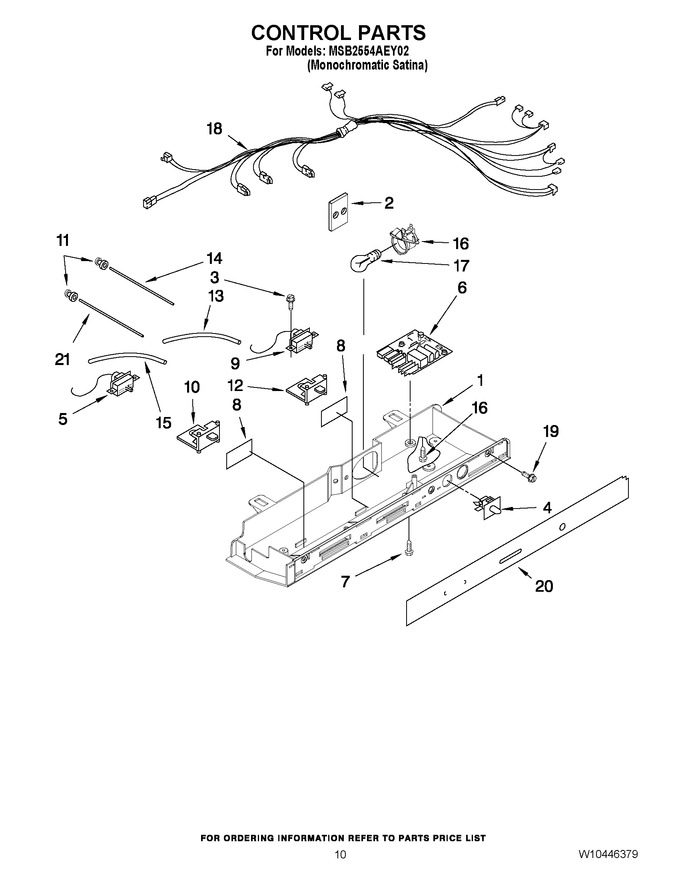

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	2200135		Control Box		Appelez-nous	-
2	W10173095		Heat Shield		Appelez-nous	-
3	2006254		Screw (2)   (Replaces: 489214)				$ 12.41
4	WP2149705		Switch, Light   (Replaces: 2321287)			Immediately	$ 41.09
5	WP2321289		Thermostat (fc)   (Replaces: 2321289)				$ 217.53
6	WP2188379		Control Board Assembly, Defrost   (Replaces: 2321261)				$ 182.76
7	489392		Screw (2)   (Replaces: 489398)				$ 12.62
8	2172940		Window		Appelez-nous	-
9	WP2321305		Thermostat (rc)   (Replaces: 2321305)				$ 228.45
10	2161466		Slide, Air Control				$ 20.05
11	2172906		Grommet, Light Bar (4)		Appelez-nous	-
12	2161466		Slide, Thermostat				$ 20.05
13	WP2196003		Tube, Barrier   (Replaces: 2182150)				$ 7.52
14	2179920		Light Bar (rc)				$ 37.08
15	WP2196003		Tube, Barrier   (Replaces: 2196003)				$ 7.52
16	W11447232		Light Socket   (Replaces: W10134764)			Immediately	$ 12.48
17	WP67002552		Light Bulb   (Replaces: 851682)			Immediately	$ 11.11
18	2200135		Control Box Harness		Appelez-nous	-
19	WPW10141645		Screw   (Replaces: 489084)				$ 7.25
20	W10239827		Escutcheon Control Box		Appelez-nous	-
21	2179921		Light Bar Fc		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
