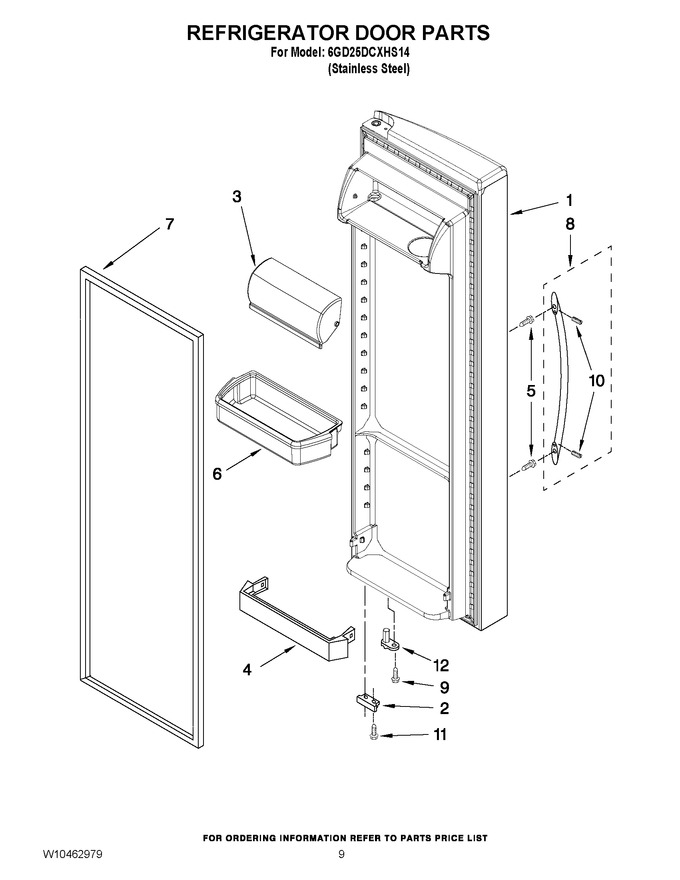

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10318397 | Refrigerator Door (includes Item 7) |
|
- | |||||
| 2 | W10219802 | Bracket, Door Stop |
|
$ 5.62 | |||||
| 3 | WP2256101 | Door, Compartment (Replaces: 2256101) |
|
Immediately | $ 80.48 | ||||
| 4 | WP2156022 | Trivet, Shelf (Replaces: 2156022) |
|
Immediately | $ 70.75 | ||||
| 5 | WPW10170540 | Screw 8-18 X .785 (Replaces: W10170540) |
|
Immediately | $ 8.69 | ||||
| 6 | WPW10321304 | Door Bin (Replaces: W10321303) |
|
Immediately | $ 40.46 | ||||
| 7 | 2159083 | Door Gasket Magnetic (Replaces: 2221313) |
|
$ 299.48 | |||||
| 8 | 2319727S | Handle (includes Item 10) |
|
$ 133.96 | |||||
| 9 | WP3400012 | Screw 10-32 X 1/2 (Replaces: 3400012) |
|
$ 7.43 | |||||
| 10 | W11366418 | Screw, Set 1/4-28 X .313 (Replaces: W10010140) |
|
Immediately | $ 16.59 | ||||
| 11 | WP489483 | Screw 10-32 X 1/2 (Replaces: 489420) |
|
$ 10.27 | |||||
| 12 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182178) |
|
Immediately | $ 6.48 |
