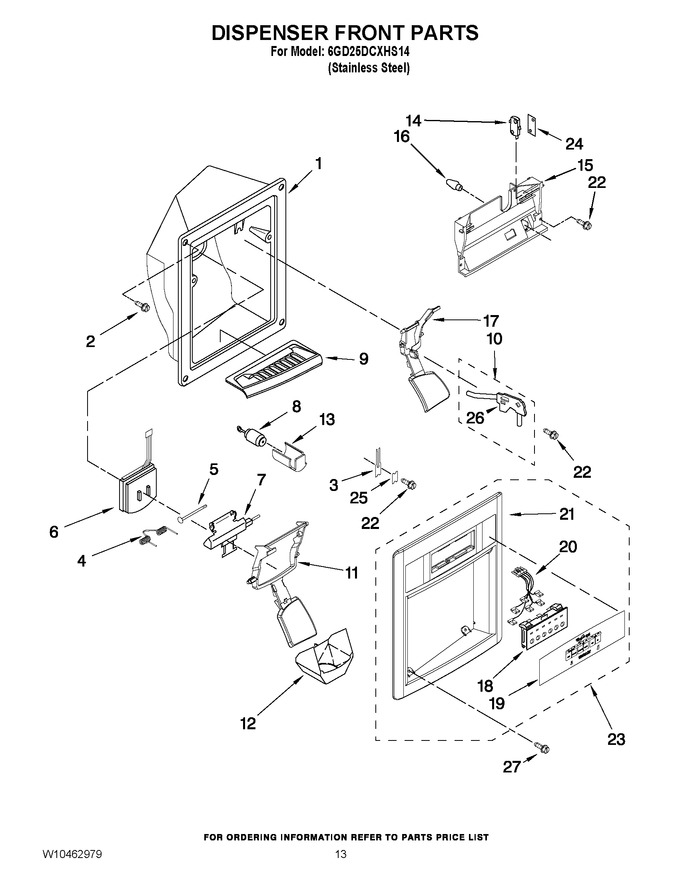

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	N/P		Housing, Dispenser (not Serviced)		Appelez-nous	-
2	WP3196557		Screw 8-18 X 3/8   (Replaces: W10142284)			Immediately	$ 7.16
3	WP2194719		Retainer, Levers   (Replaces: 2194719)			Immediately	$ 11.12
4	WPW10224328		Spring, Torsion   (Replaces: W10224328)				$ 78.66
5	WP2196195		Pin   (Replaces: 2196195)				$ 13.78
6	WP2180353		Door, Ice   (Replaces: 2180353)			Immediately	$ 24.15
7	2304355		Support, Ice Door		Appelez-nous	-
8	2205686		Mechanism Delay		Appelez-nous	-
9	WP2207007B		Grille, Overflow   (Replaces: W10323441)				$ 66.64
10	8201537		Water Fitting Assy (includes Water Tube & Item 26)   (Replaces: 2304317)				$ 126.76
11	WP2255431B		Lever, Ice Dispenser   (Replaces: 2255431B)				$ 99.62
12	WP2180224		Guide, Ice   (Replaces: 2180224)			Immediately	$ 27.02
13	2252127		Sleeve, Dashpot				$ 22.00
14	WP2162361		Switch   (Replaces: 2162361)			Immediately	$ 25.84
15	W10129975		Bracket, Control		Appelez-nous	-
16	W10159206		Bulb, Light		Appelez-nous	-
17	WP2255432B		Lever, Water Dispenser   (Replaces: 2255432B)				$ 100.22
18	N/P		Switch Assembly (not Available, Order Item 23)		Appelez-nous	-
19	N/P		Overlay, Front Cover (not Available, Order Item 23)		Appelez-nous	-
20	N/P		Wire Harness (not Available, Order Item 23)		Appelez-nous	-
21	N/P		Front Cover, Housing (not Available, Order Item 23)		Appelez-nous	-
22	WP3400906		Screw 9-12 X 1/2   (Replaces: W10141632)				$ 8.15
23	W10129872		Front Cover Assy (includes Items 18, 19, 20 & 21)		Appelez-nous	-
24	625834		Spacer, Switch				$ 7.99
25	WP2195051		Strain Relief   (Replaces: 2195051)				$ 11.29
26	WP2304673		Bracket, Dispenser   (Replaces: 2304673)				$ 14.74
27	WP3400065		Screw 10-16 X 1/2   (Replaces: 3400065)			Immediately	$ 7.36
