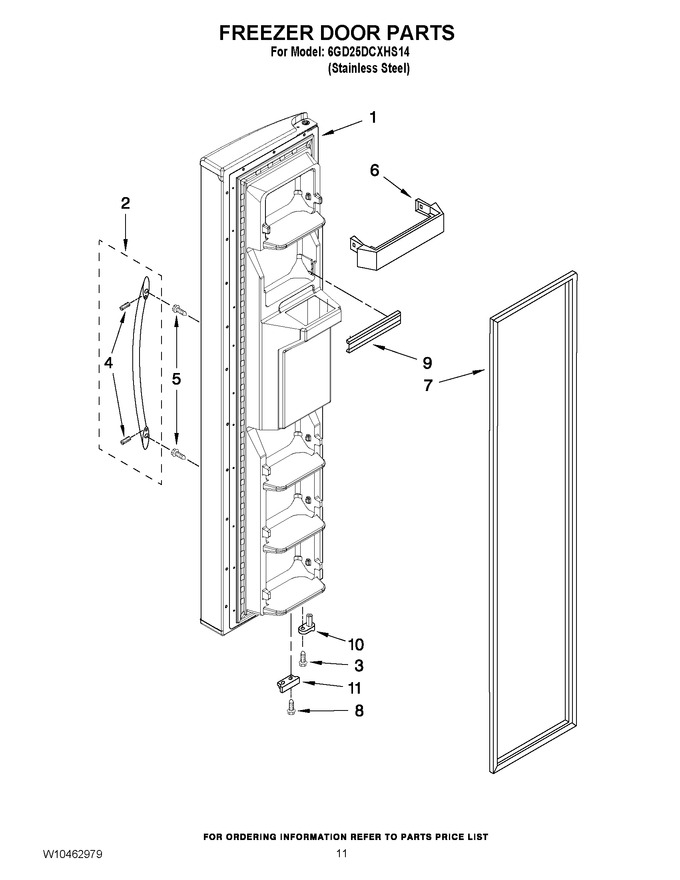

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10316004 | Freezer Door (includes Item 7 And Dispenser Front Parts) |
|
- | |||||
| 2 | 2319727S | Handle (includes Item 4) |
|
$ 133.96 | |||||
| 3 | WP3400012 | Screw 10-32 X 1/2 (Replaces: 3400012) |
|
$ 8.26 | |||||
| 4 | W11366418 | Screw, Set 1/4-28 X .313 (Replaces: W10010140) |
|
Immediately | $ 18.43 | ||||
| 5 | WPW10170540 | Screw 8-18 X .785 (Replaces: W10170540) |
|
Immediately | $ 9.66 | ||||
| 6 | WP2171157 | Trivet, Shelf (Replaces: 2171157) |
|
$ 63.70 | |||||
| 7 | 2159082 | Door Gasket, Magnetic (Replaces: 2221314) |
|
$ 332.49 | |||||
| 8 | WP489483 | Screw 10-32 X 1/2 (Replaces: 489420) |
|
$ 11.41 | |||||
| 9 | WPW10307490 | Trim, Door Shelf (Replaces: W10307490) |
|
Immediately | $ 24.27 | ||||
| 10 | WP2182179 | Door Closer, Upper Cam (Replaces: 2182179) |
|
Immediately | $ 7.20 | ||||
| 11 | W10219802 | Bracket, Door Stop |
|
$ 5.62 |
