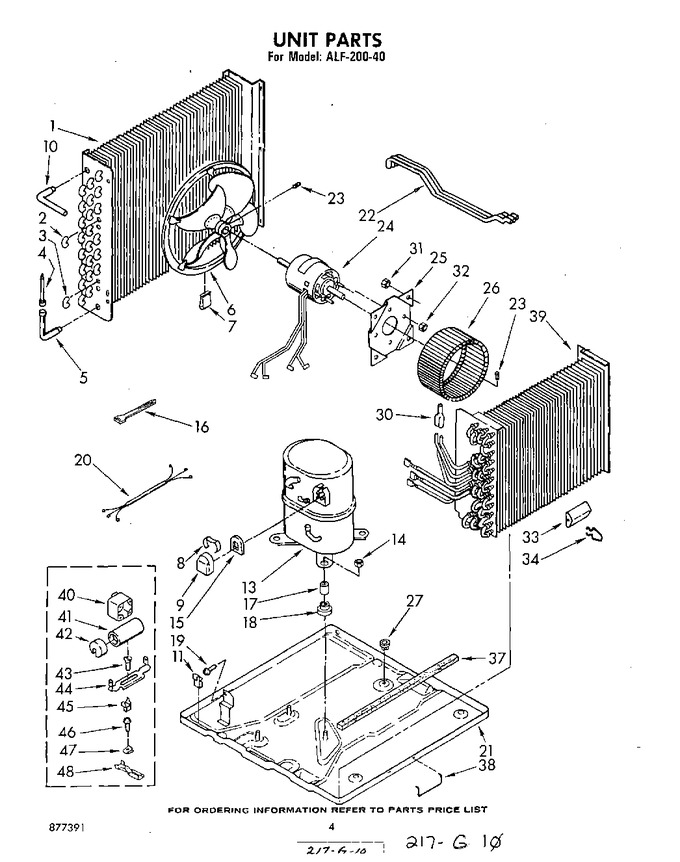

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 949077 | Condenser |
|
- | |||||
| 2 | 855199 | Bend, Return (22) Condenser |
|
- | |||||
| 3 | 997669 | Bend, Return (2) Condenser |
|
- | |||||
| 4 | 49599 | Strainer |
|
- | |||||
| 5 | 484230 | Tube & Strainer (includes Illus. 4) |
|
- | |||||
| 6 | 997226 | Blade, Fan |
|
- | |||||
| 7 | 485334 | Clip, Balancing |
|
- | |||||
| 8 | 475062 | Retainer, Terminal Cover |
|
- | |||||
| 9 | 855948 | Cover, Terminal |
|
- | |||||
| 10 | 649808 | Tube, 90~ Connect |
|
- | |||||
| 11 | 471088 | Clamp, Tube (2) |
|
- | |||||
| 13 | 484440 | Compressor |
|
- | |||||
| 14 | 858121 | Locknut (4) |
|
- | |||||
| 15 | 949083 | Gasket, Terminal |
|
- | |||||
| 16 | WPW10339879 | Tie, Cable (Replaces: 857547) |
|
$ 7.47 | |||||
| 17 | 858116 | Sleeve (4) |
|
- | |||||
| 18 | 475041 | Grommet (4) |
|
- | |||||
| 19 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 19 | WP308685 | Screw, 10 X 3/8 (repair) (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 20 | 484136 | Harness, Wiring |
|
- | |||||
| 21 | 997202 | Base |
|
- | |||||
| 22 | 948809 | Tube Restrictor (3) |
|
- | |||||
| 23 | 595085 | Setscrew, 5/16 X 1/4 |
|
- | |||||
| 24 | 997346 | Motor, Fan |
|
- | |||||
| 25 | 998024 | Plate, Fan Motor Mounting |
|
- | |||||
| 26 | 647618 | Wheel, Blower |
|
- | |||||
| 27 | 948130 | Bushing, Condensate |
|
- | |||||
| 30 | 947364 | Tube, Flow Divider |
|
- | |||||
| 31 | 858122 | Locknut (4) |
|
- | |||||
| 32 | WP488130 | Nut, 8-32 (Replaces: 488130) |
|
$ 6.59 | |||||
| 33 | 472046 | Anticipator |
|
- | |||||
| 34 | 472047 | Clip (2) |
|
- | |||||
| 37 | 853170 | Seal |
|
- | |||||
| 38 | 00647971 | Handle, Base (Replaces: 647971) |
|
$ 129.08 | |||||
| 39 | 948922 | Evaporator |
|
- | |||||
| 40 | 484177 | Relay |
|
- | |||||
| 41 | 47406 | Xcapacitor |
|
- | |||||
| 42 | 791868 | Xcap, Capacitor |
|
- | |||||
| 43 | 487880 | Xscrew, 10 X 5/8 (2) |
|
- | |||||
| 44 | 41629 | Xbracket |
|
$ 0.81 | |||||
| 45 | 90654 | Multiplier, Terminal |
|
- | |||||
| 46 | WP965173 | Xscrew, 8 X 3/8 (Replaces: 487869) |
|
Immediately | $ 10.68 | ||||
| 47 | 488660 | Xspeed Nut (Replaces: 486197) |
|
- | |||||
| 48 | 45571 | Xterminal, Flag |
|
- |
