02 - Cabinet
03 - Unit

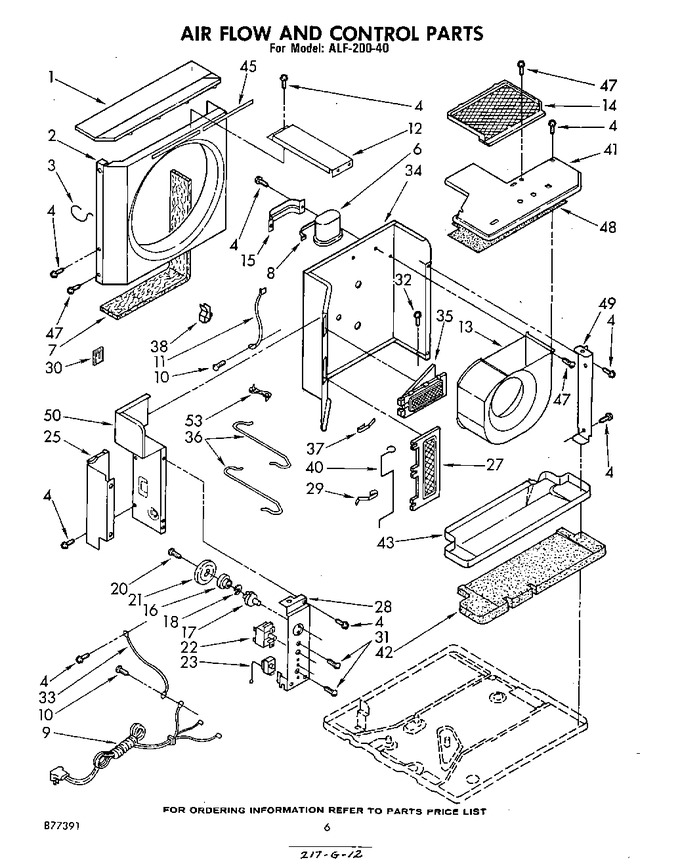

04 - Airflow And Control , Not Illustrat
05 - Accessory Kit
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | 997264 | Cover, Condenser Shroud |
|
- | |||||
| 2 | 997224 | Shroud, Condenser (requires Insulation No. 469938) |
|
- | |||||
| 3 | 477442 | Clip, Shroud (2) |
|
- | |||||
| 4 | WP308685 | Screw, Repair (Replaces: 488861) |
|
Immediately | $ 7.08 | ||||
| 4 | WP489069 | Screw, 8 X 1/2 (Replaces: 488480) |
|
Immediately | $ 7.56 | ||||
| 6 | 997354 | Capacitor, Running |
|
- | |||||
| 7 | 948600 | Seal, Condenser Fin |
|
- | |||||
| 8 | 475844 | Bracket |
|
- | |||||
| 9 | 649125 | Cable, Appliance |
|
- | |||||
| 10 | WPW10141604 | Screw, 8 X 3/8 (Replaces: 487871) |
|
$ 7.97 | |||||
| 11 | 998177 | Ground Wire |
|
- | |||||
| 12 | 997262 | Support, Unit |
|
- | |||||
| 13 | 997220 | Housing, Blower Wheel |
|
- | |||||
| 14 | 856506 | Guard, Evaporator Impeller |
|
- | |||||
| 15 | 852992 | Bracket |
|
- | |||||
| 16 | 647879 | Bushing |
|
- | |||||
| 17 | 852669 | Shaft, Control |
|
- | |||||
| 18 | 00647881 | Spring, Washer (Replaces: 647881) |
|
$ 366.51 | |||||
| 20 | 489092 | Screw, 8 X 1/2 |
|
- | |||||
| 21 | 647882 | Cam |
|
- | |||||
| 22 | 948306 | Switch, Rotary |
|
- | |||||
| 23 | 949297 | Control, Temperature |
|
- | |||||
| 25 | 997278 | Cover, Control Access |
|
- | |||||
| 27 | 997222 | Door, Fresh Air |
|
- | |||||
| 28 | 852217 | Panel, Control |
|
- | |||||
| 29 | 998178 | Spring, Fresh Air Door |
|
- | |||||
| 30 | 948520 | Seal, Evaporator Outlet Tube |
|
- | |||||
| 31 | 488734 | Screw, 6 X .175 |
|
- | |||||
| 32 | 488624 | Screw, 8 X 3/8 |
|
- | |||||
| 33 | 997388 | Ground Wire |
|
- | |||||
| 34 | 997208 | Wall, Dividing (requires Insulation No. 469938) |
|
- | |||||
| 35 | 997221 | Door, Exhaust |
|
- | |||||
| 36 | 859370 | Wire, Control (fresh Air) |
|
- | |||||
| 36 | 647883 | Wire, Control Exhaust |
|
- | |||||
| 37 | 859369 | Spring, Exhaust Door |
|
- | |||||
| 38 | 947072 | Clamp, Cable (2) |
|
- | |||||
| 40 | 997223 | Actuator, Door |
|
- | |||||
| 41 | 997269 | Cover, Evaporator (requires Insulation No. 469938) |
|
- | |||||
| 42 | 997237 | Insulation, Condensate Pan |
|
- | |||||
| 43 | 997238 | Pan, Condensate |
|
- | |||||
| 45 | 997266 | Seal, Condenser Cover (side) |
|
- | |||||
| 45 | WP854334 | Seal, Condenser Cover (rear) (Replaces: 997267) |
|
$ 12.55 | |||||
| 45 | 997265 | Seal, Condenser Cover (front) |
|
- | |||||
| 47 | WP488729 | Screw, 8 X 1/2 (Replaces: 487910) |
|
Immediately | $ 7.45 | ||||
| 48 | 948234 | Insulation, Evaporator Cover |
|
- | |||||
| 49 | 997239 | Adapter, Evaporator Header Plate |
|
- | |||||
| 50 | 997330 | Extension Assembly, Divider Wall |
|
- | |||||
| 53 | 877391 | List, Parts |
|
- | |||||
| 53 | 949753 | Guide, Consumer`s Buy |
|
- | |||||
| 53 | 947598 | Guide, Use & Care |
|
- | |||||
| 53 | 949752 | Guide, Energy |
|
- | |||||
| 53 | WP978025 | Valve, Access (1/4``) (Replaces: 978025) |
|
Immediately | $ 99.46 | ||||
| 53 | 648791 | Clamp, Cable |
|
- | |||||
| 53 | 978317 | Adhesive, To Attach Insulation (24 Oz.) |
|
- | |||||
| 53 | 212643 | Sealer, Gum (cabinets & Windows) (Replaces: 470168) |
|
Immediately | $ 86.78 | ||||
| 53 | 469938 | Insulation, Fiberglass (1/4`` X 24`` X 48``) |
|
- | |||||
| 53 | 997236 | Insulation, Base |
|
- | |||||
| 53 | 469939 | Insulation, Cabinet (5/8`` X 13`` X 25-11/16``) |
|
- | |||||
| 53 | 855438 | Insulation, Cabinet (top) |
|
- | |||||
| 53 | 998179 | Flange, Seal Packet |
|
- | |||||
| 53 | 484310 | Kit, Evaporator Repair (aluminum Epoxy) |
|
- | |||||
| 53 | 505168 | No Drip Tape (for Sweating Tubes) |
|
- | |||||
| 53 | 47261 | Wire, Black (25 Ft.) |
|
- | |||||
| 53 | 47262 | Wire, Red, (25 Ft.) |
|
- | |||||
| 53 | 47263 | Wire, White (25 Ft.) |
|
- | |||||
| 53 | 485426 | Lacquer, Starlite Gray (1/2 Pt. Uncut) |
|
- | |||||
| 53 | 799351 | Blend, Thinner (1 Gal.) |
|
- | |||||
| 53 | 10943 | Oil, Turbine 1 Fl. Oz. |
|
- | |||||
| 53 | 484069 | Cover, Winter |
|
$ 62.49 | |||||
| 53 | 485883 | Hard Start Kit |
|
- | |||||
| 53 | 484220 | Start Assist Kit |
|
- | |||||
| 53 | 978026 | Valve, Access (5/16``) |
|
Immediately | $ 121.04 | ||||
| 53 | SF5538 | Valve, Access (3/8``) (Replaces: 978027) |
|
$ 16.79 | |||||
| 53 | 978028 | Valve, Access (1/2) |
|
- | |||||
| 53 | 978029 | Valve Access (5/8``) |
|
$ 93.85 | |||||
| 53 | 978030 | Valve, Access (3/4``) |
|
$ 123.53 | |||||
| 53 | 997273 | Sheet, Tech |
|
- |
