SELECT A DIAGRAM

02 - Cabinet


03 - Unit


04 - Airflow And Control , Not Illustrat

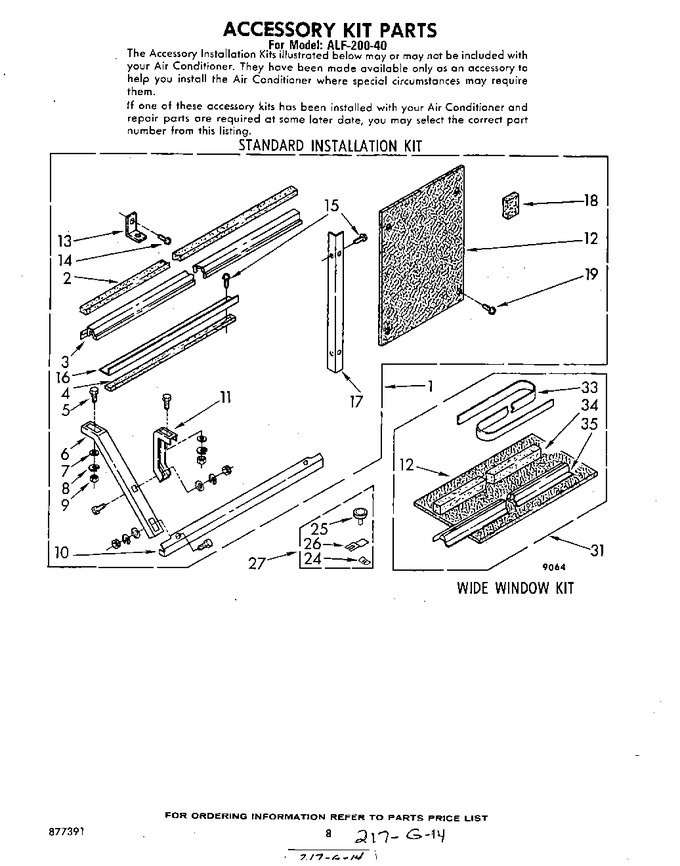

05 - Accessory Kit


Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	485854		Kit, Standard Installation		Appelez-nous	-
2	469877		Seal		Appelez-nous	-
3	644288		Gasket, Sash		Appelez-nous	-
4	855265		Strip, Seal		Appelez-nous	-
5	488750		Bolt, 1/4 X 3/4 (6)		Appelez-nous	-
6	649945		Support, Cabinet (2)		Appelez-nous	-
7	488808		Washer (6)		Appelez-nous	-
8	486009		Lockwasher (6)		Appelez-nous	-
9	486035		Nut, Hex (6)		Appelez-nous	-
10	649947		Bracket, Support		Appelez-nous	-
11	649946		Support, Retainer (2)		Appelez-nous	-
12	644303		Board, Filler		Appelez-nous	-
13	644228		Bracket		Appelez-nous	-
14	487371		Screw, 10 X 3/4		Appelez-nous	-
15	WP308685		Screw, 10 X 1/2   (Replaces: 488720)			Immediately	$ 7.08
16	644271		Angle, Top		Appelez-nous	-
17	644272		Angle (2)		Appelez-nous	-
18	995274		Spacer, Block (4)		Appelez-nous	-
19	WP965173		Screw, 8 X 3/8   (Replaces: 488017)			Immediately	$ 10.68
24	997286		Speed Nut		Appelez-nous	-
25	997285		Cup, Condensate		Appelez-nous	-
26	997284		Support, Cup		Appelez-nous	-
27	876135		Kit, Condensate Cup		Appelez-nous	-
31	485856		Kit, Wide Window		Appelez-nous	-
33	856979		Strip, Seal		Appelez-nous	-
34	470800		Seal, Meeting Rail		Appelez-nous	-
35	852908		Instructions, Installation (wide Window Standard Installation)		Appelez-nous	-
35	485457		Gasket, Sash (54``)		Appelez-nous	-

    View Diagram in Separate Window       Print Part List
