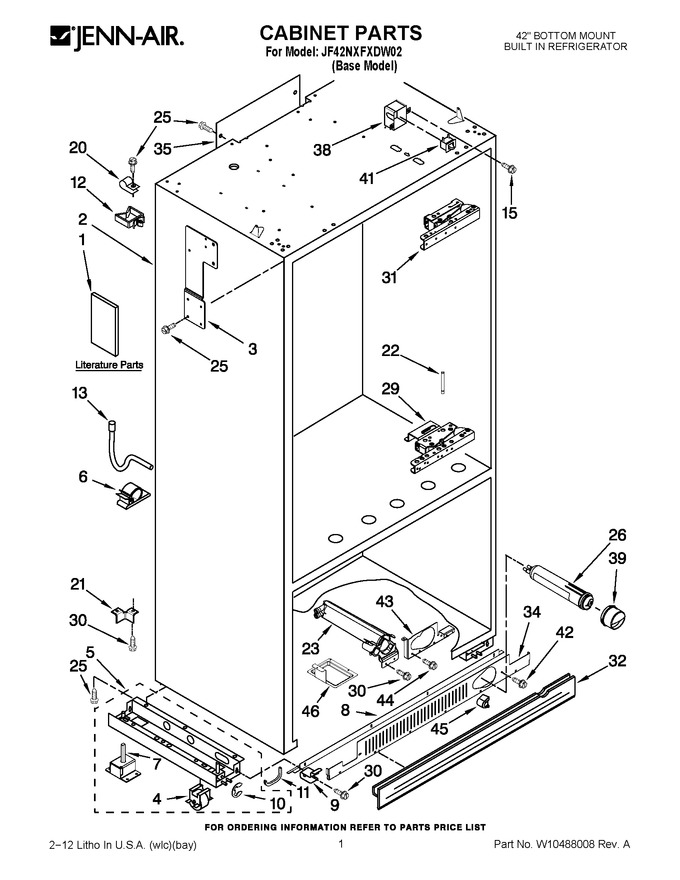

| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10303991 | Use & Care Guide |
|
- | |||||
| 1 | W10246796 | Energy Guide |
|
- | |||||
| 1 | W10234137 | Service & Wiring Sheet |
|
- | |||||
| 1 | W10234147 | Main Control Service Sheet |
|
- | |||||
| 1 | W10238179 | Installation Instructions |
|
- | |||||
| 2 | N/P | Cabinet (not A Serviceable Part) |
|
- | |||||
| 3 | W10188499 | Support, Grille (lh) |
|
$ 66.70 | |||||
| 3 | W10188500 | Support, Grille (rh) |
|
$ 104.30 | |||||
| 4 | WPW10138054 | Roller, Front & Rear (Replaces: W10138054) |
|
$ 40.81 | |||||
| 5 | W10860448 | Support, Leveler Assembly (rh) (Replaces: W10138423) |
|
Immediately | $ 344.70 | ||||
| 5 | W10860229 | Support, Leveler Assembly (lh) (Replaces: W10279275) |
|
$ 343.65 | |||||
| 6 | 2004514 | Clip, Conduit |
|
- | |||||
| 7 | 2005032 | Leveler Assy |
|
Immediately | $ 180.06 | ||||
| 8 | WPW10250962 | Grille Trim (top) (Replaces: W10250962) |
|
$ 120.25 | |||||
| 9 | W10839844 | Mounting Bracket, Grille (Replaces: 2307640) |
|
$ 38.93 | |||||
| 10 | 2006841 | Ring, Retainer |
|
$ 83.39 | |||||
| 11 | 2307584 | Grommet Crossover Tube |
|
$ 21.06 | |||||
| 12 | W10129069 | Clip |
|
- | |||||
| 13 | 2314064 | Tube, Drain |
|
$ 84.49 | |||||
| 15 | WP965173 | Screw, 8-18 X 3/8 (Replaces: 487415) |
|
Immediately | $ 10.68 | ||||
| 20 | W10331955 | Clamp, Tube |
|
- | |||||
| 21 | 2006617 | Bracket, Support Door |
|
- | |||||
| 22 | W10234202 | Stop, Door |
|
$ 82.56 | |||||
| 23 | WPW10121140 | Housing, Water Filter (Replaces: W10121140) |
|
Immediately | $ 243.77 | ||||
| 25 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 26 | EDR3RXD1B | Filter, Water (Replaces: 4396841) |
|
Immediately | $ 49.99 | ||||
| 29 | W10136731 | Hinge, Bottom Refrigerator Door |
|
$ 464.67 | |||||
| 30 | WP489464 | Screw 8-18 X 1/2 (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 31 | W10167398 | Hinge Door, Ref Top (lh) |
|
$ 367.15 | |||||
| 31 | W10167397 | Hinge Door, Ref Top (rh) |
|
$ 501.99 | |||||
| 32 | WPW10188549 | Skirt-grille, Bottom (Replaces: W10188549) |
|
$ 129.78 | |||||
| 34 | W11739146 | Grille Base, Front (Replaces: W10189198) |
|
$ 191.39 | |||||
| 35 | 2215612 | Cover, Air Duct |
|
- | |||||
| 38 | W10167387 | Cover, Switch (lh) |
|
$ 69.82 | |||||
| 38 | W10167341 | Cover, Switch (rh) |
|
$ 69.38 | |||||
| 39 | WP2260518B | Cap, Water Filter (Replaces: 2260518B) |
|
Immediately | $ 30.56 | ||||
| 41 | W11384469 | Switch, Rocker Arm (Replaces: C3680314) |
|
Immediately | $ 35.18 | ||||
| 42 | WP489464 | Screw, 8-18 X 1/2 (Replaces: W10005050) |
|
Immediately | $ 7.54 | ||||
| 43 | W11755873 | Bracket, Mounting (filter) (Replaces: W10348782) |
|
$ 72.30 | |||||
| 44 | WP8281163 | Screw, 8-16 X 1/2 (Replaces: 8281163) |
|
Immediately | $ 9.63 | ||||
| 45 | WP2260503B | Button, Filter (Replaces: 2260503B) |
|
$ 68.78 | |||||
| 46 | 2318189 | Tray, Drip Filter |
|
$ 133.86 |
