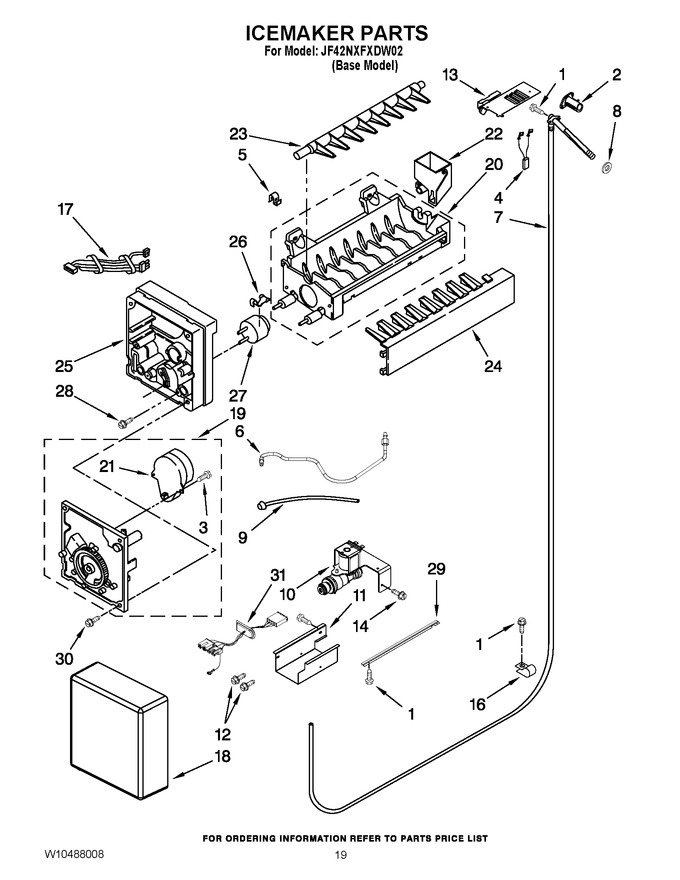

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W11624204 | Screw (Replaces: 486194) |
|
$ 13.25 | |||||
| 2 | WP2221240 | Heater, Fill Tube (Replaces: 2221240) |
|
$ 185.92 | |||||
| 3 | 489136 | Screw |
|
$ 9.72 | |||||
| 4 | 2310108 | Jumper, Heater Fill Tube |
|
- | |||||
| 5 | WP628379 | Clip, Fuse (Replaces: 628379) |
|
$ 9.99 | |||||
| 6 | W11565275 | Tube, Filter Inlet (Replaces: W10296807) |
|
$ 61.10 | |||||
| 7 | 2317847 | Tube Assembly, Water Inlet |
|
$ 77.72 | |||||
| 8 | WP1106508 | Seal Gasket (Replaces: 1106508) |
|
Immediately | $ 9.39 | ||||
| 9 | W11533506 | Tube, Filter Outlet (Replaces: 2317912) |
|
$ 29.84 | |||||
| 10 | WP2307650 | Valve, Solenoid (Replaces: 2307650) |
|
Immediately | $ 228.29 | ||||
| 11 | W10129653 | Shield, Valve |
|
- | |||||
| 12 | WP489464 | Screw (Replaces: W10001250) |
|
Immediately | $ 7.54 | ||||
| 13 | WP2221231 | Heat Shield (Replaces: 2221231) |
|
$ 80.40 | |||||
| 14 | WP489069 | Screw, 8-18 X 1/2 (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 16 | 488946 | Clamp, Tubing |
|
$ 19.32 | |||||
| 17 | 2310136 | Wire Harness, Icemaker |
|
$ 160.82 | |||||
| 18 | WPW10289690 | Cover (Replaces: W10289690) |
|
$ 7.94 | |||||
| 19 | 8201515 | Module Assembly (includes Items 3 & 21) (Replaces: 626691) |
|
Immediately | $ 143.80 | ||||
| 20 | WPW10190929 | Mold & Heater (also Order 542638 Silicone Grease) (Replaces: W10122527) |
|
$ 210.17 | |||||
| 21 | 8201515 | Motor (Replaces: 626683) |
|
Immediately | $ 143.80 | ||||
| 22 | W11676540 | Cup, Water Fill (Replaces: W10435665) |
|
$ 20.39 | |||||
| 23 | WP627843 | Ejector (Replaces: 627843) |
|
$ 79.00 | |||||
| 24 | WPW10122563 | Ice Stripper (Replaces: W10122563) |
|
$ 89.48 | |||||
| 25 | WP2195914 | Support (Replaces: 2194712) |
|
$ 98.82 | |||||
| 26 | WP2315522 | Retainer Thermostat (Replaces: 2315522) |
|
$ 10.44 | |||||
| 27 | WP627985 | Thermostat (also Order 542639 Cement Alumilastic) (Replaces: 627985) |
|
$ 103.18 | |||||
| 28 | 8533917 | Screw |
|
$ 12.64 | |||||
| 29 | 2320559 | Support, Valve |
|
$ 79.91 | |||||
| 30 | WP681249 | Screw (Replaces: 489276) |
|
Immediately | $ 7.43 | ||||
| 31 | W10279393 | Wire Assembly (water Valve) |
|
$ 141.36 | |||||
| 100 | WPW10277450 | Complete Icemaker Assembly (Replaces: W10277450) |
|
Immediately | $ 253.31 | ||||
| NI | W10355010 | Affresh Kitchen Appliance Cleaner |
|
- | |||||
| NI | W11175806 | Install Kit (Replaces: W10249830) |
|
$ 251.66 | |||||
| NI | W10234156 | Block, Install Templates, Wood Panels |
|
$ 15.09 | |||||
| NI | W10222279 | Bm |
|
- | |||||
| NI | W10222283 | Grille |
|
$ 51.27 | |||||
| NI | W10355016 | Affresh Stainless Steel Cleaner |
|
- | |||||
| NI | W10355049 | Affresh Stainless Steel Wipes |
|
$ 7.91 | |||||
| NI | REFDEODOR | Deodorizer Pack |
|
- |
