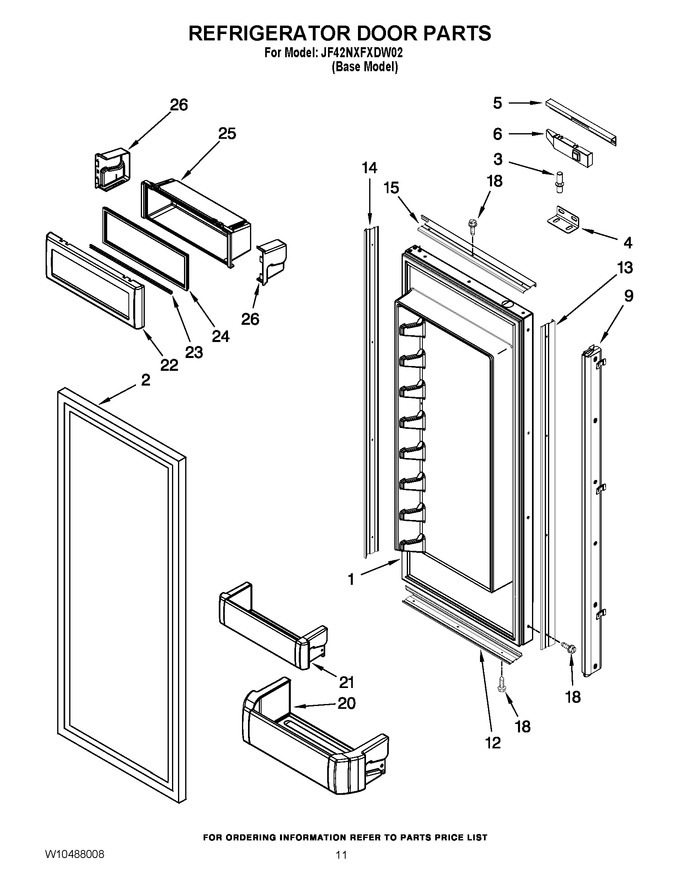

SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | W10138419 | Door, Refrigerator (includes Item 2) (rh) |
|
- | |||||
| 1 | W10138417 | Door, Refrigerator (includes Item 2) (lh) |
|
- | |||||
| 2 | 8201809 | Gasket, Door (Replaces: 2268265) |
|
Immediately | $ 286.71 | ||||
| 3 | W10234194 | Pin-door, Top |
|
$ 15.89 | |||||
| 4 | W10199955 | Bracket, Mounting |
|
$ 84.49 | |||||
| 5 | W10202511 | Cover-door, Top (lh) |
|
$ 103.27 | |||||
| 5 | W10202510 | Cover-door, Top (rh) |
|
$ 99.02 | |||||
| 6 | W10197766 | Insert-door, Arm (bottom) |
|
$ 15.53 | |||||
| 6 | W10197748 | Insert-door, Arm (top) |
|
$ 16.95 | |||||
| 9 | W10188592 | Door, Mullion |
|
$ 238.65 | |||||
| 12 | WPW10202474 | Trim-door, Bottom (lh) (Replaces: W10202474) |
|
$ 100.75 | |||||
| 12 | W10202473 | Trim-door, Bottom (rh) |
|
- | |||||
| 13 | W10202478 | Trim-door, Side (handle Side) (rh) |
|
$ 115.91 | |||||
| 13 | WPW10202480 | Trim-door, Side (handle Side) (lh) (Replaces: W10202480) |
|
$ 159.87 | |||||
| 14 | W10202476 | Trim-door, Side (hinge Side) |
|
- | |||||
| 15 | W10202471 | Trim-door, Top (rh) |
|
$ 150.00 | |||||
| 15 | WPW10202472 | Trim-door, Top (lh) (Replaces: W10202472) |
|
$ 188.22 | |||||
| 18 | W10825422 | Screw, 8-15 X 1/2 (Replaces: 8281251) |
|
$ 10.22 | |||||
| 20 | W10323746 | Shelf, Door (gallon) |
|
$ 97.42 | |||||
| 21 | W10323598 | Shelf, Door |
|
$ 94.31 | |||||
| 22 | WPW10131132 | Door, Utility Bin (Replaces: W10131132) |
|
$ 68.23 | |||||
| 23 | 2222795 | Rail, Lid |
|
$ 75.70 | |||||
| 24 | WP2222981 | Gasket, Utility Bin (Replaces: 2222981) |
|
$ 192.96 | |||||
| 25 | WPW10323035 | Bin, Utility (Replaces: W10323035) |
|
$ 76.44 | |||||
| 26 | WPW10323172 | End Cap, Utility Bin (rh) (Replaces: W10323172) |
|
$ 7.74 | |||||
| 26 | WPW10323173 | End Cap, Utility Bin (lh) (Replaces: W10323173) |
|
$ 7.74 |
