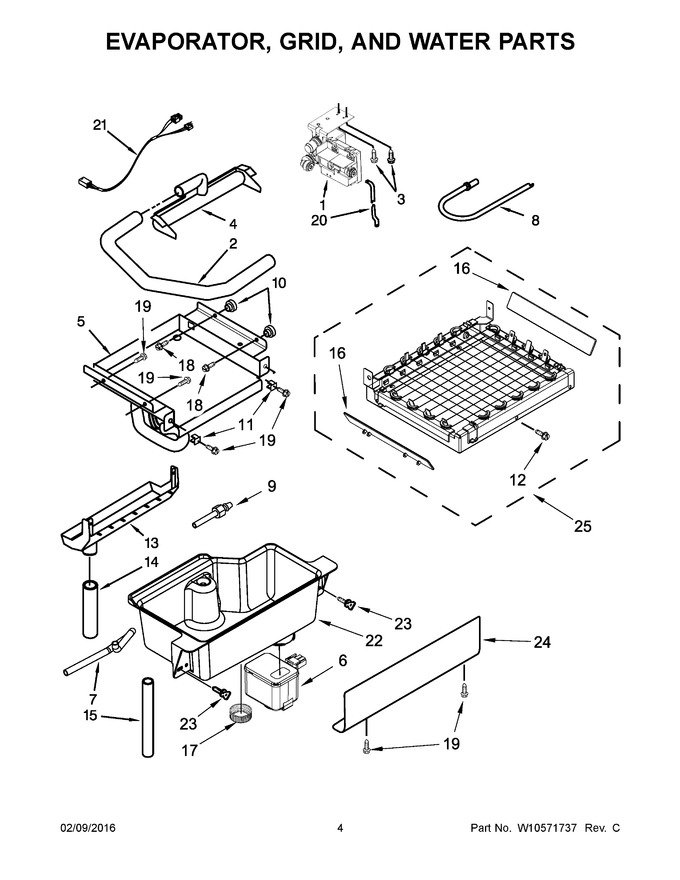

Diagram #	Part Number		Description	Series	Availability	Ships	Price	Add to Cart
1	WPW10340983		Smart Valve, Electronic   (Replaces: W10340983)				$ 297.49
2	W10863947		Tube, Plastic   (Replaces: 2217286)				$ 78.70
3	WP488163		Screw   (Replaces: 488208)				$ 7.13
4	W10863947		Dispenser, Water   (Replaces: 2185523)				$ 78.70
5	WPW10218037		Evaporator   (Replaces: W10218037)				$ 503.87
6	W11566407		Pump, Drain   (Replaces: 2313705)			Immediately	$ 127.24
7	2313851		Tube, Reservoir Pump				$ 46.00
8	WPW10418868		Tube, Water Fill   (Replaces: W10418868)				$ 69.50
9	W10464829		Tube, Plug		Appelez-nous	-
10	836667		Spacer		Appelez-nous	-
11	WP3400909		Grommet, Screw   (Replaces: 3400909)				$ 7.15
12	WP489443		Screw (stainless)   (Replaces: 489443)			Immediately	$ 7.50
13	WP2185625		Reservoir, Water Slide   (Replaces: 2185625)				$ 169.51
14	WP2185626		Tube   (Replaces: 2185626)				$ 99.74
15	WP2313890		Hose, Overflow   (Replaces: 2313890)				$ 71.88
16	2313604		Guide, Ice		Appelez-nous	-
17	W11023835		Cap, Drain   (Replaces: W10503850)				$ 29.79
18	3400886		Screw (stainless)				$ 5.65
19	WP3400884		Screw (stainless)   (Replaces: 3400884)				$ 7.29
20	WPW10217922		Tube, Water Inlet   (Replaces: W10437855)				$ 142.62
21	WP2310169		Assembly, Smart Valve Wire   (Replaces: 2310169)				$ 117.72
22	WP2324334		Reservoir, Water   (Replaces: 2324334)				$ 183.51
23	8281228		Thumbscrew		Appelez-nous	-
24	2185570		Cover, Grid				$ 95.29
25	WP2313637		Grid Assembly (includes Wire Harness)   (Replaces: W10536696)				$ 345.86
