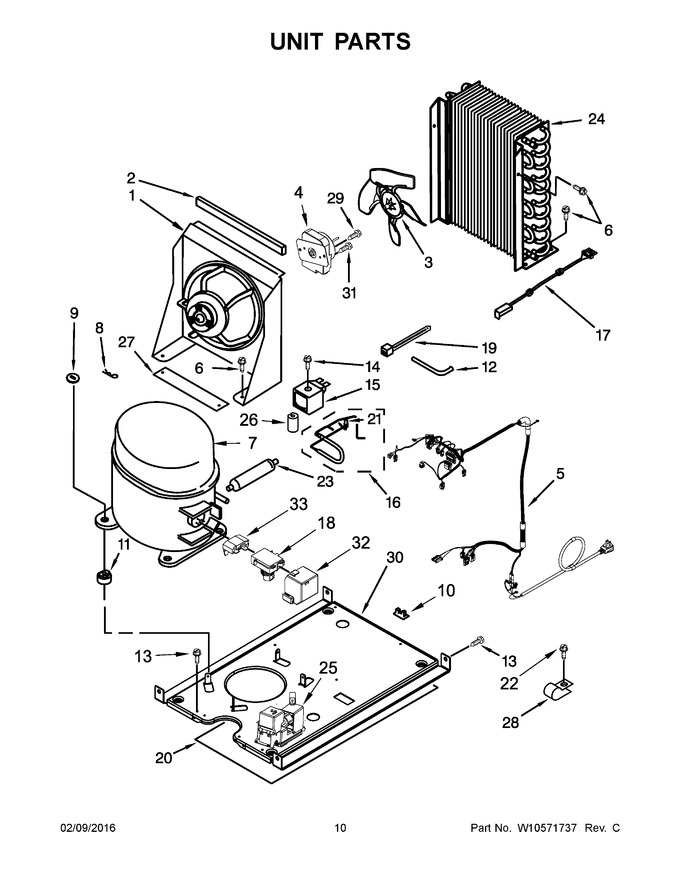

01 - Cover Sheet
02 - Cabinet Liner And Door Parts
03 - Evaporator, Grid, And Water Parts
04 - Pump Parts
05 - Control Panel Parts
06 - Unit Parts
07 - Optional Parts
SELECT A DIAGRAM
New Model Search:
| Diagram # | Part Number | Description | Series | Availability | Ships | Price | Add to Cart | ||
|---|---|---|---|---|---|---|---|---|---|
| 1 | WP2185532 | Bracket, Fan Mounting (Replaces: 2185532) |
|
$ 91.96 | |||||
| 2 | 2185675 | Pad, Foam |
|
- | |||||
| 3 | WP2188935 | Blade, Fan (Replaces: 2188935) |
|
Immediately | $ 87.56 | ||||
| 4 | W10124096 | Assembly, Motor And Mounting Plate (Replaces: 2315558) |
|
Immediately | $ 146.83 | ||||
| 5 | W10483743 | Wiring Harness, Complete Unit (includes Power Cord) |
|
$ 174.02 | |||||
| 6 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 7 | W11735041 | Compressor (Replaces: W10536005) |
|
$ 607.71 | |||||
| 8 | A201435 | Clip, Compressor Mounting |
|
- | |||||
| 9 | A201441 | Shim |
|
$ 8.33 | |||||
| 10 | 1115375 | Clip, Wiring |
|
$ 11.15 | |||||
| 11 | 2185965 | Grommet, Compressor (Replaces: 2217318) |
|
- | |||||
| 12 | W10528572 | Tube, Process |
|
$ 34.91 | |||||
| 13 | WP489483 | Screw (Replaces: 489420) |
|
$ 10.27 | |||||
| 14 | 489472 | Screw |
|
- | |||||
| 15 | WPW10206473 | Coil, Solenoid (Replaces: W10206473) |
|
$ 175.00 | |||||
| 16 | W11748341 | Valve, Hot Gas (Replaces: W10534030) |
|
Immediately | $ 91.69 | ||||
| 17 | WP2187629 | Jumper, Wire (condenser Fan) (Replaces: 2187629) |
|
$ 119.32 | |||||
| 18 | WP2217224 | Device, Start (Replaces: 2217224) |
|
Immediately | $ 94.34 | ||||
| 19 | W11456069 | Clamp, Cable (Replaces: 2185788) |
|
Immediately | $ 20.16 | ||||
| 20 | W10282061 | Shield, Heat |
|
- | |||||
| 21 | WP759113 | Body, Solenoid Valve (Replaces: 759113) |
|
$ 293.73 | |||||
| 22 | WP489069 | Screw (Replaces: 304392) |
|
Immediately | $ 7.56 | ||||
| 23 | W10843121 | Drier (Replaces: W10183199) |
|
Immediately | $ 51.42 | ||||
| 24 | WP2313624 | Condenser (Replaces: 2313624) |
|
$ 329.73 | |||||
| 25 | W11539855 | Assembly, Drain Pump (Replaces: W10122062) |
|
Immediately | $ 566.78 | ||||
| 26 | W10852725 | Grommet, Condenser (Replaces: 2319835) |
|
$ 7.28 | |||||
| 27 | 2217397 | Pad, Foam |
|
- | |||||
| 28 | 2185960 | Clamp, Power Cord |
|
- | |||||
| 29 | 8281197 | Screw |
|
- | |||||
| 30 | 2217445 | Base, Unit |
|
- | |||||
| 31 | WP8281196 | Screw (Replaces: 8281196) |
|
Immediately | $ 6.80 | ||||
| 32 | WP2162358 | Cover, Terminal (Replaces: 2208371) |
|
$ 85.76 | |||||
| 33 | WP2217223 | Protector, Overload (Replaces: 2217223) |
|
$ 128.44 | |||||
| NI | N/P | Refrigerant Charge 6.2 Oz. (r-134a) |
|
- |
